WEGeuro - Indústria Eléctrica, S.A. Português - English
39
the storage conditions shall be evaluated and corrected, where necessary. Check the
measuring procedures in section 6 of this Instructions Manual.

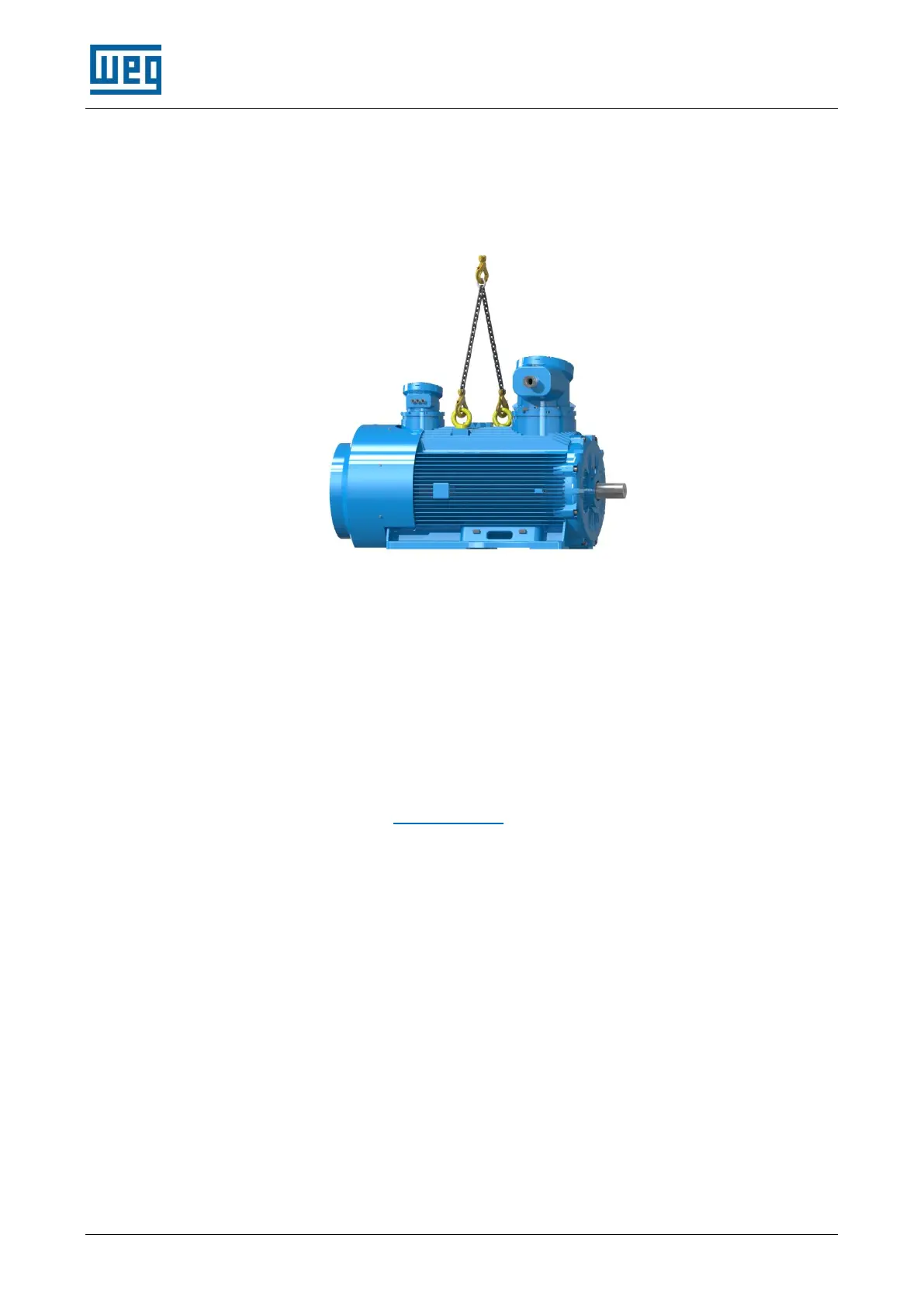

4.12 The lifting of the motor shall be made by using the eyebolts as shown in the picture:
4.13 Eyebolts provided on the frame are designed for lifting the machine only. Do not
use these eyebolts for lifting the motor with coupled equipment such as bases, pulleys,
pumps, reducers, etc. Never use damaged, bent or cracked eyebolts. Always check
the eyebolt condition before lifting the motor. Eyebolts mounted on components, such
as on end shields, forced ventilation kits, etc. must be used for lifting these
components only. Do not use them for lifting the complete machine set. For the
maximum allowed angle-of-inclination during the lifting please read the General
Instructions Manual available on www.weg.net.
5. INSTALLATION
5.1 The motor must be disconnected from the power supply and be completely stopped
before conducting any installation or maintenance procedures. Additional measures
shall be taken to avoid accidental motor starting. Check the direction of motor rotation,
starting the motor at no-load before coupling it to the load.
5.2 The type of protection and the Equipment Protection Level (EPL) indicated on the
motor nameplate must be respected considering the explosive atmosphere where the
motor will be installed.
5.3 Remove the shaft locking device (if any).
