Wega ALE Use And Maintenance Manual

TECHNICIANS' manual 55 of 100

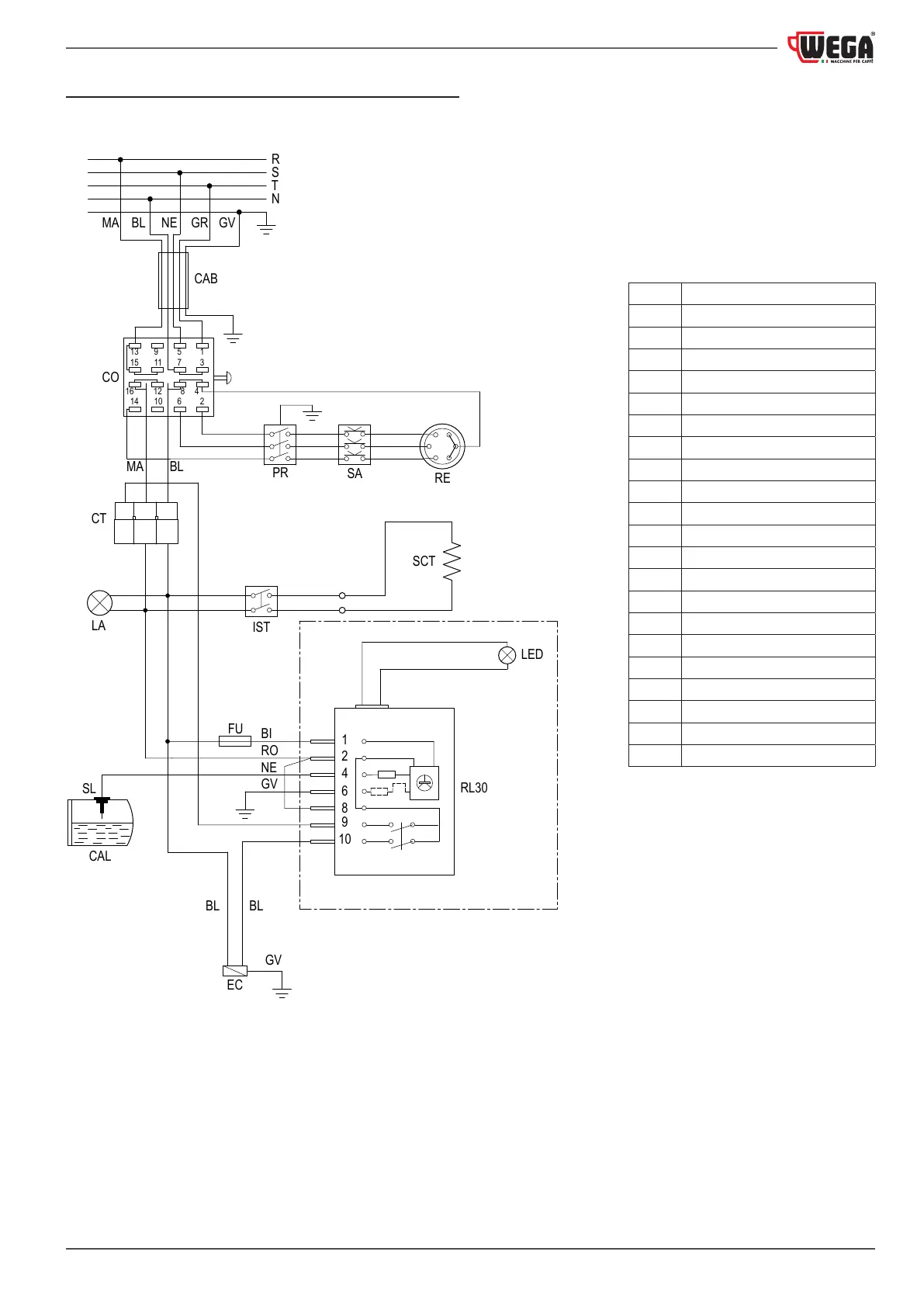

12.3 ALE - EMA version
LED
BI
FU
RO
NE
GV
1
2
4
6
8
9
10
RL30
BL
GV
EC
BL
CAL
SL
13
9
5
1
3
7
11
15
16
12
8
4
2
6
10
14
SCT
LA
CT
IST
PR
SA
CO
RE
R
S
T
N
MA
BL
NE
GR
GV
CAB
MA
BL
BI White
BL Blue
CAB Power cable
CAL Heating unit
CO Power switch
CT Power supply connector
EC
Heating unit lling solenoid valve
FU Fuse
GR Grey
GV Yellow-green
LED Timeout LED
IST Cup warmer switch
LA Indicator light
MA Brown
NE Black
RO Red
PR Pressure switch
RE Heating element
RL30 AEA control unit (optional)
SA Safety heating element
SL Heating unit level probe
VE Green

Wega ALE Specifications

General

Brand	Wega
Model	ALE
Product Type	Commercial Espresso Machine
Material	Stainless Steel
Type	Espresso Machine
Number of Groups	1, 2
Features	Manual
Capacity	3.5 liters
