Wega LB 4100 - PUSH-BUTTON PANEL

English
23
espresso coffee machine - user instructions

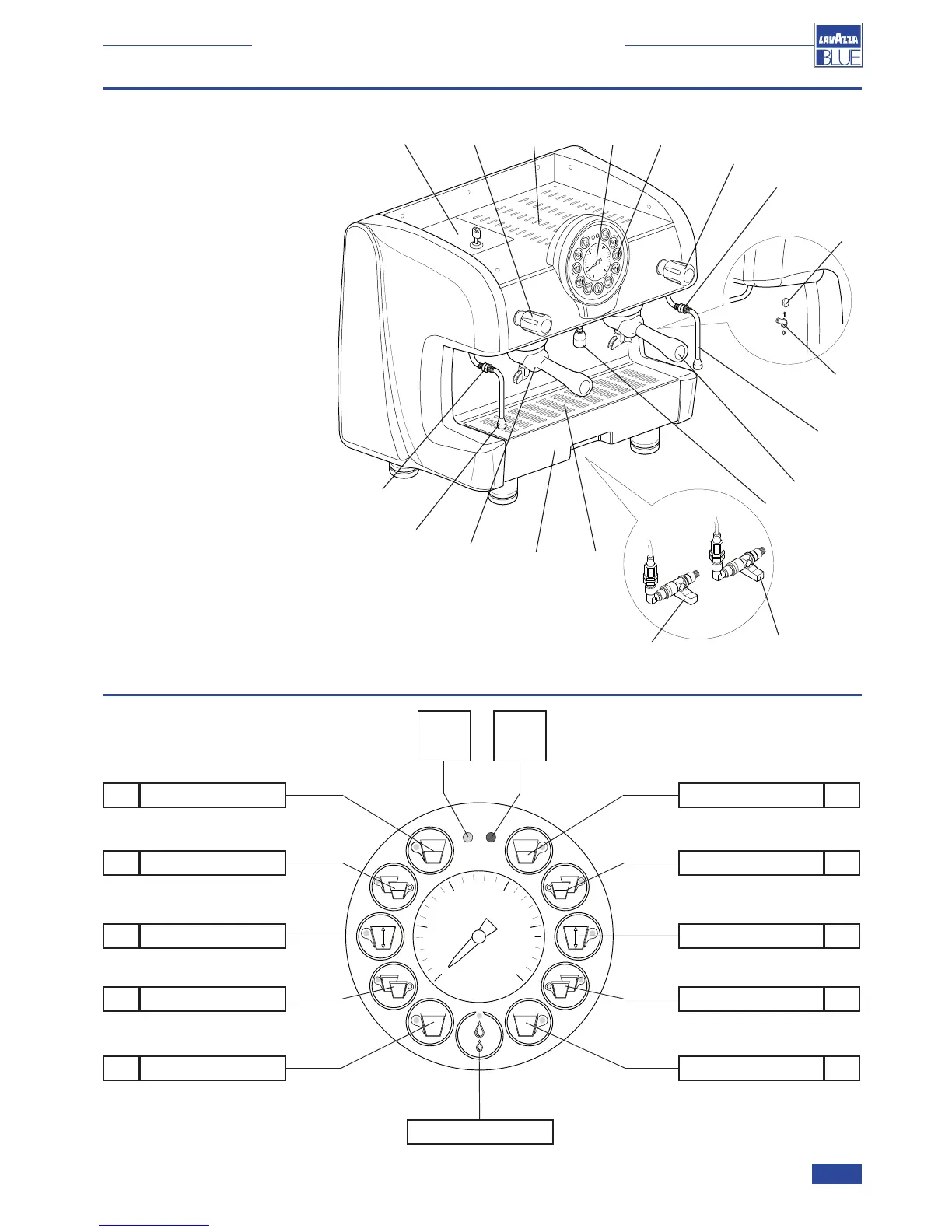

1. GENERAL DESCRIPTION
1 Internal water tank door
2 Cappuccino maker knob
3 Cup heater surface
4 Boiler pressure gauge
5 Push-button panel
6 Steam knob
7 Anti-burn rubber
8 Mains indicator light
9 Main switch
10 Steam nozzle
11 2-Cup spout filter holder
12 Hot water nozzle
13 Tap breather right
14 Tap breather left
15 Cup support grille
16 Drainage tray
17 1-Cup spout filter holder
2. PUSH-BUTTON PANEL
0
bar
0,5
1
1,5
2
2,5
1 Espresso 1 Espresso
6 1
7 2
8
9
3
4
10 5
2 Espressos 2 Espressos
Manual dispensing
2 Long coffees
Manual dispensing
2 Long coffees
1 Long coffee 1 Long coffee
Hot water
Green
indicator
light
Red
indicator
light
LEFT GROUP RIGHT GROUP
10
9
1345
8
6
2
11
13
14
17
10
7
12
15
16
7
