Wega SPHERA Series User Manual

62 of 68
TECHNICIANS manual

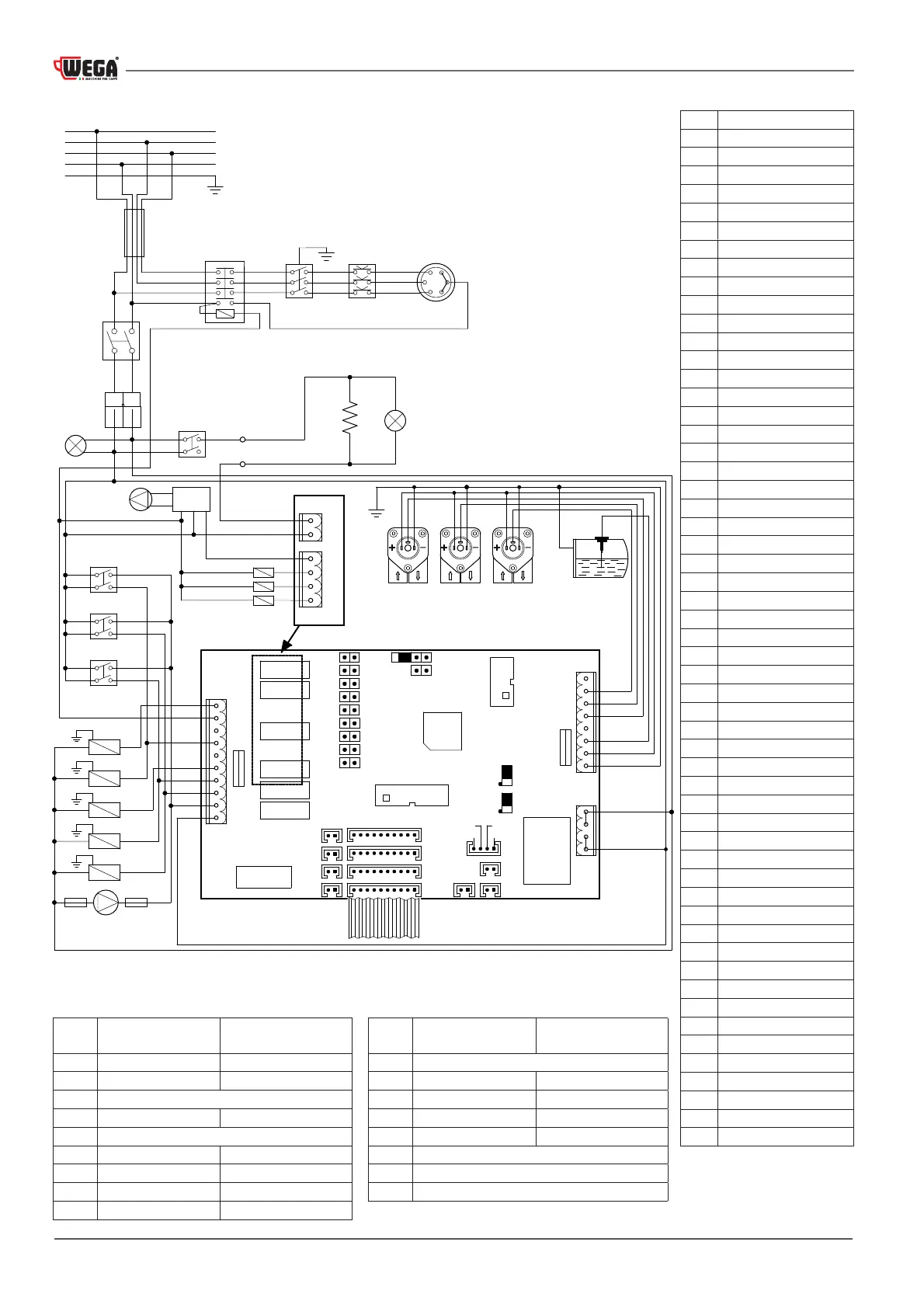

14.7.12 Wiring diagram cod. WY18090051 - WY18090052
SL
NE
BL
NE
MA
MA
MA
RO
BL
VE
VE
VE
VE
CV3CV2CV1
CN2
F2
CN5
TRF1
CN1
CN4
JP3
JP7
JP4
JP6
IC9
JP8
JP16
JP1
JP17
JP18
JP2
JP9
JP15
CN12
CN11
JP5
CN10
RL9
F1
CN14
CN3
JP10
GND
RX
+5V
TX
CN16
CN15
CN17
RL8
RL6
RL4
RL3
RL2
CN13
RL1
JP12
JP14
MB
VE
CN18
VE
BL
VE
BL
VE
BL
RO
RO
RO
RO
RO
RO
BI
RO
CN20
CN19
RO
BL
CT
SCT
IST
LA
LST
PR
SA
RE
400V
TLR
IG
R
S
T
N
MA
BL NE GR
CAB
MA
BL
PL
APL
CPL
EVCAP
EVV
EVA
CAL
IM1
IM2
IM3
EVT
EV1
EVC
EV3
EV2
MP
GV
FP1FP2
OOO
1
3
5
13
2
4
6
14
L1
L2
L3
NO
T1
T2
T3
NO
A1 A2
APL Milk pump supply
BI White
BL Blue
CAB Power cable
CAL Boiler
CN1 Supply connector
CN2 Low voltage connector
CN3 Link connector display diag.
CN4 Serial transmission connector
CN5 Programm. connector ISP
CN10
Push button panel connector GR1
CN11 Push button panel connector GR2
CN12 Push button panel connector GR3
CN13 Autosteamer/capp. connector
CN14 Service outputs connector
CN16 NTC steam connector
CN17 NTC boiler connector
CN18 NTC cup heater connector
CPL Milk pump control
CT Supply connector
CV1 Volumetric counter GR1
CV2 Volumetric counter GR2
CV3 Volumetric counter GR3
EV1 Solenoid valve GR1
EV2 Solenoid valve GR2
EV3 Solenoid valve GR3
EVA Air solenoid valve
EVC Boiler lling solenoid valve
EVCAP Cappuc. mak. solenoid valve
EVT Tea solenoid valve
EVV Steam solenoid valve
F1 Inlet fuse (6.3A)
F2 Motor pump fuse (500mA)
FP1(*) UL (OPD) Motor pump fuse
FP2(*) UL (OPD) Fuse for 230V
GR Grey
GV Yellow-green
IC9 Microprocessor
IG Main switch
IM1 GR1 manual switch
IM2 GR2 manual switch
IM3 GR3 manual switch
IST Cup heater switch
LA Indicator light
MA Brown
MP Motor pump
NE Black
PL Milk pump
PR Pressure switch
RE Resistance
RO Red
SA Resistance safety device
SCT Cup heater heating element
TLR Remote switch
TRF1 Transformer
VE Green
(
*
) Fuses for UL versions with plug with
a greater capacity than 30A
JUMPER INSERTED NOT INSERTED
JP1 Serial transmission enabled Serial transmission disabled
JP2 Not managed Not managed
JP3 Programming key connection
JP4 Boiler lling with pump Boiler lling without pump
JP5 Tea key connection
JP6 Tea dispensing with pump Tea dispensing without pump
JP7 Continuous function disabled Continuous function enabled
JP8 Dose count enabled Dose count disabled
JP9 Credit/Debit enabled Credit/Debit disabled
JUMPER INSERTED NOT INSERTED
JP10 Tea key 2 connection
JP12 Not managed Not managed
JP14 Not managed Not managed
JP15 Display function keys enabled Display function keys disabled
JP16
6-key push button panel enabled 4-key push button panel enabled
JP17 Boiler t°check with external pressure switch (always on)
JP18 Heat.temp./press. management always ON
JP22 Programming via Indar
