Wega SPHERA Series User Manual

8 of 68
TECHNICIANS manual

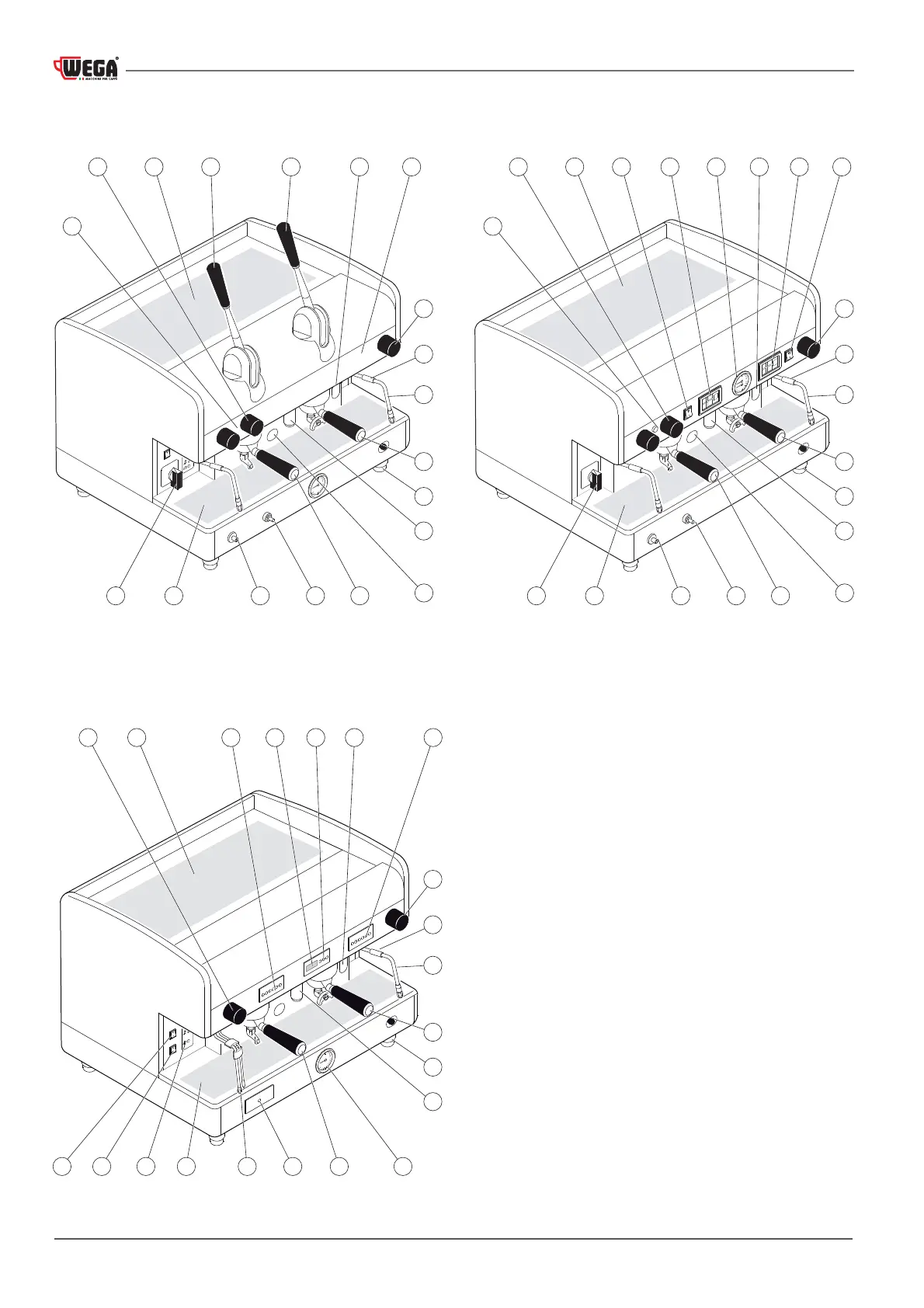

2.4 Machine description
18 1 3 20
5
6
7
8
9
10
241626 25 15 12 423
20 21 22
ALE version
EMA - EPU - EVD version
DISPLAY Version
18
17
1 2 3 4
5
6
7
8
9
10
11
1416 15 1213
2 18
17
1 19 3 20 19
5
6
7
8
9
10
11
1416 15 1213
20 4
1. Cup heater surface.
2. Lever groups.
3. Optical boiler water level (**).
4. Pressure gauge.
5. Steam knob.
6. Burn protection.
7. Steam nozzle.
8. 2-Cup lter holder.
9. Adjustable foot.
10. Hot water nozzle.
11. Gas burner inspection window (*).
12. 1-Cup lter holder.
13. Gas safety (*).
14. Gas ignition push button (*).
15. Cup-rest grid.
16. ON switch.
17. Machine on indicator light.
18. Hot water knob.
19. Manual dispensing push-buttons (EPU).
20. Push button panel (EVD).
21. Display.
22. Manual and water dispensing push buttons (DISPLAY).
23. Autosteamer push-button panel (*).
24. Autosteamer nozzle (*).
25. Machine/cup heater lights.
26. Cup heater switch.
(*) Optional device.
(*) In some versions the optical level is replaced by a green light.
