WEICHAI BAUDOUIN PowerKit 16M33 Series User Manual

Product
23
2.4 Cooling Circuits
16M33 series gas engine is equipped with 2 cooling circuits.
a) High temperature cooling circuit to cool:
 Cylinder block and cylinder head
 Turbocharger
 Engine oil through oil cooler
The internal circuit is designed for self-degassing.
To provide effective engine protection against freezing, chemical and galvanic corrosion,
cavitation and depositing, it is IMPERATIVE to use the recommended coolant as defined
in the 6.1 Coolant Recommendation. The high temperature coolant pump is located at
the engine‟s front side (See item 2 of the above picture).
b) Low temperature cooling circuit:
The low temperature cooling circuit cools the charged air and gas.
2.4.1 High Temperature Cooling Circuits for 16M33 Series Gas Engine Overall Layout

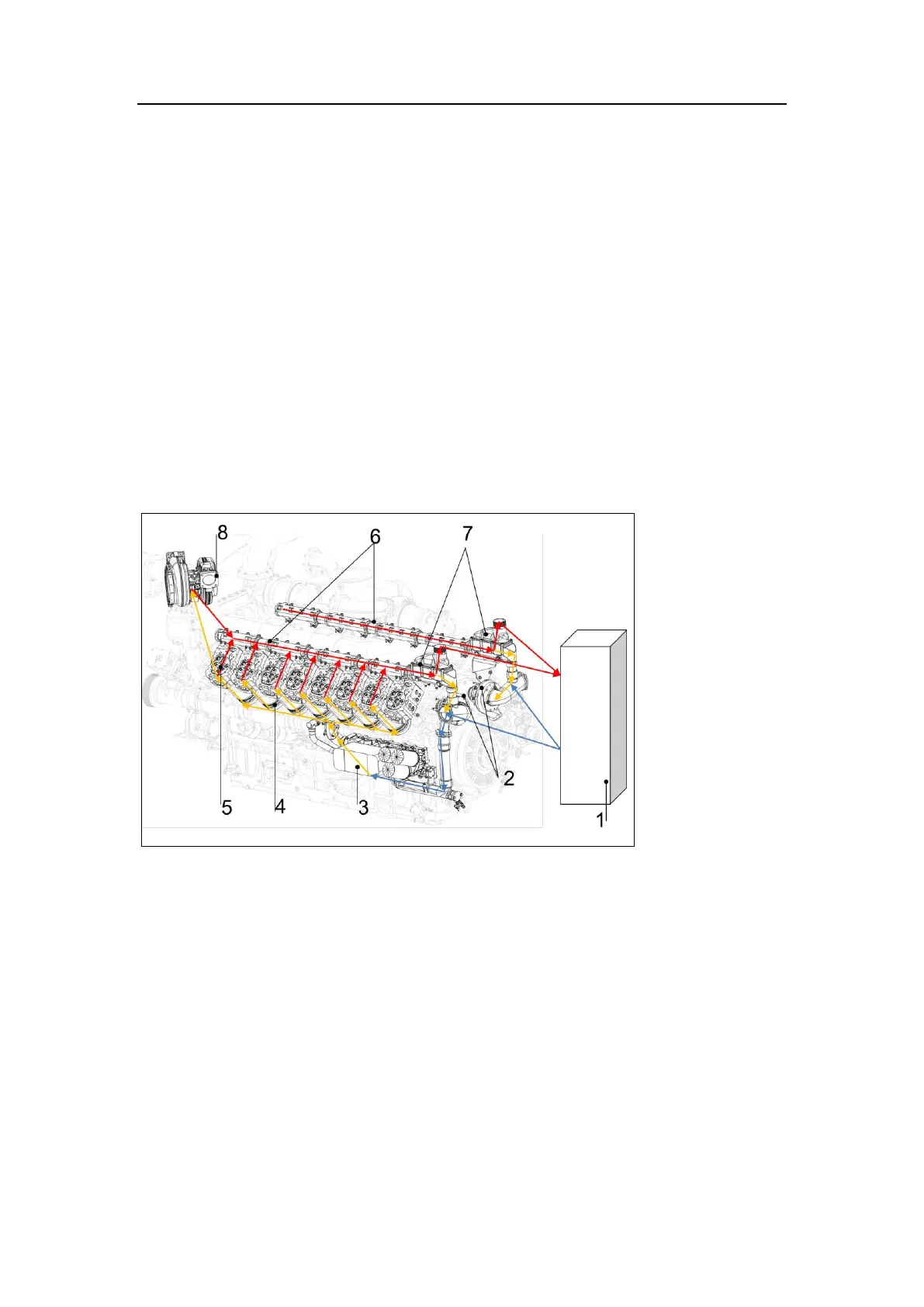

Figure 2.4.1-Overall Layout of high-temp cooling circuits
1-
Radiator
2- Water pump
3- Oil cooler
4- Cylinder block cooling
5- Cylinder head cooling
6- Water-outlet pipe
Thermostat assembly
7-
8-Turbocharger
于千钧
“1005098300 - Operation_and_Maintenance_Manual_for_PowerKit_16M33_Series_Gas_Engine, A”
林世龙
许太法
宋安泽
20200425
于千钧
张安勇/Zhang Anyong
王巧荣
