2.5 Lubrication System
16M33 Series gas engines are equipped with a lubrication system including two oil coolers.
The gear driving oil pump is located at the low front of the engine.
Many engine parts are lubricated by pressurized oil through piping and crankcase hoses.
 Oil circuit

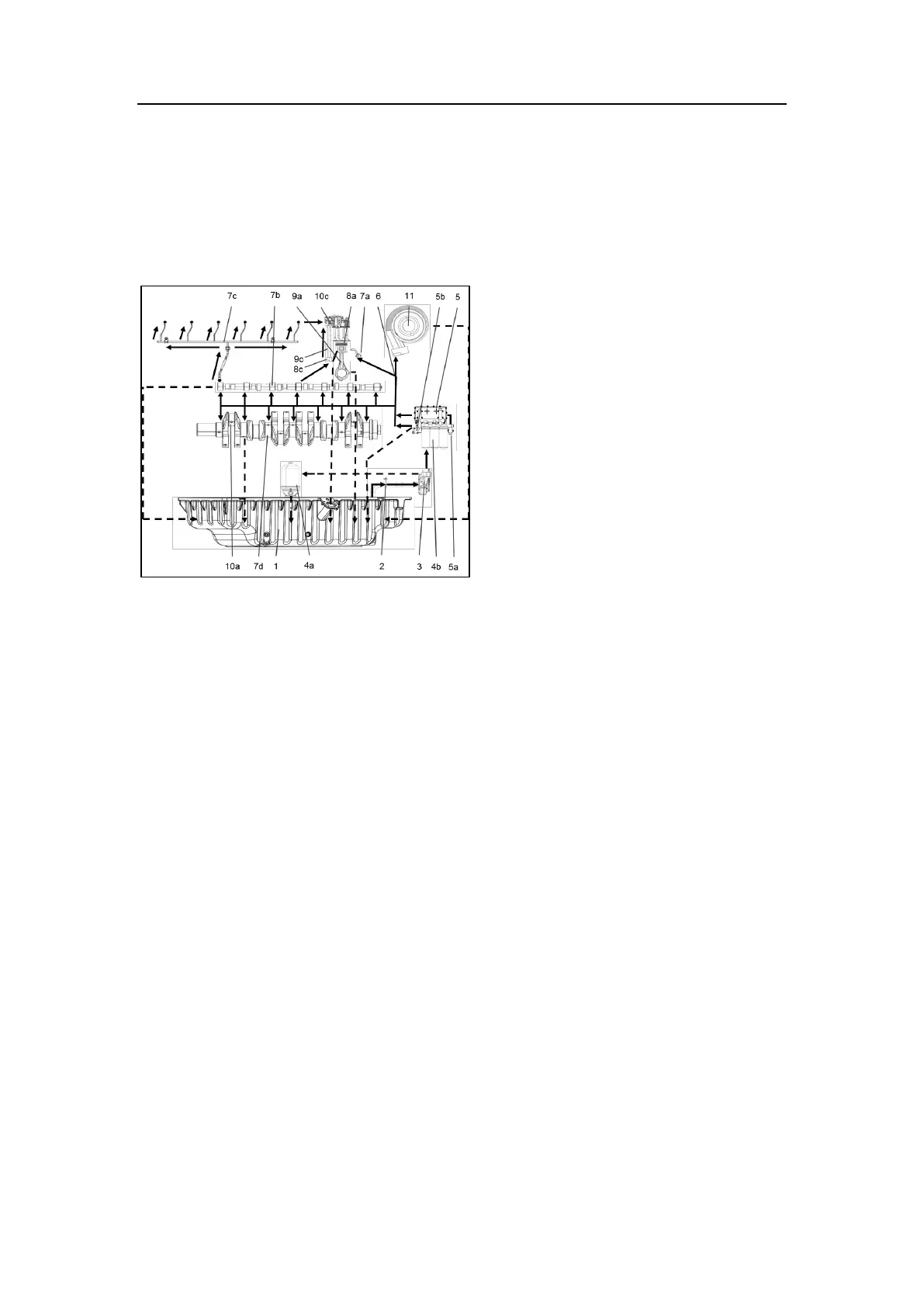

Figure2.5-Overall Layout of oil circuits
 Oil filters
16M33 gas engine ranges are equipped with a lubricating system including 6 full flow oil
filters and two centrifugal oil filters.
a) "Full flow" filters fitted in series on the circuit.
These cartridges are equipped with a by-pass valve allowing the continuity of the engine
lubrication even in case of a sudden clogging.
b) Centrifugal oil filter(s)
Centrifugal oil filters of 16M33 gas engine are installed in bypass on both side of the
engine.
1-Oil Sump
10a-Conrod bearings
2- Suction strainer
7b-Camshaft bearings
3- Oil pump
7c-Cylinder head lubri-
cating oil pipe
4a-Centrifuge filter
4b-Oil Filter
8c-Tappet
5-Oil Cooler
9c-Pushrod
5a-Bypass Valve
10c-Rocker arm shaft
and rocker arm
5b-Pressure Relief Valve
6-Main Oil Gallery
7d-Main bearing
7a-Piston Spray nozzle
11-Turbocharger
8a-Piston
9a-Conrod;
