Installation
44
The cross-sectional area of the wire is 0.75mm
2
.

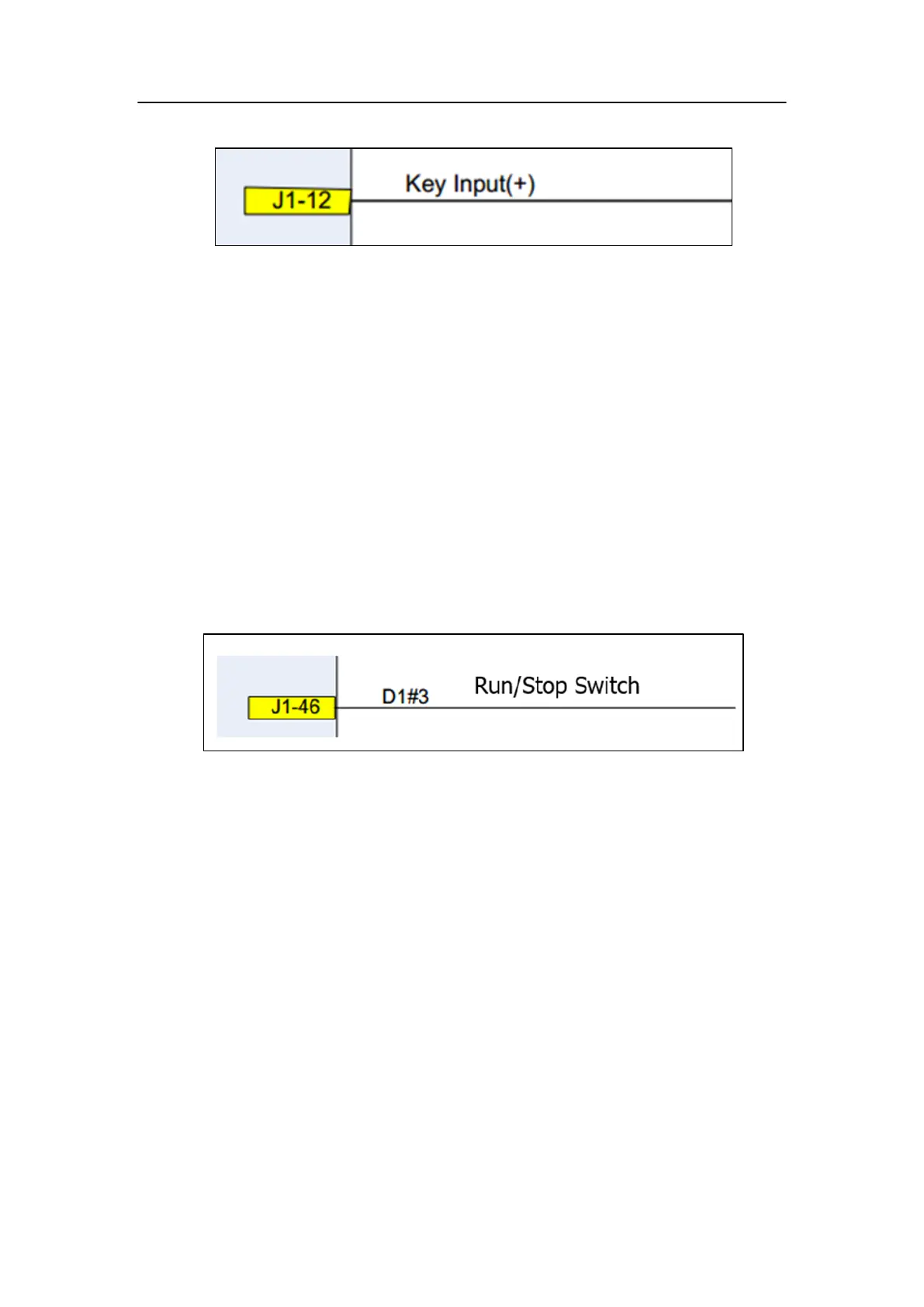

Figure 3.10.1 B-Key switch for "ignition"
"run/stop switch" wire
Pin No.:J1-46.
Functional description: Turning on allows the engine to start and the throttle and
TecJet™ work properly. When disconnected, the throttle and TecJet™ are always
closed.
The wire cross-sectional area is 0.75 mm
2
.
In the automatic control, the unit controller needs to control the opening and closing of
the running/stopping switch through the relay. This switch is normally closed when the
motor is started after the ignition key is energized or within 3 seconds before the motor
is started after the ignition key is energized. When an emergency stop is required, the
unit controller immediately disconnects the switch and the engine stops.
The run/stop switch can be connected to a mechanical manual switch or a passive
contact switch control. It is forbidden to share the same relay with other device
switches.
Figure 3.10.1 C- Wire for "Run/Stop switch"
"Idle/rated switch" wire
Pin No.: J1-59.
Functional description: When the switch is on, the speed rises to the rated speed.
When the switch is off, the speed decreases to idle speed.
The wire cross-sectional area is 0.75mm
2
.
In the automatic control, the unit controller needs to control the opening and closing
of the idle/rated switch through the relay.
The idle/rated switch can be connected to a mechanical manual switch or a passive
contact switch. It is forbidden to share the same relay with other device switches.
