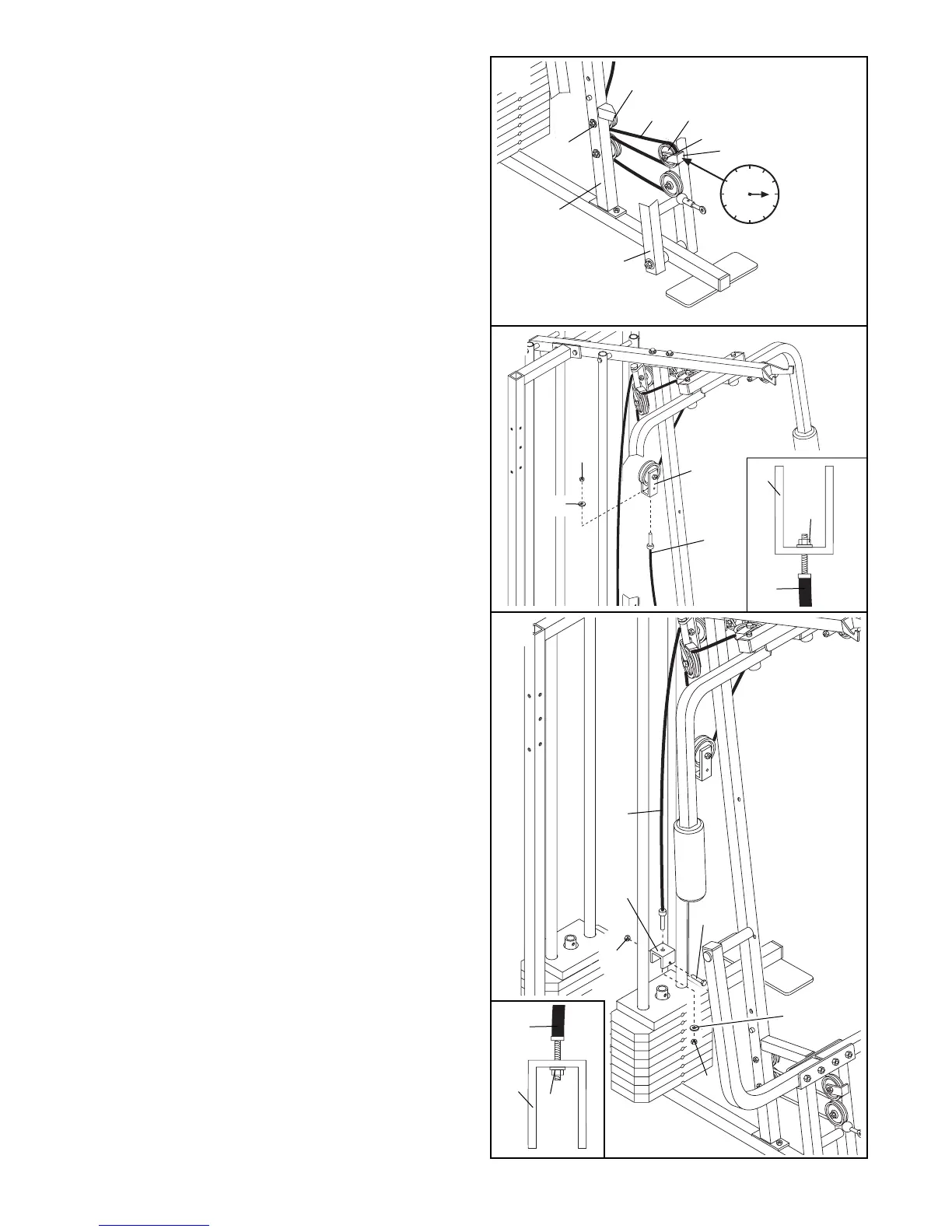

19. Route the Short Cable (23) around the 3 1/2”
Pulley (15) attached to the upper hole in the
Press Frame (17). Be sure that the Cable Trap
(66) is in the “3 o’clock” position and that the
Cable is routed around the Pulley as shown.
Tighten the 3/8” Nylon Locknut (21) and 3/8” x
3 1/2” Bolt (not shown).
Route the Short Cable (23) around the 3 1/2”
Pulley (15) attached to the upper hole in the Front
Upright (42). Be sure that the Cable Trap (not
shown) is turned to hold the Cable in place
and that the Cable is routed around the Pulley
as shown. Tighten the 3/8” Nylon Locknut (21)
and 3/8” x 3 3/4” Bolt (not shown).
20. Attach the end of the Short Cable (23) to the
Long “U”-Bracket (57) with a 1/4” Nylon Locknut
(2) and a 1/4” Washer (10). Do not completely
tighten the Nylon Locknut. It should be
threaded onto the end of the Cable only a
couple of turns, as shown in the inset draw-
ing.
15
15
23
21
21
66
42
17
19
57
57
23
2
2
10
20
21. Attach the Medium Cable (58) to a Small “U”-
Bracket (71) with a 1/4” Nylon Locknut (2) and a
1/4” Washer (10). Do not completely tighten the
Nylon Locknut. It should be threaded onto the
end of the Cable only a couple of turns, as
shown in the inset drawing.
Attach the Small “U”-Bracket (71) to the indicated
Weight Tube (63) with a 5/16” x 1 3/4” Bolt (24)
and a 5/16” Nylon Locknut (3).
71
24
10
2
58
21
3
23
71
2
58
63
To Next Page
