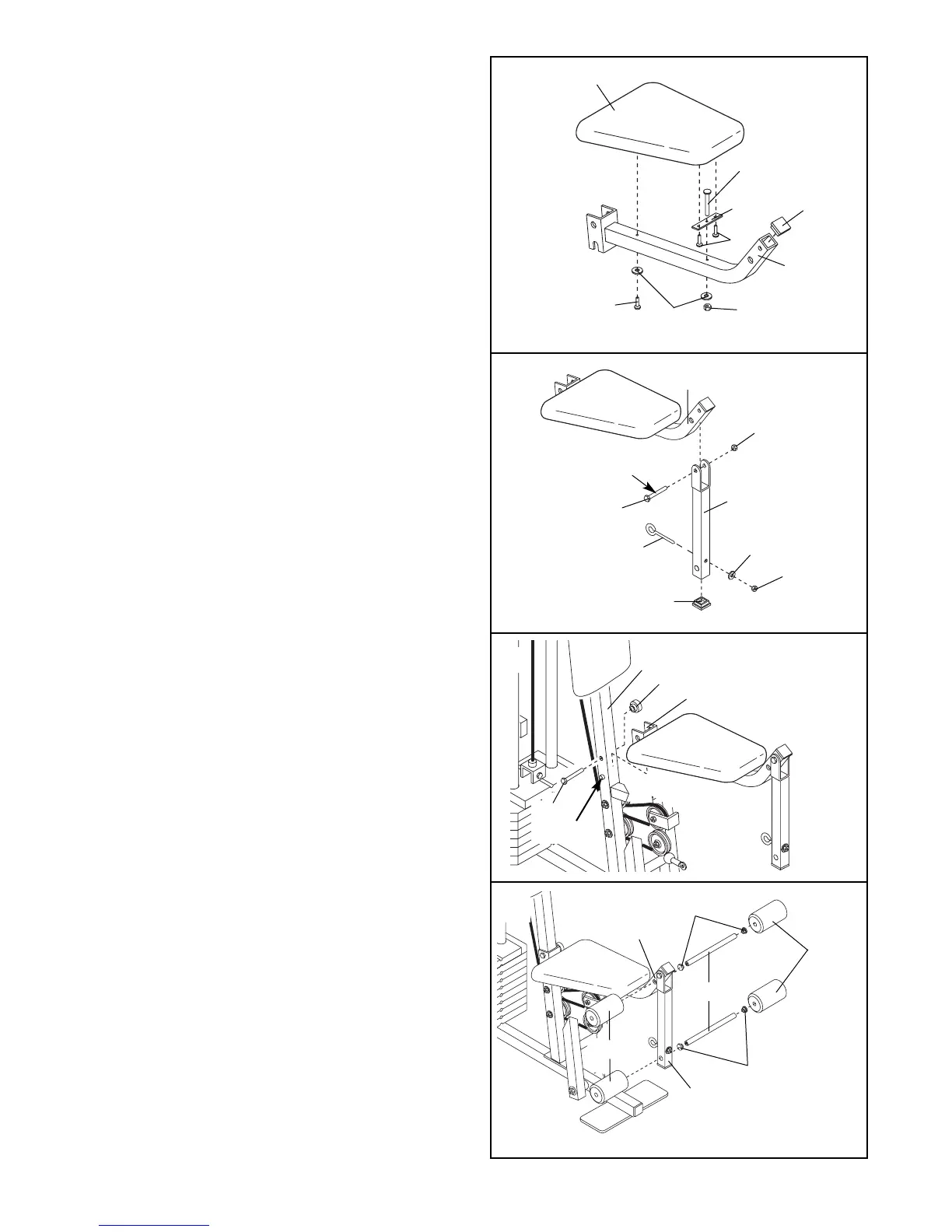

27. Press a 1 1/2” Inner Cap (32) into the Seat Frame
(36).
Insert a 1/4” x 2” Carriage Bolt (38) into the center
hole in the Seat Plate (37). Attach the Seat Plate
to the Seat (13) with two 1/4” x 3/4” Screws (18).
Insert the 1/4” x 2” Carriage Bolt (38) through the
indicated hole in the Seat Frame (36). Tighten a
1/4” Nylon Locknut (2) with a 1/4” Washer (10)
onto the Carriage Bolt.
Attach the other end of the Seat (13) to the Seat
Frame (36) with a 1/4” Washer (10) and a 1/4” x
2” Machine Screw (81).
15
27
13
38
37
32
18
36
2
10
81
28. Press a 1 1/2” Inner Cap (32) into the Leg Lever
(29).
Lubricate the 5/16” x 2 1/4” Bolt (33). Attach the
Leg Lever (29) to the Seat Frame (36) with the
Bolt and a 5/16” Nylon Locknut (3).
Insert the 3/8” x 2” Eyebolt (35) into the Leg
Lever (29) from the direction shown. Tighten a
3/8” Washer (9) and a 3/8” Nylon Locknut (21)
onto the Eyebolt.
29. Rest the Seat Frame (36) on the indicated pin in
the Front Upright (42). Attach the Seat Frame to
the Front Upright with a 5/16” x 2 3/4” Carriage
Bolt (14) and the Seat Knob (40).
28
29
36
3
Lubricate
35
33
29
9
21
32
42
40
36
14
Pin
30. Press two 3/4” Round Inner Caps (34) into each
13 1/2” Pad Tube (28).
Insert one 13 1/2” Pad Tube (28) into the Seat
Frame (36). Slide a 6” Pad (30) onto each end of
the Pad Tube.
Insert the other 13 1/2” Pad Tube (28) into the
Leg Lever (29). Slide a 6” Pad (30) onto each end
of the Pad Tube.
30
36
34
30
34
29
30
28
