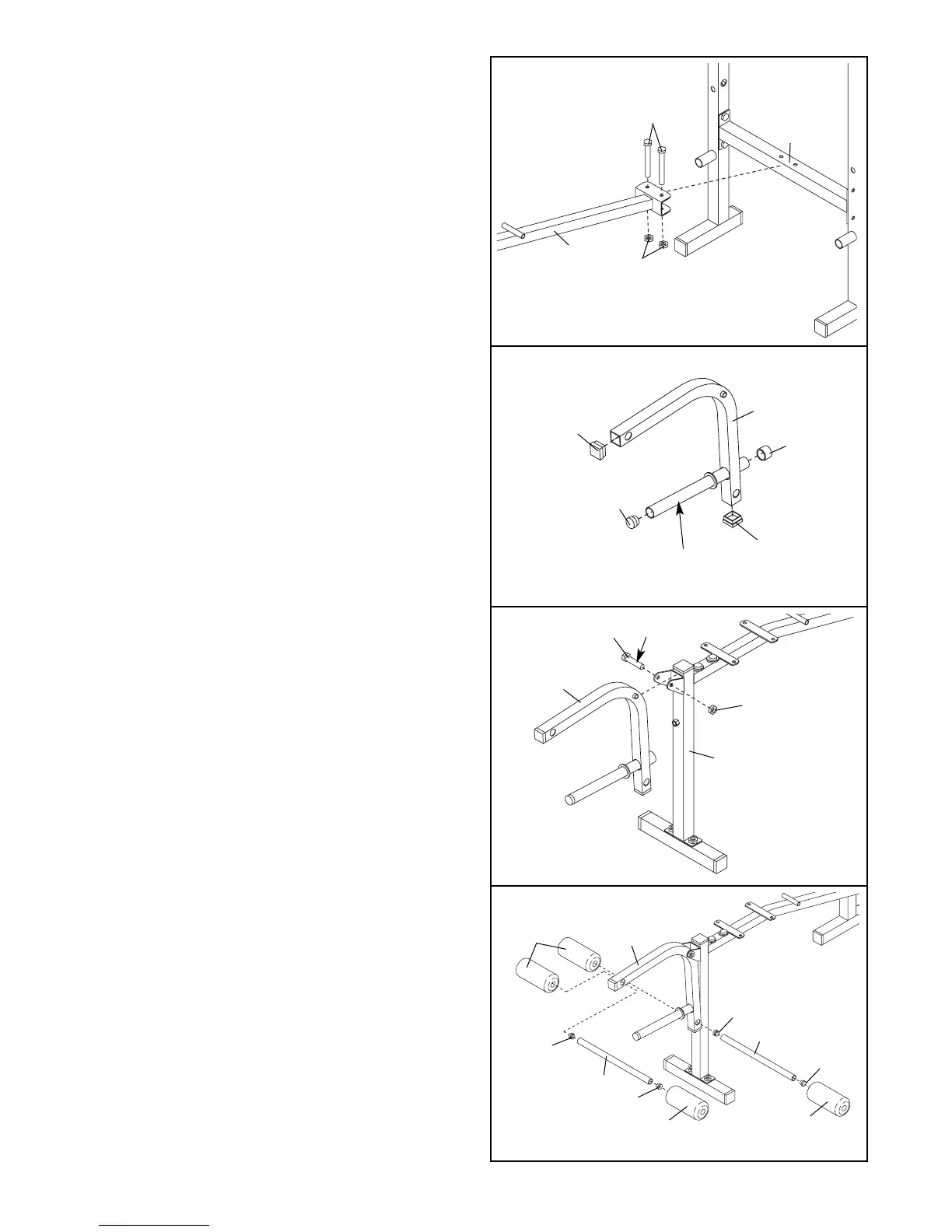

3. Attach the Frame (2) to the Crossbar (3) with two
M8 x 55mm Bolts (18) and two M8 Nylon Locknuts
(17). Do not tighten the Locknuts yet. Be sure
that the Frame is attached on the indicated side
of the Crossbar.
4. Tap a 30mm Square Inner Cap (22) into each end
of the Leg Lever (4).
Press a 25mm Round Inner Cap (24) into the indi-
cated end of the weight tube on the Leg Lever (4).
Press the 25mm Round Angled Cap (20) onto the
other end of the weight tube.
5. Lubricate the M10 x 60mm Bolt (32) with grease.
Attach the Leg Lever (4) to the bracket on the
Front Leg (8) with the Bolt and an M10 Nylon
Locknut (33). Do not overtighten the Locknut;
the Leg Lever must be able to pivot easily.
6. Insert the two Pad Tubes (10) into the holes in the
Leg Lever (4). Slide two Long Foam Pads (23)
onto each Pad Tube. Press two 19mm Round
Inner Caps (9) into each Pad Tube.
3
2
22
24
Weight Tube
9
10
10
9
4
23
23
23
33
4
4
20
22
3
17
18
6
5
Lubricate
32
4
6
9
9
8
