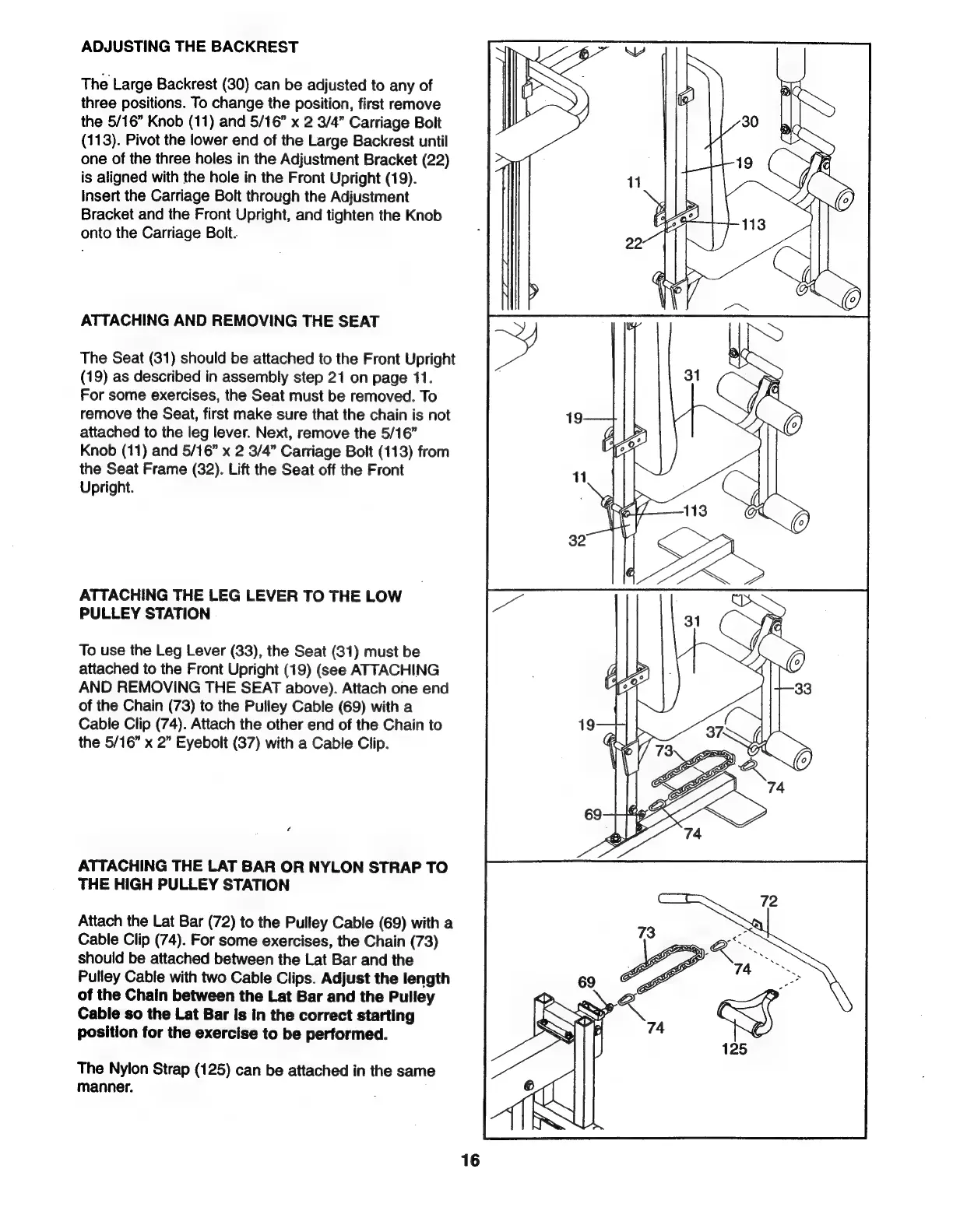

Weider 8225 - Page 16

ADJUSTING THE BACKREST
The Large Backrest (30) can be adjusted to any of
three positions. To change the position, first remove
the 5/16” Knob (11) and 5/16” x 2 3/4” Carriage Bolt
(113). Pivot the lower end of the Large Backrest until
one of the three holes in the Adjustment Bracket (22)
is aligned with the hole in the Front Upright (19).
insert the Carriage Bolt through the Adjustment
Bracket and the Front Upright, and tighten the Knob
onto the Carriage Bolt.
ATTACHING AND REMOVING THE SEAT
The Seat (31) should be attached to the Front Upright
(19) as described in assembly step 21 on page 11.
For some exercises, the Seat must be removed. To
remove the Seat, first make sure that the chain is not
attached to the leg lever. Next, remove the 5/16”
Knob (11) and 5/16” x 2 3/4” Carriage Bolt (113) from
the Seat Frame (32). Lift the Seat off the Front
Upright.
ATTACHING THE LEG LEVER TO THE LOW
PULLEY STATION
To use the Leg Lever (33), the Seat (31) must be
attached to the Front Upright (19) (see ATTACHING
AND REMOVING THE SEAT above). Attach one end
of the Chain (73) to the Pulley Cable (69) with a
Cable Clip (74). Attach the other end of the Chain to
the 5/16” x 2” Eyebolt (37) with a Cable Clip.
G
ATTACHING THE LAT BAR OR NYLON STRAP TO
THE HIGH PULLEY STATION
Attach the Lat Bar (72) to the Pulley Cable (69) with a
Cable Clip (74). For some exercises, the Chain (73)
should be attached between the Lat Bar and the
Pulley Cable with two Cable Clips. Adjust the length
of the Chain between the Lat Bar and the Pulley
Cable so the Lat Bar is in the correct starting
position for the exercise to be performed.
The
Nylon
Strap
(125)
can
be
attached
in
the
same
manner.
