Weider 8510 User Manual

12

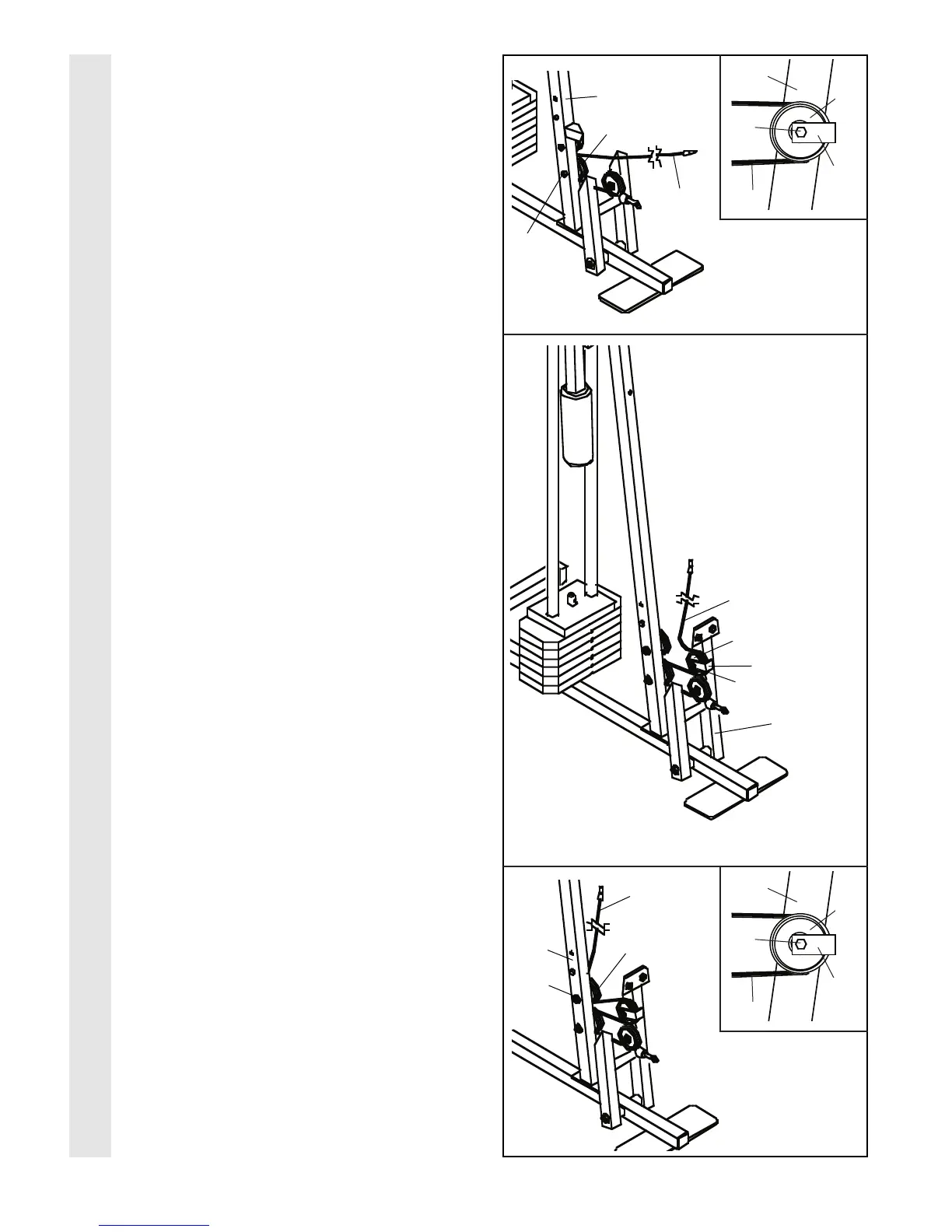

21. Route the Short Cable (58) around the 3 1/2Ó
Pulley (15) attached to the lower hole in the
Front Upright (42). See the inset drawing.
Be sure that the Cable Trap (66) is turned
to hold the Cable in place and that the
Cable is routed around the Pulley as
shown. Tighten the 3/8Ó Nylon Locknut (21)
and the 3/8Ó x 3 3/4Ó Bolt (71).
22. Route the Short Cable (58) around the 3 1/2Ó
Pulley (15) attached to the upper hole in the
Press Frame (17). Be sure that the Cable
Trap (66) is turned to hold the Cable in
place and that the Cable is routed around
the Pulley as shown. Tighten the 3/8Ó Nylon
Locknut (21) and the 3/8Ó x 3 1/2Ó Bolt (not
shown).
23. Route the Short Cable (58) around the 3 1/2Ó
Pulley (15) attached to the upper hole in the
Front Upright (42). See the inset drawing.
Be sure that the Cable Trap (66) is turned
to hold the Cable in place and that the
Cable is routed around the Pulley as
shown. Tighten the 3/8Ó Nylon Locknut (21)
and the 3/8Ó x 3 3/4Ó Bolt (71).
23
21
22
CABLE ASSEMBLY
58
58
21
15
66
21
17
42
15
42
58
15
21
71
58
Inset shows view
from other side
42
66
15
71
58
Inset shows view
from other side
42
66
15

Weider 8510 Specifications

General

Butterfly Station	Yes
Press Arm	Yes
High Pulley	Yes
Low Pulley	Yes
Leg Developer	Yes
Type	Home Gym
Resistance Type	Weight Stack
Weight Capacity	300 lbs.
