Weider 8510 User Manual

24. Attach the end of the Short Cable (58) to the
Long ÒUÓ-Bracket (57) with a 1/4Ó Nylon Lock-
nut (2) and a 1/4Ó Flat Washer (10). Do not
completely tighten the Nylon Locknut. It
should be threaded onto the end of the
Cable so only a couple of threads are
showing above the nut, as shown in the
inset drawing.
25. Attach the Long Cable (23) to the Small ÒUÓ-
Bracket (67) with a 1/4Ó Nylon Locknut (2)
and a 1/4Ó Flat Washer (10). Do not com-
pletely tighten the Nylon Locknut. It
should be threaded onto the end of the
Cable only a couple of turns, as shown in
the inset drawing.
Attach the Small ÒUÓ-Bracket (67) to the
Weight Tube (63) with the 5/16Ó x 1 3/4Ó Bolt
(72) and a 5/16Ó Nylon Locknut (3).
24
25

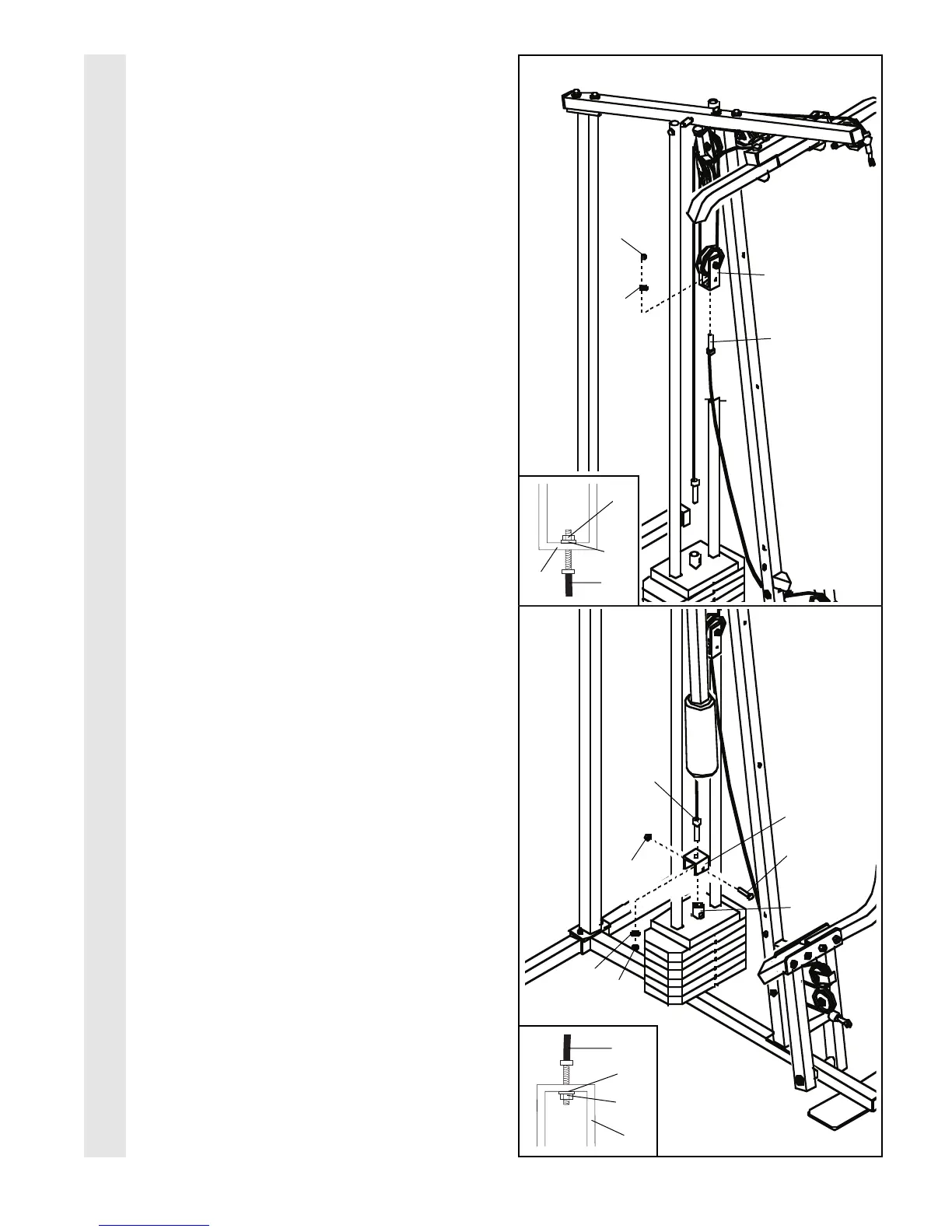

CABLE ASSEMBLY
57
2
10
58
63
72
67
3
10
2
23
13
23
67
2
10
58
57
2
10
