13

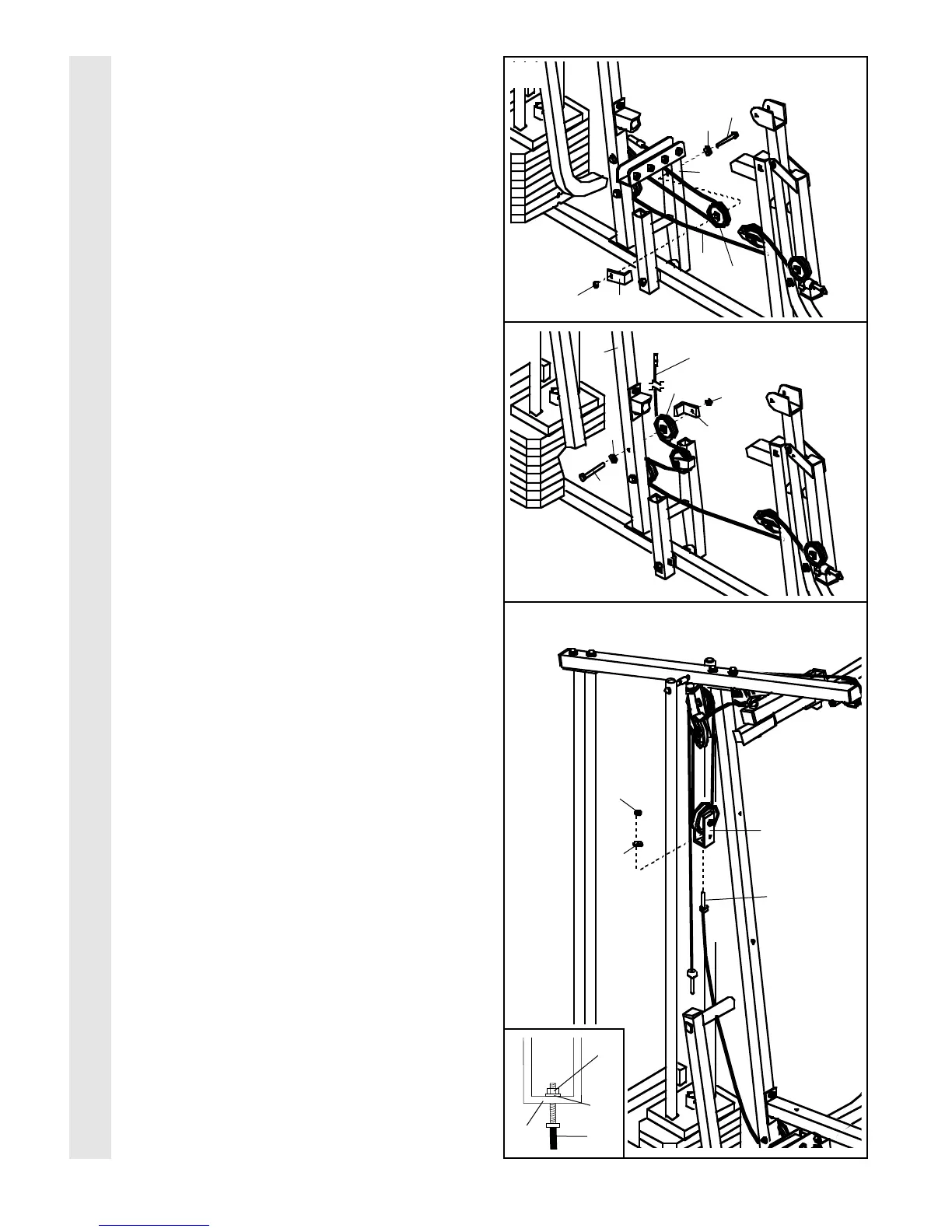

26. Note: The 3 1/2” Pulley (15) labeled in this
step is pre-attached. It is shown removed
for easy part identification.
Route the Short Cable (58) around the 3 1/2”
Pulley (15) attached to the upper hole in the
Press Frame (17). Be sure that the Cable is
routed around the Pulley as shown.
Tighten the 3/8” Nylon Locknut (21) and the
3/8” x 3 1/2” Bolt (16).
27. Note: The 3 1/2” Pulley (15) labeled in this
step is pre-attached. It is shown removed
for easy part identification.
Route the Short Cable (58) around the 3 1/2”
Pulley (15) attached to the upper hole in the
Front Upright (42). Be sure that the Cable
Trap (66) is turned to hold the Cable in
place and that the Cable is routed around
the Pulley as shown. Tighten the 3/8” Nylon
Locknut (21) and the 3/8” x 3 3/4” Bolt (71).
28. Attach the end of the Short Cable (58) to the
Long “U”-Bracket (57) with a 1/4” Nylon Lock-
nut (2) and a 1/4” Flat Washer (10). Do not
completely tighten the Nylon Locknut. It
should be threaded onto the end of the
Cable so only a couple of threads are
showing above the nut, as shown in the
inset drawing.
26
27
28
CABLE ASSEMBLY
16
9
17
15
21
71
9
42
15
58
66
58
21
66
57
2
10
58
58
57
2
10
