19

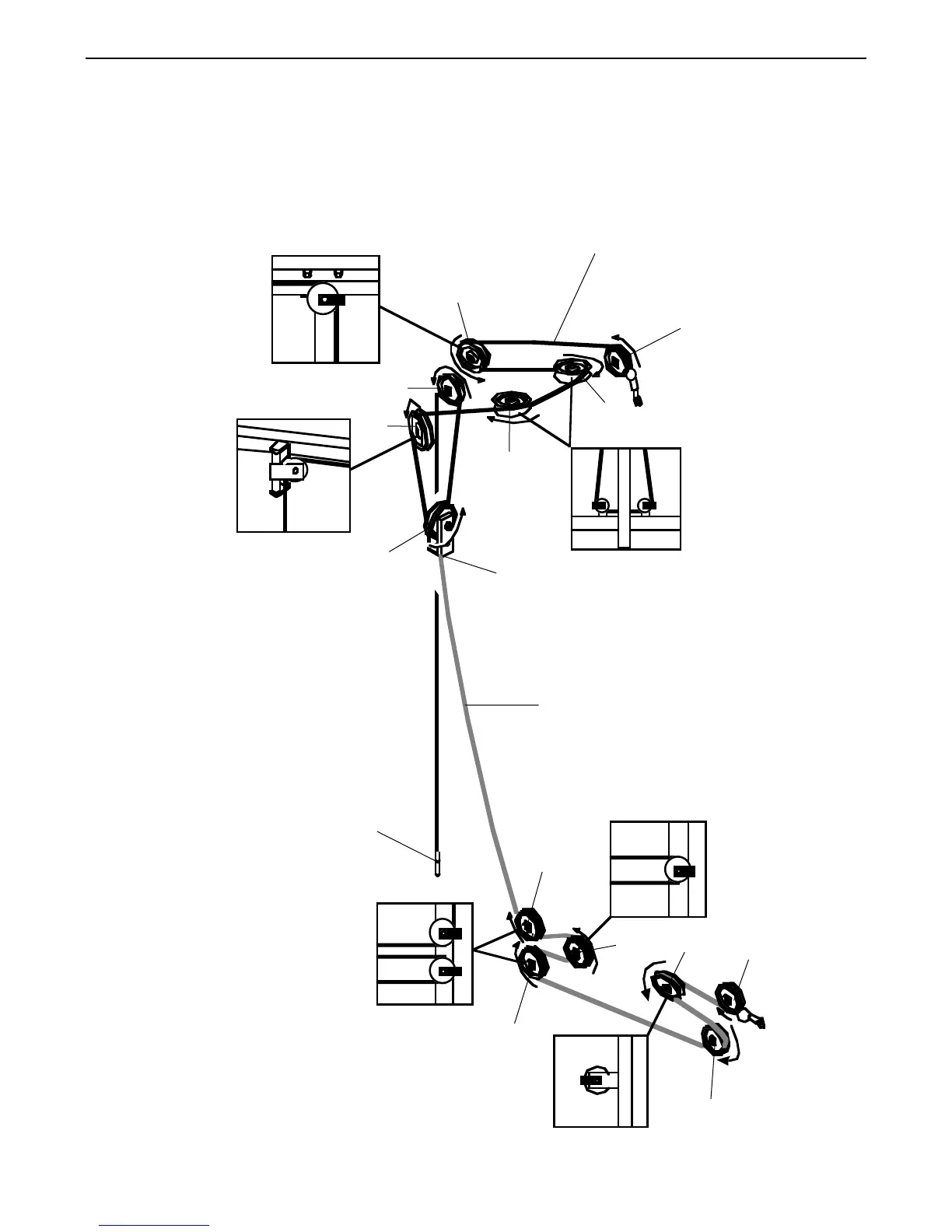

CABLE DIAGRAM
The cable diagram below shows the proper routing of the Short Cable (58) and the Long Cable (23). Use the
diagram to be sure that the two cables and the cable traps have been assembled correctly. If the cables have
not been correctly routed, the home gym system will not function properly and damage may occur. The numbers
show the correct route for each cable. The starting and ending points of each cable are labeled. Be sure that
the cable traps do not touch or bind the cables.
4
3
2
7
6
5
4
3
2
Weight Stack—8
6
1—Low Pulley
1—High Pulley
Long Cable (23)
7—Long “U”-Bracket
Short Cable (58)
5
To Next Page
