14

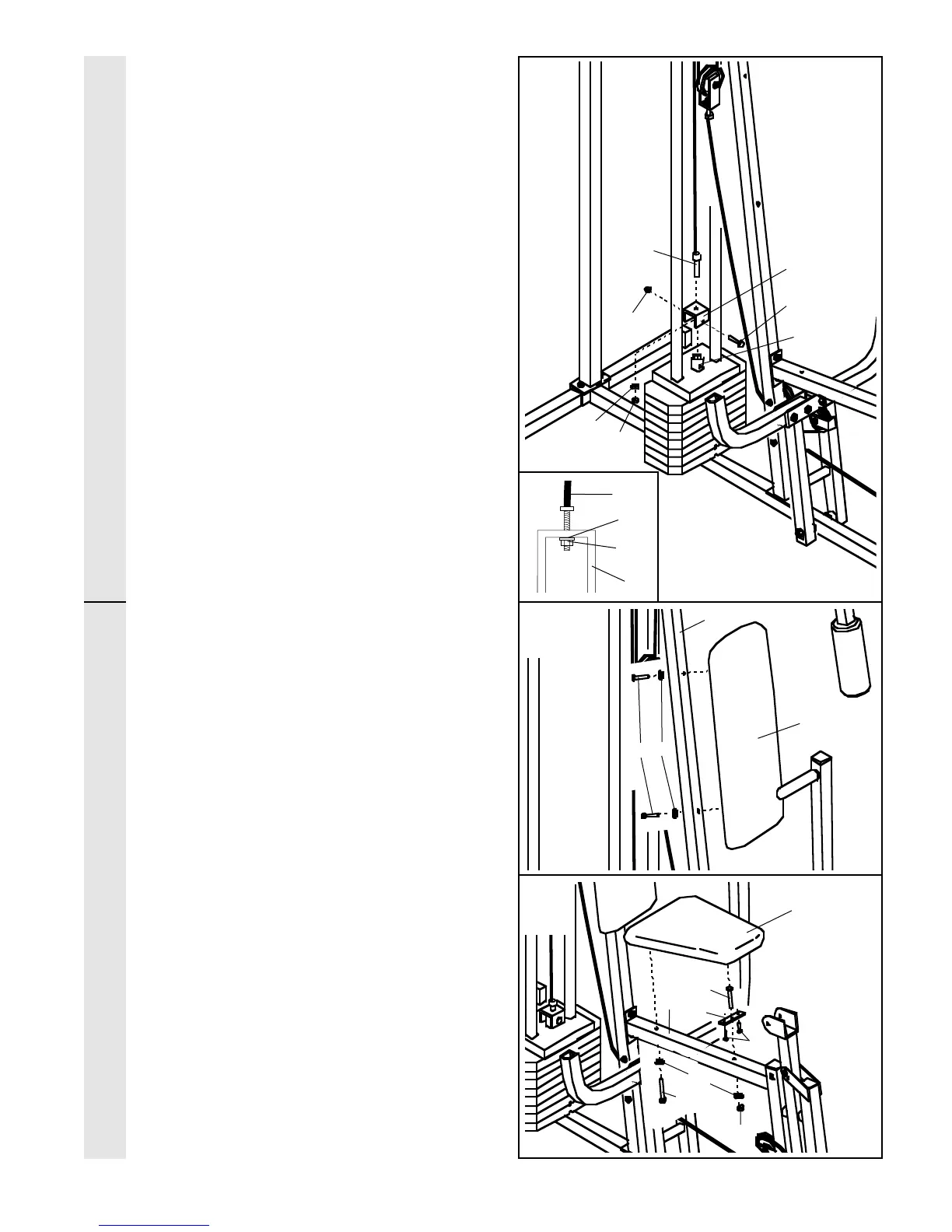

29. Attach the Long Cable (23) to the Small “U”-
Bracket (67) with a 1/4” Nylon Locknut (2)
and a 1/4” Flat Washer (10). Do not com-
pletely tighten the Nylon Locknut. It
should be threaded onto the end of the
Cable only a couple of turns, as shown in
the inset drawing.
Attach the Small “U”-Bracket (67) to the
Weight Tube (63) with the 5/16” x 1 3/4” Bolt
(72) and a 5/16” Nylon Locknut (3).
30. Attach the Backrest (41) to the Front Upright
(42) with two 1/4” x 2 1/2” Screws (43) and
two 1/4” Flat Washers (10).
31. Insert the 1/4” x 2 1/2” Carriage Bolt (38) into
the center hole in the Seat Plate (37). Attach
the Seat Plate to the Seat (13) with two 1/4” x
1/2” Screws (18).
Insert the 1/4” x 2 1/2” Carriage Bolt (38) into
the indicated hole in the Seat Frame (36).
Tighten a 1/4” Nylon Locknut (2) with a 1/4”
Flat Washer (10) onto the Carriage Bolt.
Attach the other end of the Seat (13) to the
Seat Frame (36) with a 1/4” Flat Washer (10)
and the 1/4” x 2 1/4” Screw (24).
31
29
30
CABLE ASSEMBLYSEAT ASSEMBLY
23
67
2
10
63
72
67
3
10
2
23
41
42
10
43
2
24
36
13
37
18
38
10
To Next Page
