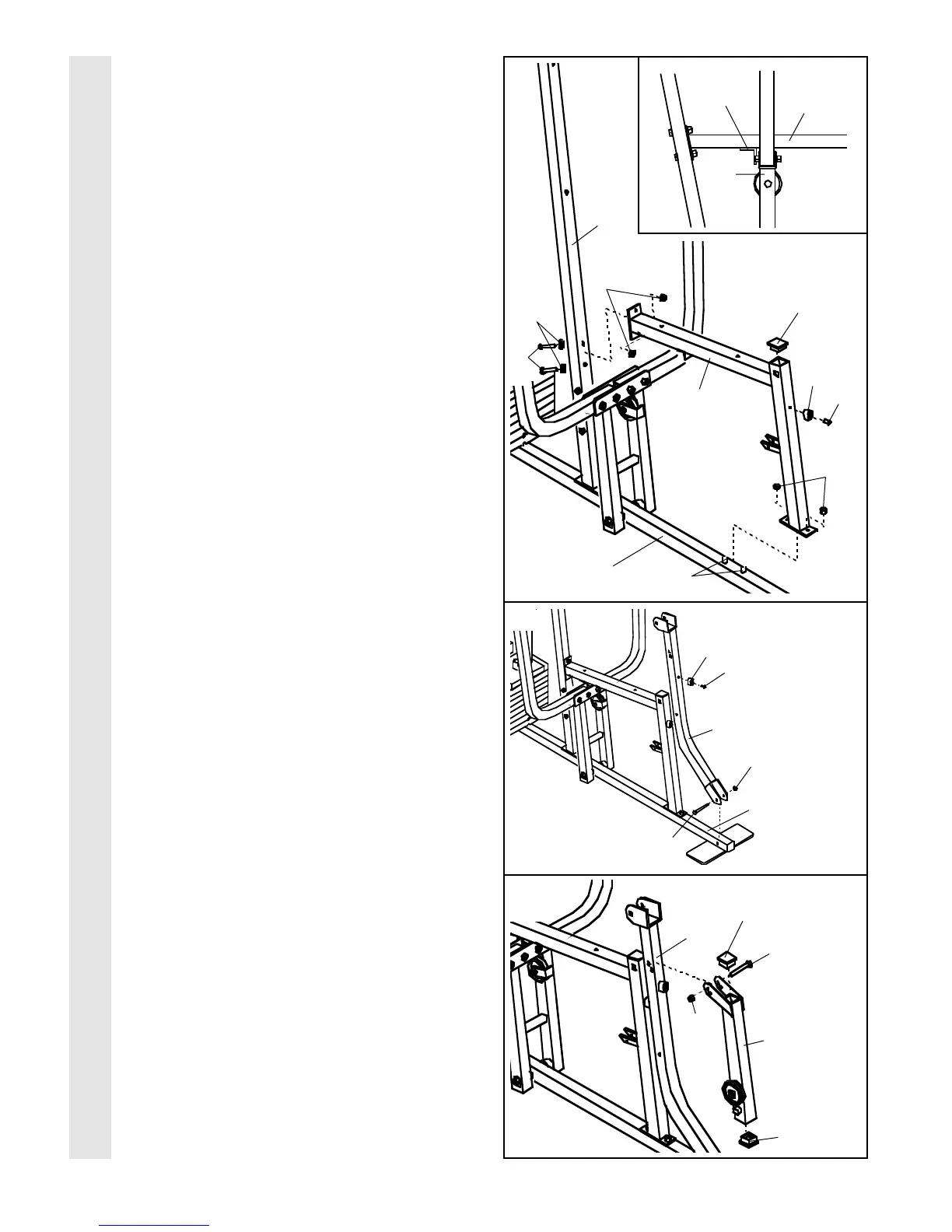

11. Press a 1 3/4” Square Inner Cap (44) into the
Seat Frame (36). Attach a Bumper (73) to the
Seat Frame with a 1/2” Tap Screw (65).
Slide the Seat Frame (36) onto the 5/16” x
2 1/2” Carriage Bolts (1) in the Base (4). See
the inset drawing. The bracket on the Seat
Frame must be behind the Press Frame
(17). Hand-tighten a 5/16” Nylon Locknut (3)
onto each Carriage Bolt. Do not tighten the
Nylon Locknuts until the end of this
assembly step.
Attach the Seat Frame (36) to the Front
Upright (42) with two 5/16” x 2 3/4” Bolts (11),
two 5/16” Flat Washers (8), and two 5/16”
Nylon Locknuts (3).
Tighten all Nylon Locknuts used in this
step now.
12. Attach a Bumper (73) to the Rocker Arm (32)
with a 1/2” Tap Screw (65).
Lubricate a 3/8” x 3 1/4” Bolt (35). Attach the
Rocker arm (32) to the Base (4) with the 3/8”
x 3 1/4” Bolt and a 3/8” Nylon Locknut (21).
13. Lubricate a 3/8” x 2 1/2” Bolt (7). Attach the
Leg Lever (29) to the Rocker Arm (32) with
the 3/8” x 2 1/2” Bolt and a 3/8” Nylon Jam
Nut (33).
Press a 1 3/4” Square Inner Cap (44) into
each end of the Leg Lever (29).
13
11
8
12
9
ARM ASSEMBLY
Bracket
17
36
1
44
36
3
3
42
73
32
73
65
4
21
7—Lubricate
29
32
44
44
Lubricate—35
65
4
11
33
To Next Page
