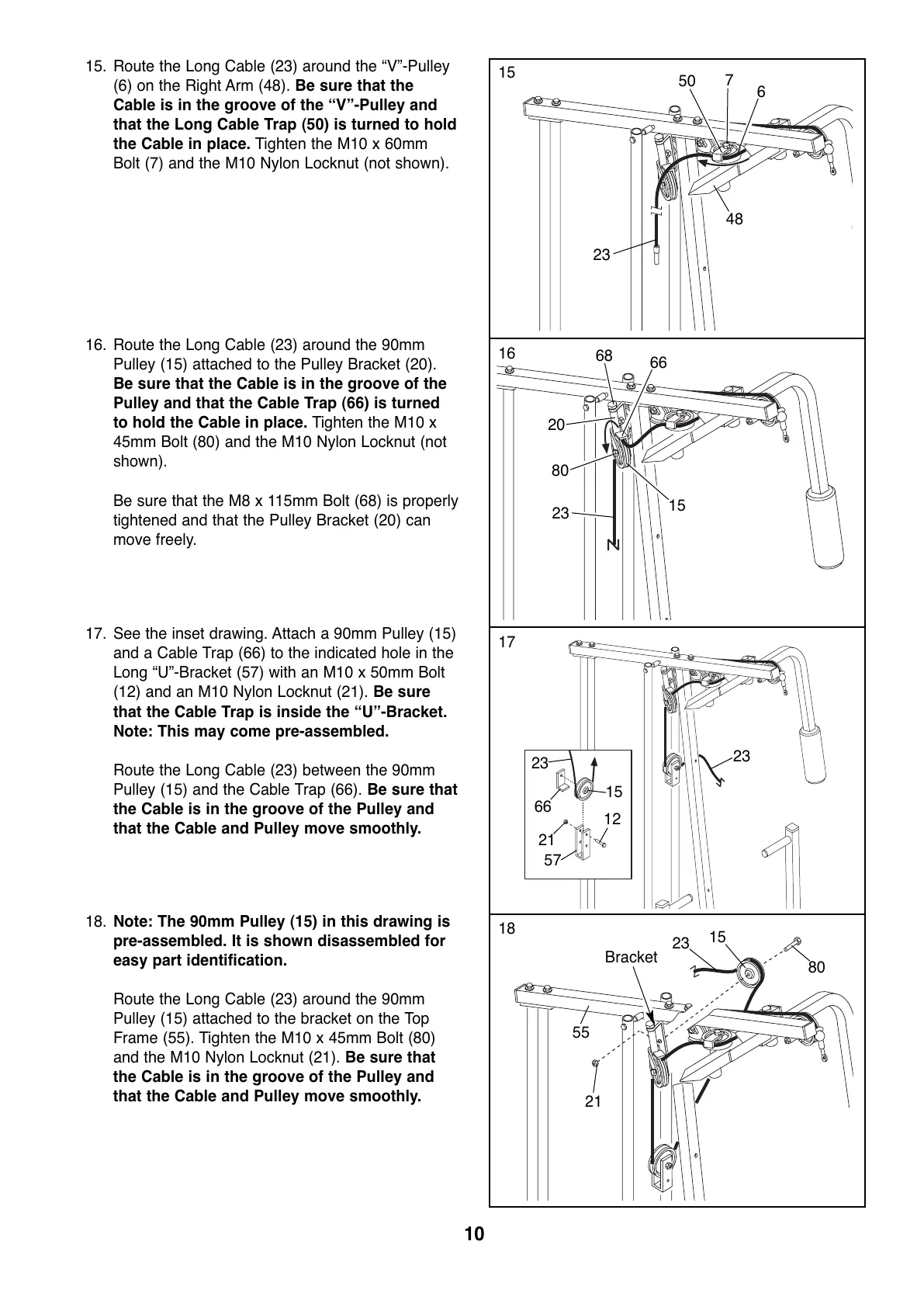

15. Route the Long Cable (23) around the “V”-Pulley
(6) on the Right Arm (48). Be sure that the
Cable is in the groove of the “V”-Pulley and
that the Long Cable Trap (50) is turned to hold
the Cable in place. Tighten the M10 x 60mm
Bolt (7) and the M10 Nylon Locknut (not shown).
16. Route the Long Cable (23) around the 90mm
Pulley (15) attached to the Pulley Bracket (20).
Be sure that the Cable is in the groove of the
Pulley and that the Cable Trap (66) is turned
to hold the Cable in place. Tighten the M10 x
45mm Bolt (80) and the M10 Nylon Locknut (not
shown).
Be sure that the M8 x 115mm Bolt (68) is properly
tightened and that the Pulley Bracket (20) can
move freely.
17. See the inset drawing. Attach a 90mm Pulley (15)
and a Cable Trap (66) to the indicated hole in the
Long “U”-Bracket (57) with an M10 x 50mm Bolt
(12) and an M10 Nylon Locknut (21). Be sure
that the Cable Trap is inside the “U”-Bracket.
Note: This may come pre-assembled.
Route the Long Cable (23) between the 90mm
Pulley (15) and the Cable Trap (66). Be sure that
the Cable is in the groove of the Pulley and
that the Cable and Pulley move smoothly.
18. Note: The 90mm Pulley (15) in this drawing is
pre-assembled. It is shown disassembled for
easy part identification.
Route the Long Cable (23) around the 90mm
Pulley (15) attached to the bracket on the Top
Frame (55). Tighten the M10 x 45mm Bolt (80)
and the M10 Nylon Locknut (21). Be sure that
the Cable is in the groove of the Pulley and
that the Cable and Pulley move smoothly.
