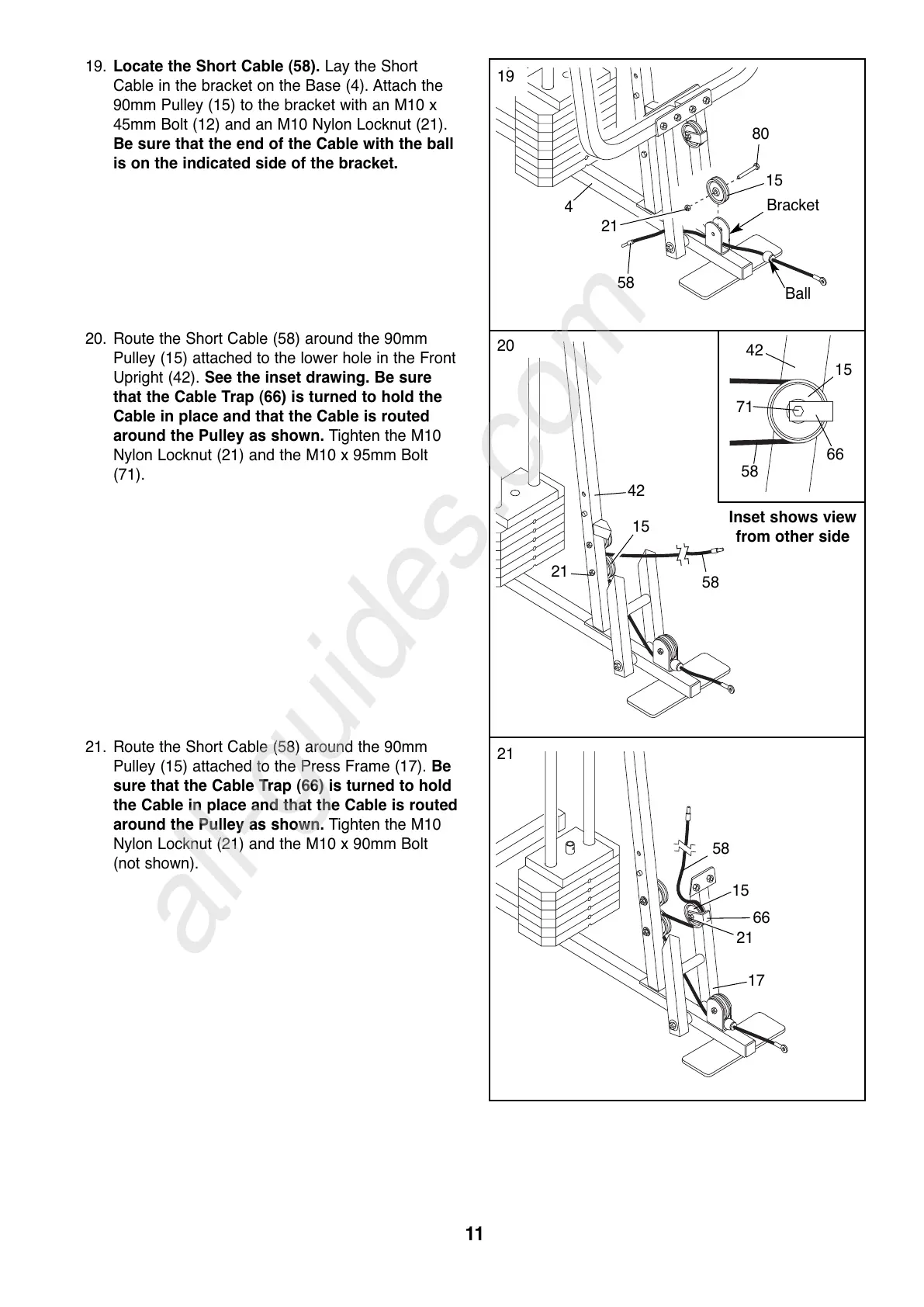

19. Locate the Short Cable (58). Lay the Short
Cable in the bracket on the Base (4). Attach the
90mm Pulley (15) to the bracket with an M10 x
45mm Bolt (12) and an M10 Nylon Locknut (21).
Be sure that the end of the Cable with the ball
is on the indicated side of the bracket.
20. Route the Short Cable (58) around the 90mm
Pulley (15) attached to the lower hole in the Front
Upright (42). See the inset drawing. Be sure
that the Cable Trap (66) is turned to hold the
Cable in place and that the Cable is routed
around the Pulley as shown. Tighten the M10
Nylon Locknut (21) and the M10 x 95mm Bolt
(71).
21. Route the Short Cable (58) around the 90mm
Pulley (15) attached to the Press Frame (17). Be
sure that the Cable Trap (66) is turned to hold
the Cable in place and that the Cable is routed
around the Pulley as shown. Tighten the M10
Nylon Locknut (21) and the M10 x 90mm Bolt
(not shown).
19
58
Bracket
Ball
15
80
21
4
21
58
58
21
15
66
21
17
42
15
71
58
Inset shows view
from other side
42
66
15
20
