Weider 8630 User Manual

10

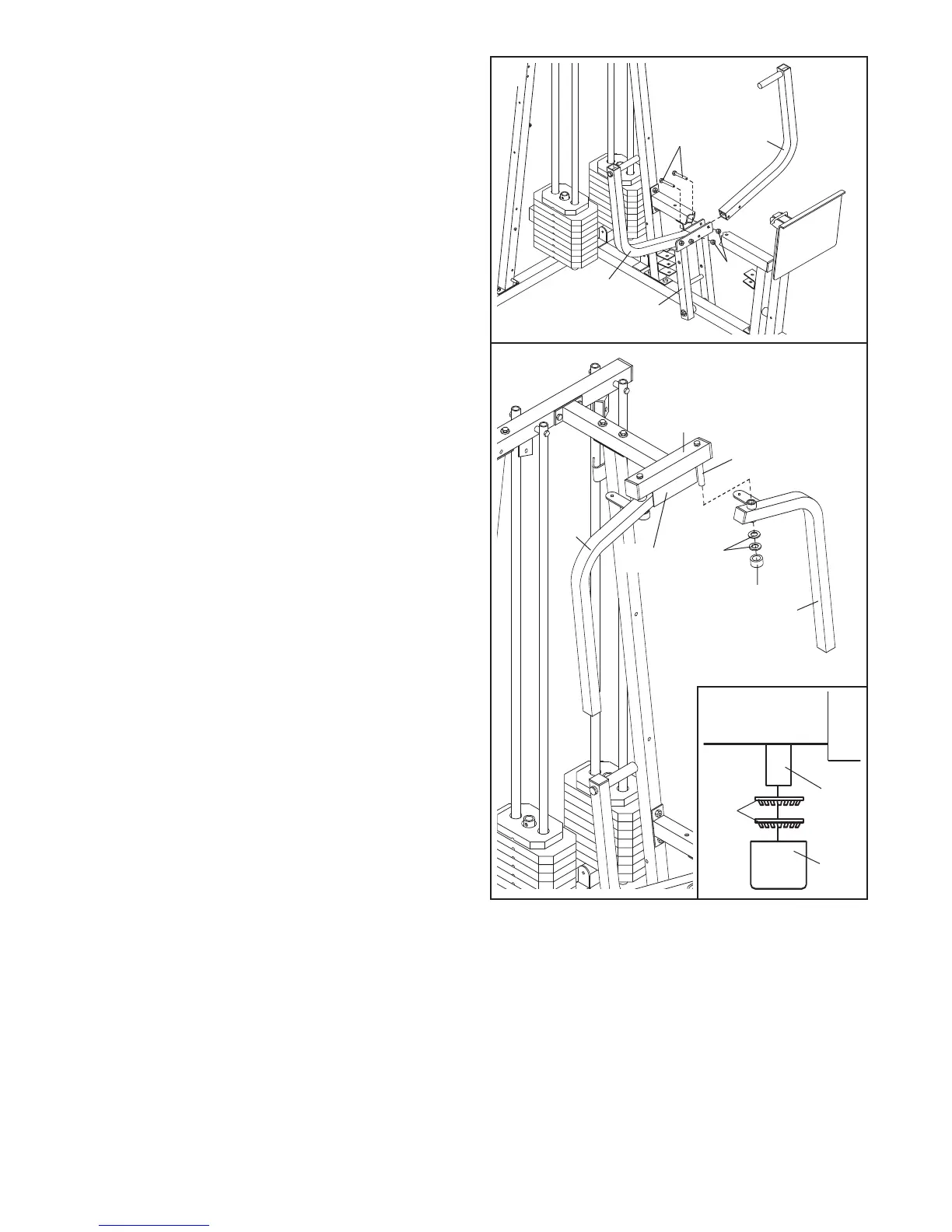

15. Attach a Press Arm (7) to one side of the Press
Frame (12) with two M8 x 63mm Bolts (39) and
t
wo M8 Nylon Locknuts (40).
A
ttach the other Press Arm (7) to the Press
Frame (12) in the same manner.
16. Lubricate both axles on the Butterfly Frame (3).
Identify the Right Fly Arm (5) and the Left Fly Arm
(6).
Slide the Left Fly Arm (6) onto the indicated axle.
Note: Do not to confuse the Left Fly Arm with
the Right Fly Arm (5). Make sure that the upper
end of the Left Fly Arm is behind the indicated
bracket on the Butterfly Frame (3).
IMPORTANT NOTE: Before assembling the
25mm Retainers (45) used in this step, make
sure that you thoroughly understand the step.
The Retainers can be assembled only once. If
they must be removed, you will need to order
new Retainers.
Tap two 25mm Retainers (45) and a 25mm
Round Outer Cap (46) onto the axle. Make sure
that the teeth on the Retainers bend toward
the Round Outer Cap, as shown in the inset
drawing.
Attach the Right Fly Arm (5) in the same man-
ner.
15
16
39
7
40
12
7
3
Lubricate Axle
Axle
6
5
45
46
Bracket
45
46

Weider 8630 Specifications

General

Stations	6
Weight Stack	125 lbs
Exercises	Over 30
Weight Capacity	300 lbs
Material	Steel frame
Warranty	90 days parts and labor
