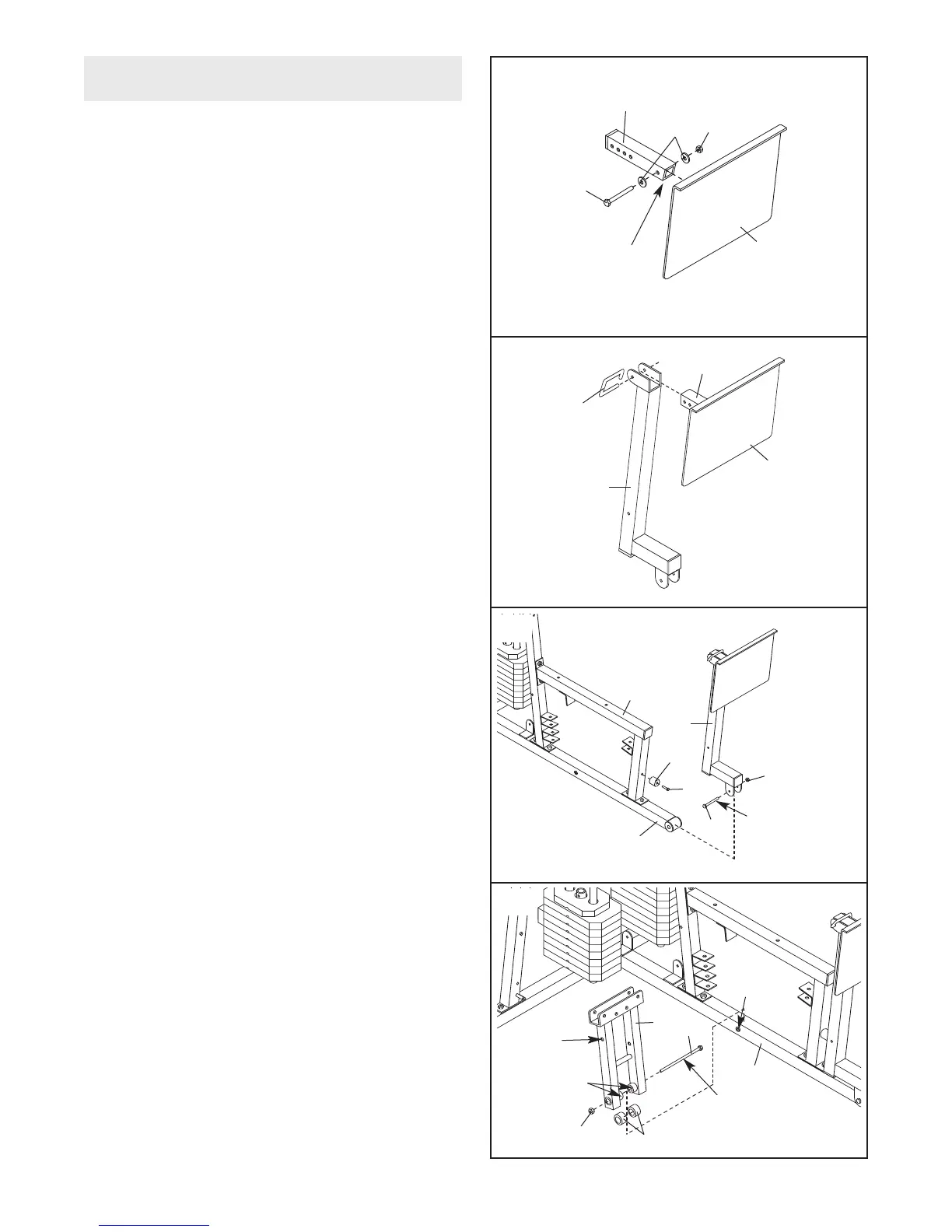

11. Locate and open the parts bag labeled “ARM
ASSEMBLY.”
A
ttach the Leg Press Plate (11) to the Adjustment
Tube (10) with an M8 x 60mm Bolt (62), two M8
Washers (20), and an M8 Nylon Locknut (40).
Make sure that the Leg Press Plate and
Adjustment Tube are oriented as shown.
12. Attach the Adjustment Tube (10) to the Leg Press
Arm (9) with the Lock Pin (73).
13. Attach the Leg Press Bumper (53) to the Front
Seat Frame (8) with the M5 x 25mm Tap Screw
(72).
Lubricate the M10 x 80mm Bolt (71) with grease.
Attach the Leg Press Arm (9) to the Press Base
(13) with the Bolt and an M10 Nylon Locknut (42).
Do not overtighten the Locknut; the Leg Press
Arm must be able to pivot easily.
14.
Press a 25mm x 22mm Plastic Bushing (54) onto
each welded spacer on the Press Frame (12).
Slide the Press Frame onto the Press Base (13)
so that the Plastic Bushings are aligned with the
indicated tube. Note: This will be a tight fit.
Make sure that the high hole is on the side
shown.
Lubricate the M10 x 195mm Bolt (52) with
grease. Attach the Press Frame (12) to the Press
Base (13) with the Bolt and an M10 Nylon
Locknut (42). Do not overtighten the Locknut;
the Press Frame must be able to pivot easily.
14
11
12
13
9
ARM ASSEMBLY
20
4
0
62
Obtuse
Angle
10
11
42
Lubricate
71
53
72
13
54
42
12
13
11
9
9
8
10
73
Lubricate
52
Tube
W
elded
Spacers
High
Hole

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Weider 8630 and is the answer not in the manual?

Weider 8630 Specifications

General IconGeneral
Stations6
Weight Stack125 lbs
ExercisesOver 30
Weight Capacity300 lbs
MaterialSteel frame
Warranty90 days parts and labor
