Weider 8630 User Manual

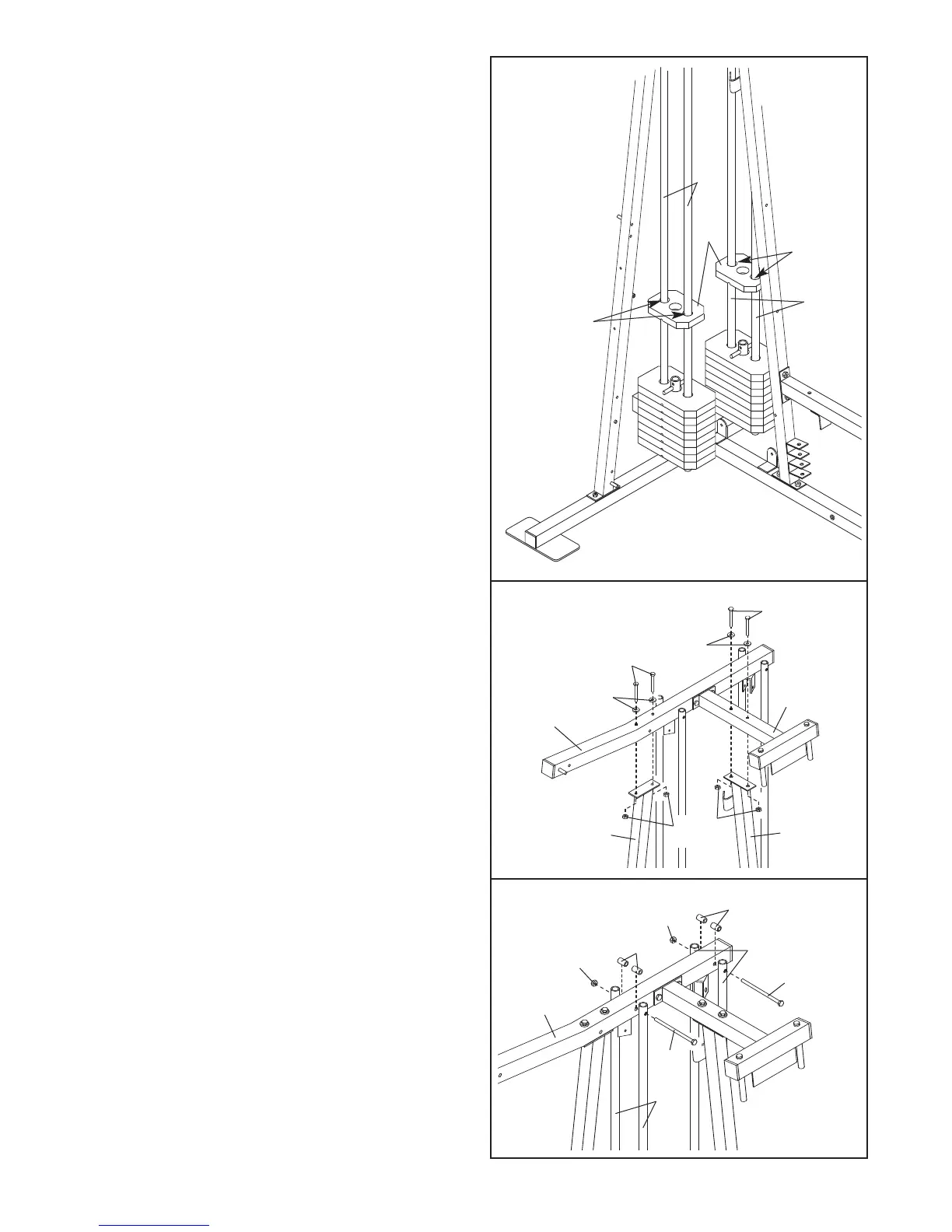

8. Lubricate the insides of the indicated holes in the
Top Weights (24) with the included grease. Slide
a
Top Weight onto each set of Weight Guides
(23).
9. Attach the Top Frame (2) to the Ab Upright (1)
with two M8 x 67mm Bolts (55), two M8 Washers
(20), and two M8 Nylon Locknuts (40).
Do not
tighten the Locknuts yet.
Attach the Butterfly Frame (3) to the Leg Press
Upright (4) with two M8 x 67mm Bolts (55), two
M8 Washers (20), and two M8 Nylon Locknuts
(40). Do not tighten the Locknuts yet.
10.
Attach the upper ends of one set of W
eight
Guides (23) to the Top Frame (2) with an M8 x
152mm Bolt (67), two 13mm x 19mm Spacers
(69), and an M8 Nylon Locknut (40).
Attach the upper ends of the other set of
W
eight Guides (23) to the T
op Frame (2) in the
same manner.
Tighten the M8 Nylon Locknuts (40) used in
steps 1–10.
8
10
8
23
Lubricate
Lubricate
23
23
69
40
67
67
40
2
69
24
23
9
55
55
20
20
40
40
4
3
2
1

Weider 8630 Specifications

General

Stations	6
Weight Stack	125 lbs
Exercises	Over 30
Weight Capacity	300 lbs
Material	Steel frame
Warranty	90 days parts and labor
