Weider 8700 I - Seat and Shroud Assembly

18

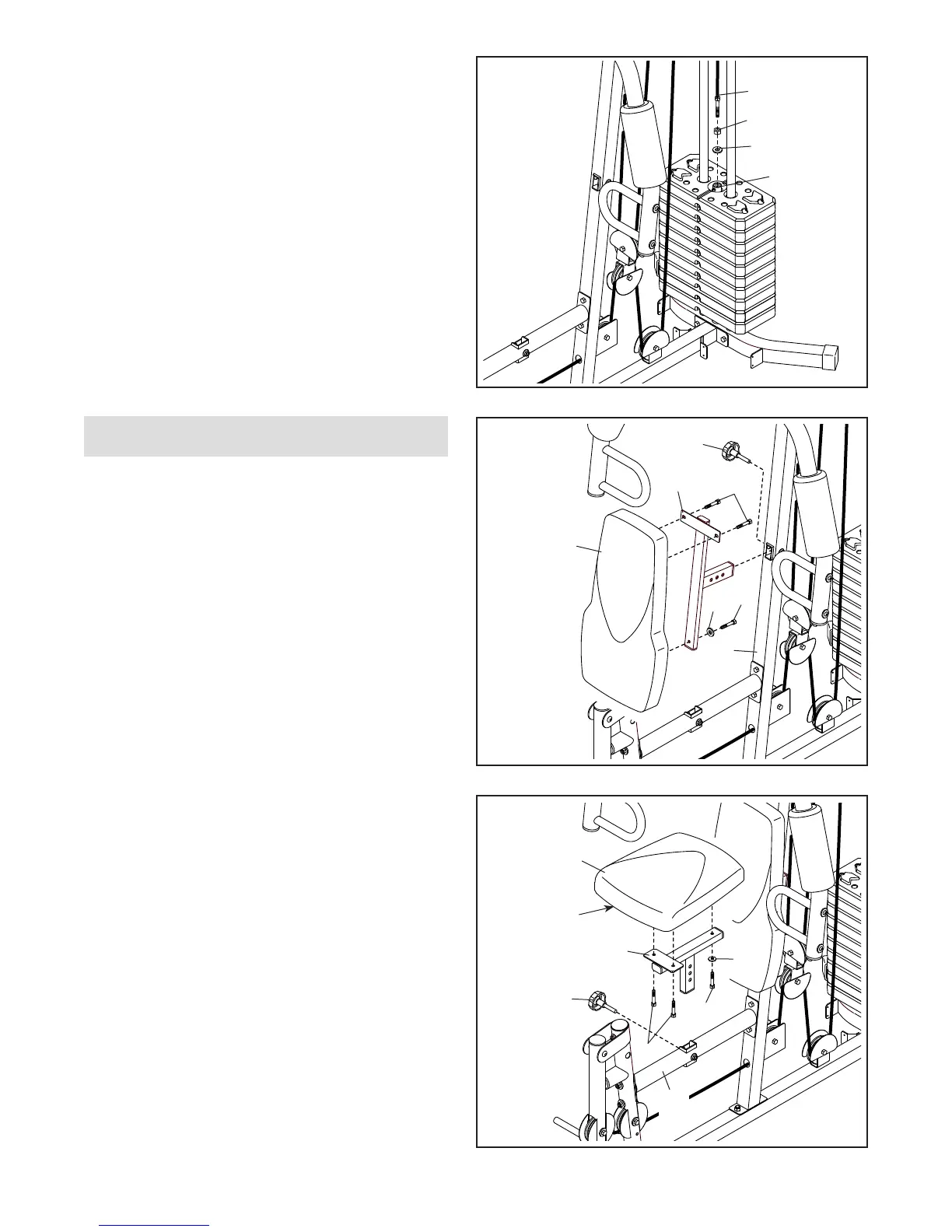

30. Thread an M12 Nut (84) all the way onto the
High Cable (55).
Place a Large Washer (85) on top of the Weight
Selector (24).
Tighten the High Cable (55) into the Weight
Selector (24) until all the slack is removed from
the cables.
Tighten the M12 Nut (84) against the Large
Washer (85).
55
84
85
24
31. Attach the Backrest (16) to the Backrest Frame
(61) with two M6 x 16mm Screws (62), an M6 x
32mm Screw (64), and an M6 Washer (82).
Insert the Backrest Frame (61) into the Upright
(3) and tighten a Long Knob (91) into the Upright
and one of the holes in the Backrest Frame.
31
32
16
64
61
62
82
3
Wide
End
91
30
15
73
91
62
6
Seat Assembly
95
82
32. Attach the Seat (15) to the Seat Frame (73) with
two M6 x 16mm Screws (62), an M6 x 38mm
Screw (95), and an M6 Washer (82).
Insert the Seat Frame (73) into the Seat Tube (6)
and tighten a Long Knob (91) into the Seat Tube
and one of the holes in the Seat Frame.
