19

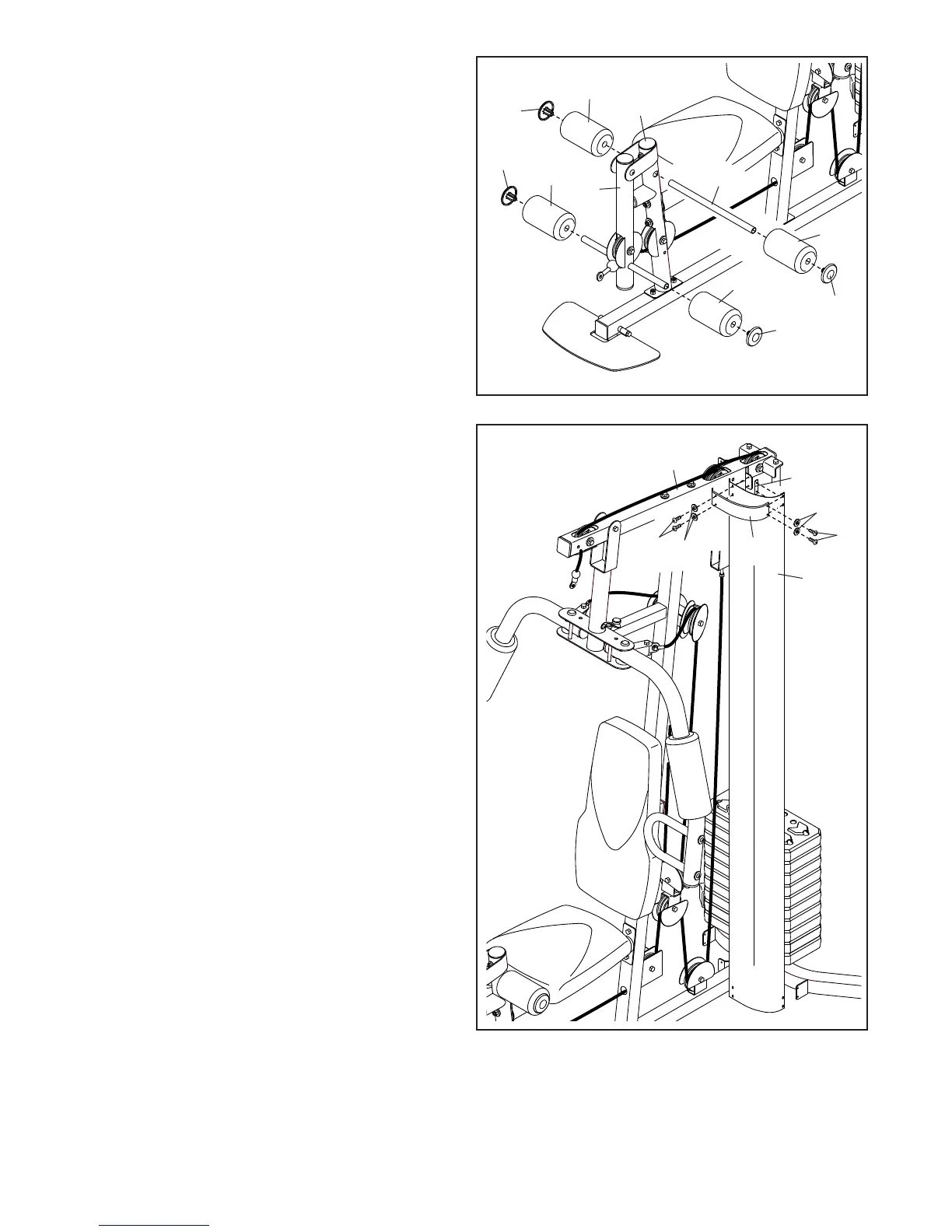

34. Attach a Shroud Support (19) and the top of the
Left Shroud (17) to the left side of the Top Frame
(4) with two M4.2 x 16mm Self-tapping Screws
(49) and two M4 Washers (33). Do not tighten
the Screws yet.
Then, attach a Shroud Clamp (90) to the top of
the Left Shroud (17) and the Shroud Support
(19) with two M4 x 12mm Screws (78) and two
M4 Washers (33). Do not tighten the Screws
yet.
33. Insert the Pad Tube (29) into the Front Leg (7).
Slide a Small Foam Pad (28) onto each side of
the Pad Tube (29). Then, press a Pad Cap (34)
into each Small Foam Pad.
Slide a Small Foam Pad (28) onto each end of
the Leg Lever (8). Then, press a Pad Cap (34)
into each Small Foam Pad.
33
34
29
7
8
28
28
34
78
49
33
90
33
34
34
34
28
28
4
19
17
