Weider 8700 I - Frame Assembly: Base and Uprights

7

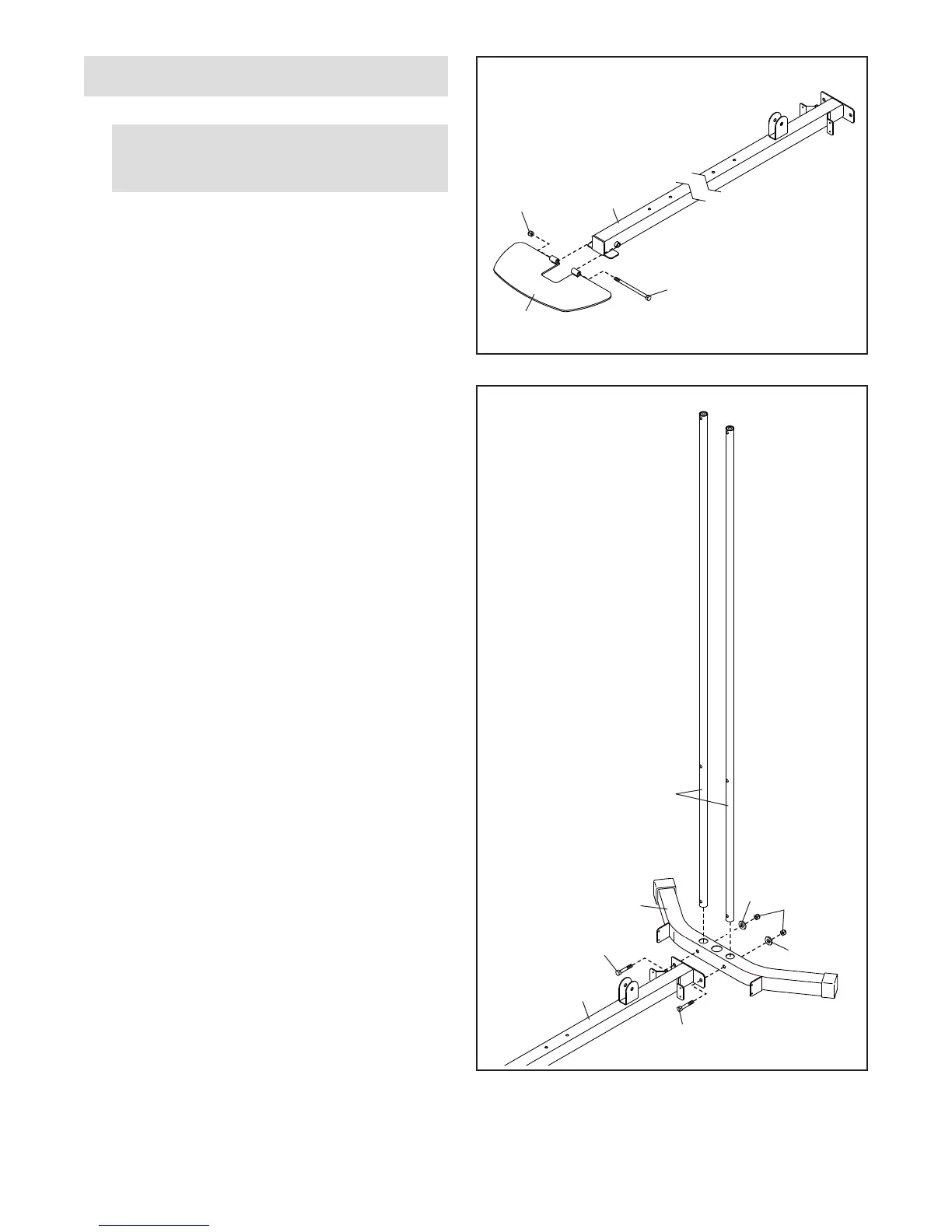

1.
Attach the Foot Plate (38) to the Base (1) with
an M10 x 130mm Bolt (72) and an M10 Locknut
(56). Do not overtighten the Locknut; the Foot
Plate must pivot easily.
1
1
38
2. Attach the Weight Guides (21) and the Base
(1) to the Stabilizer (2) with two M10 x 67mm
Bolts (71), two M10 Washers (57), and two M10
Locknuts (56). Do not tighten the Locknuts
yet.
2
56
71
71
2
57
57
21
56
72
To make assembly easier, read the
information on page 6 before you begin.
1
Frame Assembly
