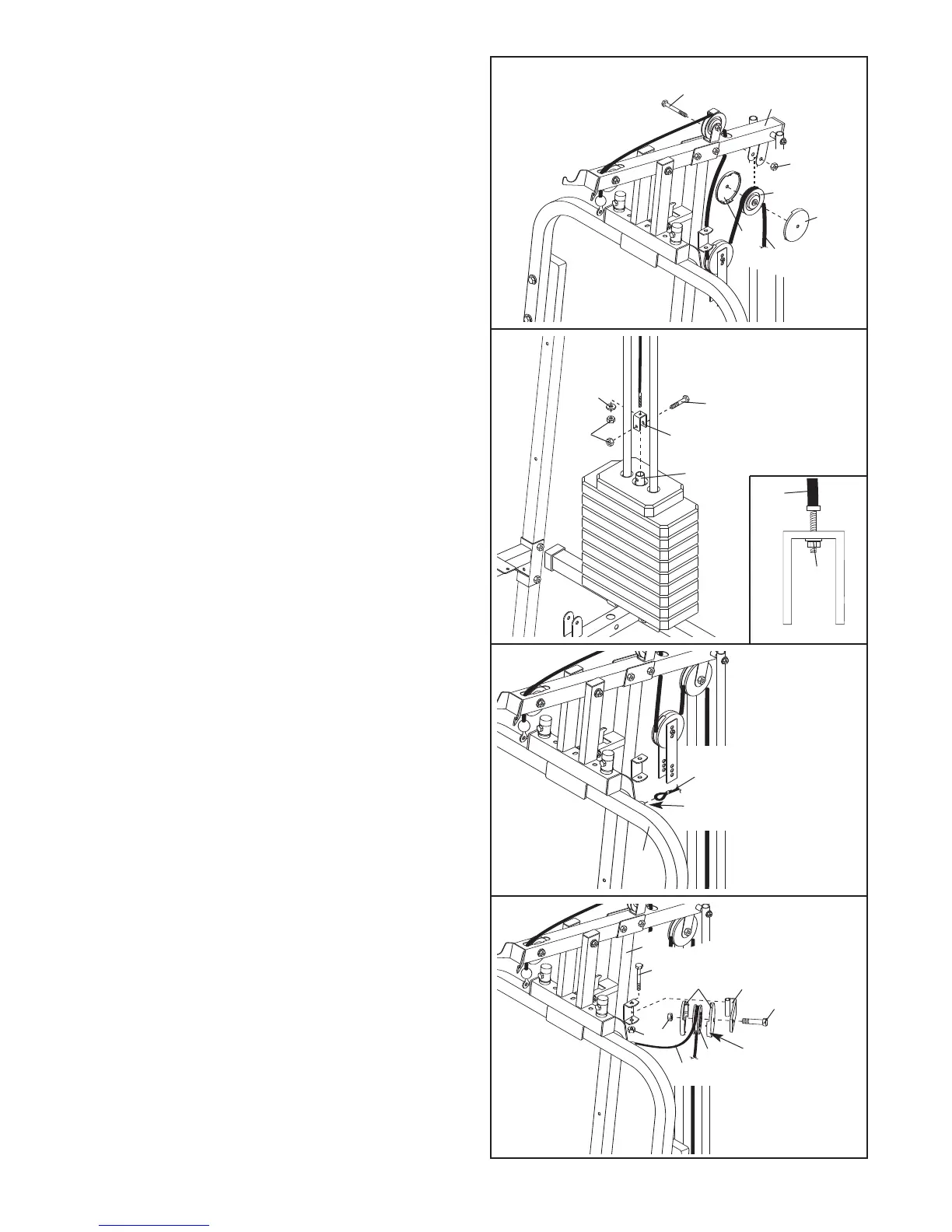

16. Locate the Press Cable (49). Slide the Cable
onto the hook on the Left Arm (7).
17.
Attach the Pulley Arm (38) to the Upright (3) with
an M10 x 78mm Bolt (54) and an M10 Nylon
Locknut (68). Do not overtighten the Locknut;
the Pulley Arm must be able to pivot easily.
W
rap the Press Cable (49) over a 90mm Pulley
(34). Attach the Pulley and a pair of Pulley
Covers (35) to the indicated side of a Pulley
Arm
(38) with an M10 x 52mm Bolt (52) and an M10
Nylon Locknut (68).
Make sure the large tabs
on the Pulley Covers are in the indicated posi-
tion.
15. Attach the end of the High Cable (50) to the
Small “U”-bracket (11) with an M8 Washer (71)
and an M8 Nylon Locknut (69). Note: Do not
completely tighten the Locknut; it should be
threaded onto the Cable so that two threads
show past the Locknut, as shown in the inset
drawing.
Attach the Small “U”-bracket (11) to the Weight
Tube (12) with an M8 x 45mm Bolt (60) and an
M8 Nylon Locknut (69).
Do not overtighten the
Locknut; the Weight Tube must be able to
pivot in the Small “U”-bracket.
14. Wrap the High Cable (50) over a 90mm Pulley
(34). Attach the Pulley and a pair of Pulley
C
overs (35) to the bracket on the Top Frame (4)
with an M10 x 52mm Bolt (52) and an M10 Nylon
L
ocknut (68). M
ake sure the small tabs on the
Pulley Covers are on bottom.
