13

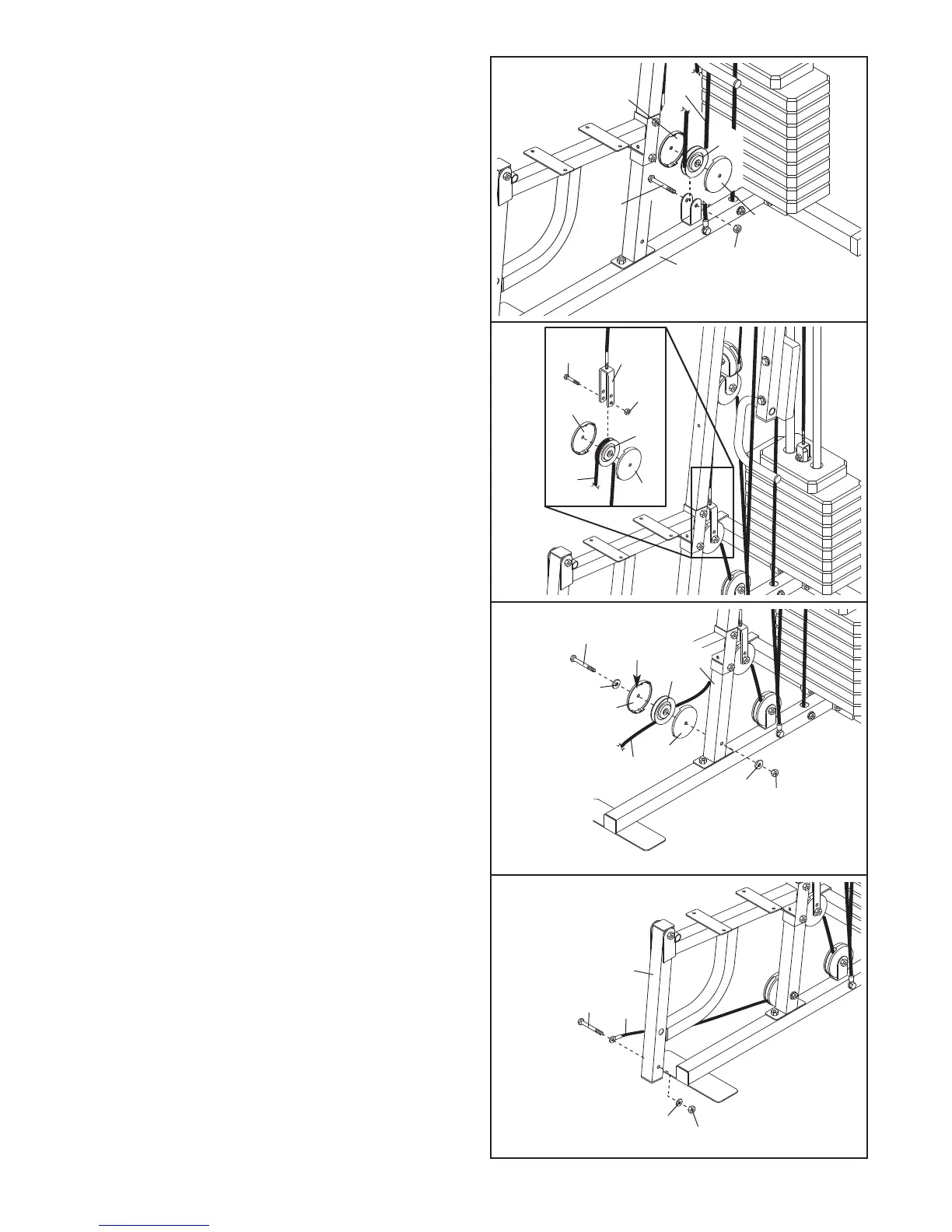

27. Route the Low Cable (48) over a 90mm Pulley
(34). Attach the Pulley and a pair of Pulley
Covers (35) to the lower set of holes in the “U”-
bracket (43) with an M10 x 52mm Bolt (52) and
an M10 Nylon Locknut (68).
Make sure the small
tabs on the Pulley Covers are on bottom.
28. Route the Low Cable (48) under a 90mm Pulley
(34). Attach the Pulley and a pair of Pulley
Covers (35) to the Upright (3) with an M10 x
100mm Bolt (46), two M10 Washers (70), and an
M10 Nylon Locknut (68). Make sure the large
tabs on the Pulley Covers in the indicated
position.
26. Wrap the Low Cable (48) under a 90mm Pulley
(34). Attach the Pulley and a pair of Pulley Covers
(
35) to the bracket on the Base (1) with an M10 x
52mm Bolt (52) and an M10 Nylon Locknut (68).
M
ake sure the small tabs on the Pulley Covers
are on top.
3
5
35
68
34
1
48
52
26
34
48
35
35
52
43
68
27
Large
Tab
48
70
70
68
35
35
34
3
28
29. Attach the Low Cable (48) to the Leg Lever (9)
with the M8 x 64mm Shoulder Bolt (56), an M8
Washer (71), and an M8 Nylon Locknut (69).
71
9
69
46
56
48
29
To Next Page
