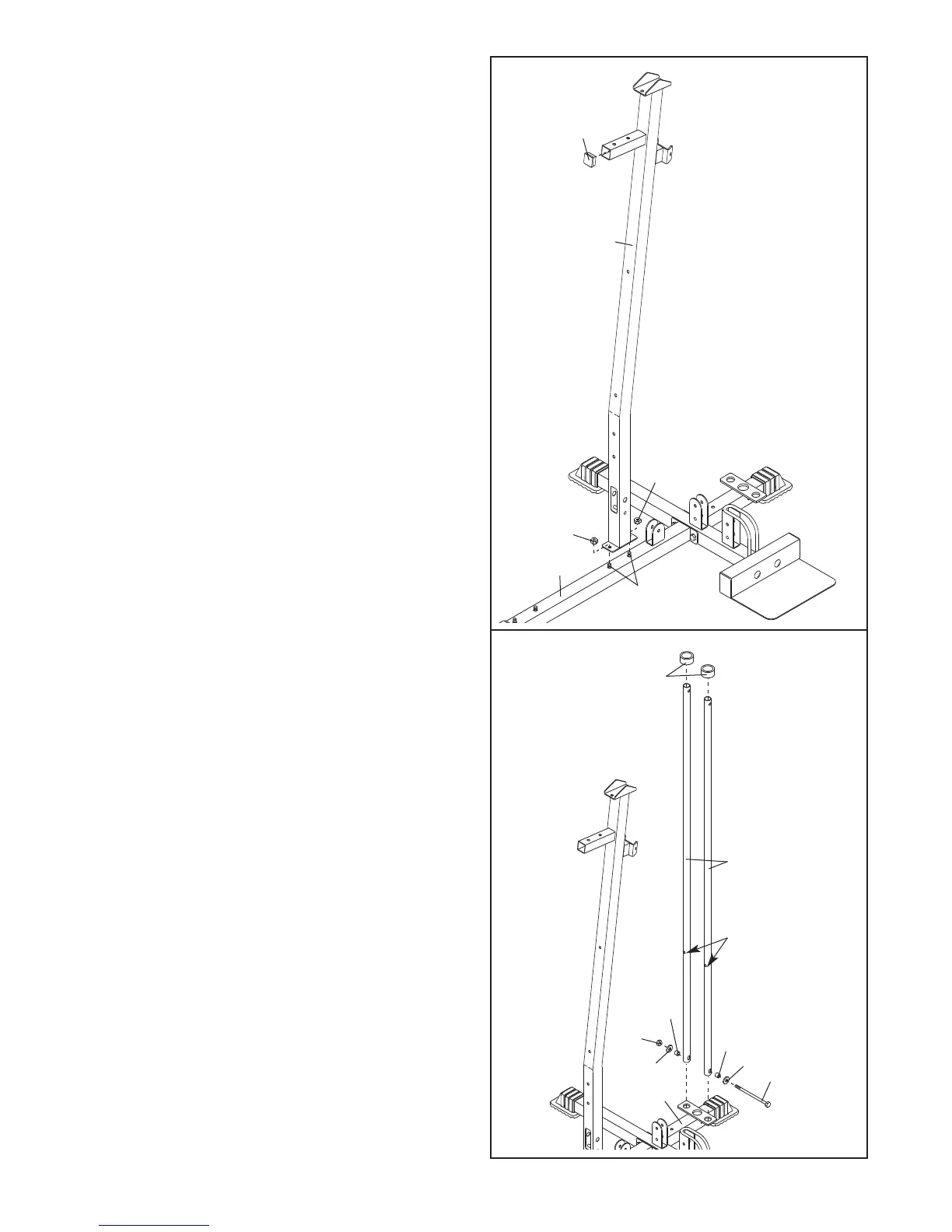

3. Press a 38mm Square Inner Cap (41) into the
tube on the Front Upright (6).
Attach the Front Upright (6) to the Front Base (1)
w
ith the two indicated M10 x 65mm Carriage
Bolts (57) and two M10 Nylon Locknuts (71). Do
not tighten the Locknuts yet.
4. Insert the two Weight Guides (31) into the indicat-
ed holes in the Rear Base (3) and secure them
with an M10 x 155mm Bolt (67), two M10
Washers (26), two 19mm Spacers (78), and an
M10 Nylon Locknut (71). Make sure that the
holes in the Weight Guides are closer to the
bottom. Do not overtighten the Locknut.
Slide two Weight Bumpers (32) onto the Weight
Guides (31).
3
4
1
6
4
1
57
71
71
26
26
78
78
67
31
32
3
71
Holes
To Next Page
