10

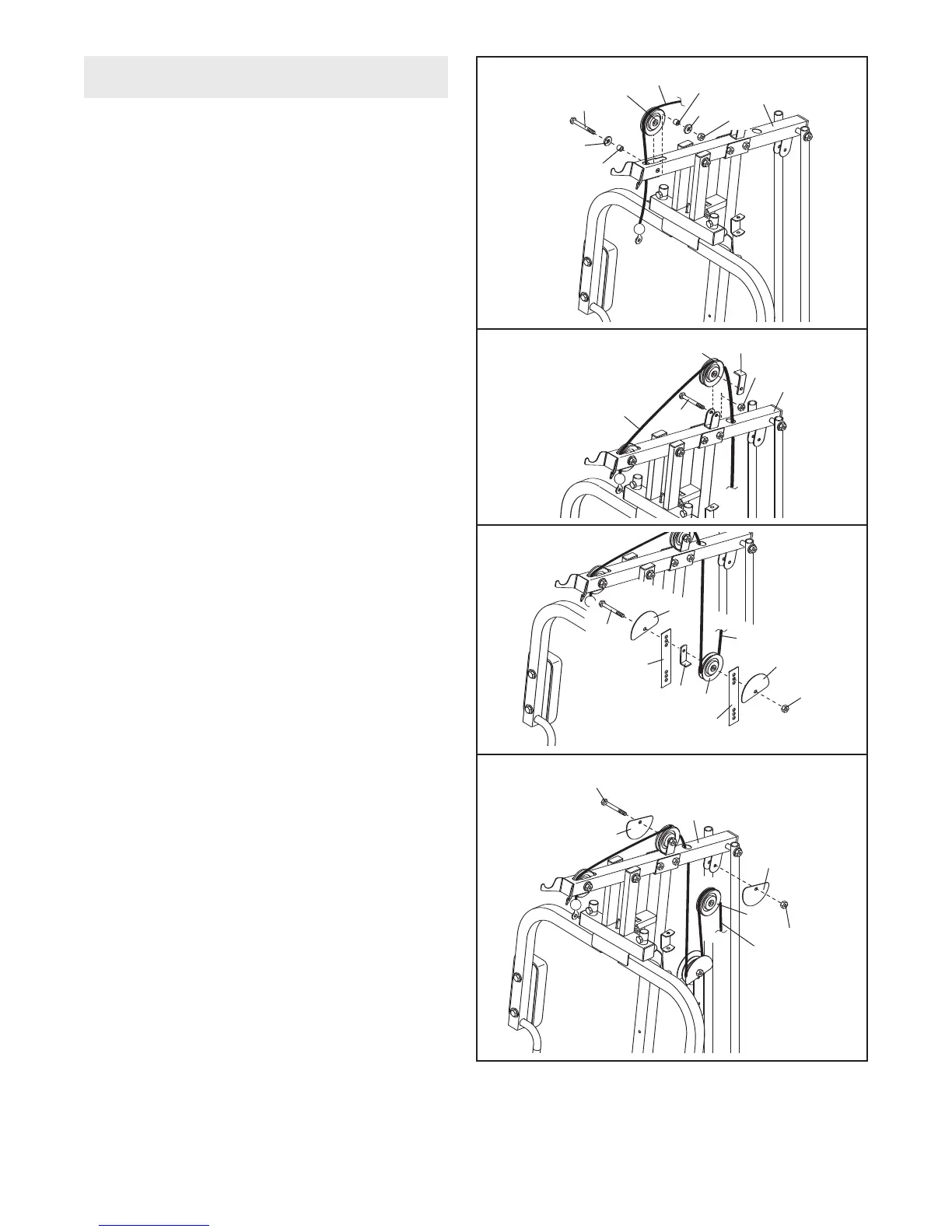

11. Route the High Cable (50) over a 90mm Pulley
(34) and down through the Top Frame (4).
Attach the Pulley and a Cable Trap (36) to the
bracket on the Top Frame with an M10 x 52mm
Bolt (52) and an M10 Nylon Locknut (68). Make
sure the Cable Trap is oriented to hold the
Cable in the groove of the Pulley.
12. Route the High Cable (50) under a 90mm
Pulley (34). Attach the Pulley, a Cable Trap
(36), and two Finger Guards (35) to the second
set of holes from the top of the two Pulley
Plates (44) with an M10 x 52mm Bolt (52) and
an M10 Nylon Locknut (68). Make sure that
the Cable Trap is oriented to hold the Cable
in the groove of the Pulley.
10. See the CABLE DIAGRAM on page 18 for
proper cable routing.
I
dentify the High Cable (50). R
oute the
threaded shaft end of the Cable up through the
Top Frame (4) and over a 90mm Pulley (34).
Attach the Pulley inside the Top Frame with an
M10 x 65mm Bolt (55), two M10 Washers (70),
two Small Spacers (37), and an M10 Nylon
Locknut (68).
36
52
50
34
68
4
50
34
3
7
3
7
70
70
68
55
4
11
68
44
36
44
35
35
34
50
12
52
CABLE ASSEMBLY
10
13. Route the High Cable (50) over a 90mm Pulley
(34). Attach the Pulley and two Finger Guards
(35) to the Top Frame (4) with an M10 x 46mm
Bolt (53) and an M10 Nylon Locknut (68).
68
50
34
35
35
4
53
13
To Next Page
