12

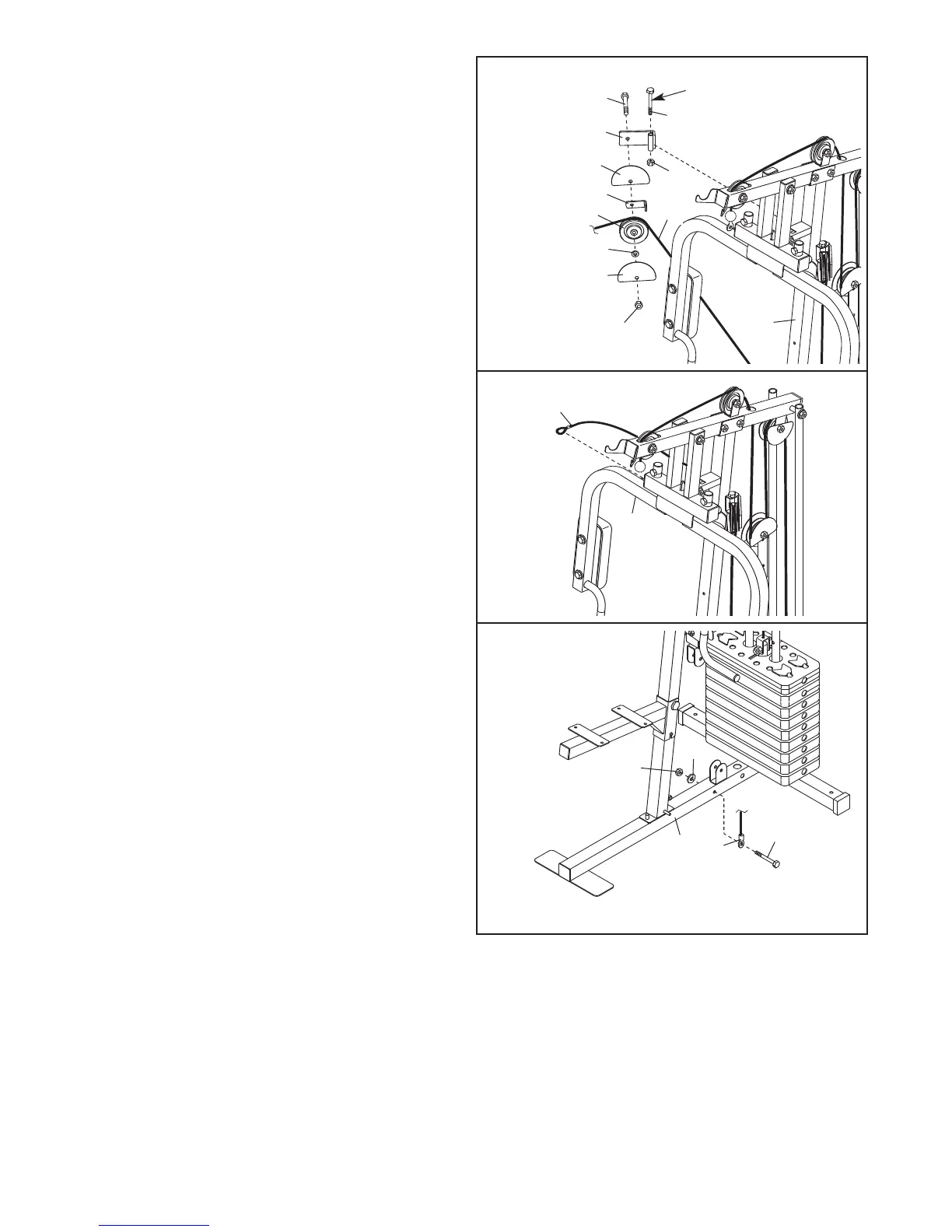

18. Apply grease to an M10 x 78mm Bolt (54).
Attach a Pulley Arm (38) to the Upright (3) with
t
he Bolt and an M10 Nylon Locknut (68). D
o
not overtighten the Nylon Locknut; the
P
ulley Arm must pivot easily.
Route the Press Cable (49) over a 90mm Pulley
(34). Attach the Pulley, a Cable Trap (36), an
M10 Washer (70), and two Finger Guards (35)
to the indicated side of the Pulley Arm (38) with
an M10 x 52mm Bolt (52) and an M10 Nylon
Locknut (68).
Make sure that the Cable Trap
is oriented to hold the Cable in the groove
of the Pulley.
35
36
4
9
52
3
8
6
8
68
3
54
G
rease
34
35
70
19. Slide the end of the Press Cable (49) onto the
hook on the Right Arm (6).
49
6
20
20. Identify the Short Cable (47). Attach the eye-
let on the Cable to the Base (1) with an M10 x
70mm Bolt (57), an M10 Washer (70), and an
M10 Nylon Locknut (68). Do not overtighten
the Nylon Locknut.
57
70
68
47
1
18
19
To Next Page
