Weider 900 - Page 8

8
8
56
3
30
6

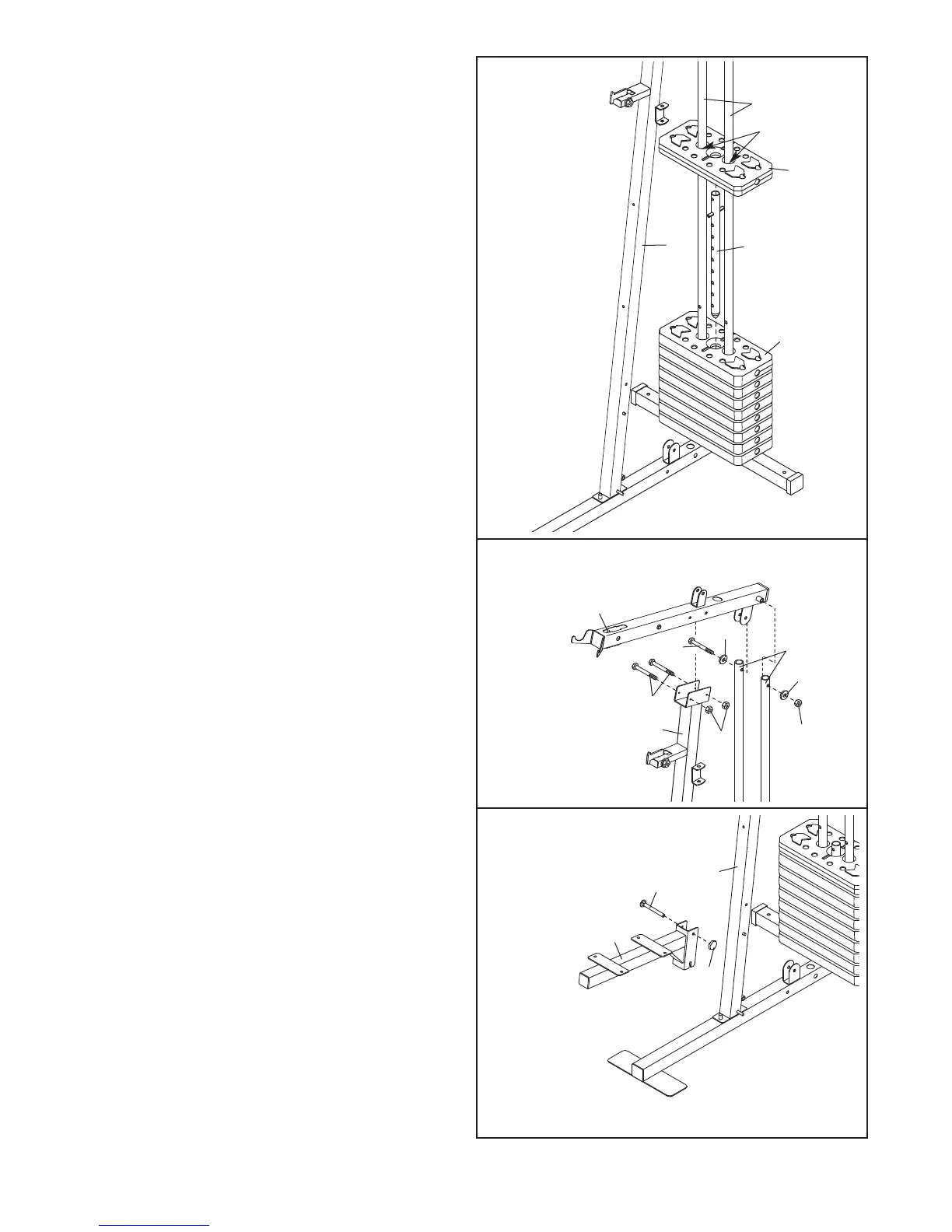

6. Attach the Seat Frame (8) to the Upright (3)
with an M8 x 70mm Carriage Bolt (56) and an
M8 Knob (30).
10
68
70
63
69
62
3
4
70
5
4
15
3
12
15
10
Lubricate
4. Slide eight Weights (15) onto the Weight
Guides (10), with the slot for the Weight Pin
(
not shown) on the bottom and on the side fac-
ing away from the Upright (3).
Insert the Weight Tube (12) into the Weights
(15).
Lubricate the indicated holes in a Weight (15)
with grease. Slide the Weight onto the Weight
Guides (10).
5. Attach the Top Frame (4) to the Upright (3) with
two M8 x 68mm Bolts (63) and two M8 Nylon
Locknuts (69). Do not tighten the Nylon
Locknuts yet.
Attach the Top Frame (4) between the Weight
Guides (10) with an M10 x 155mm Bolt (62),
two M10 Washers (70), and an M10 Nylon
Locknut (68).
Tighten the Nylon Locknuts (68, 69) used in
steps 2 and 5.
