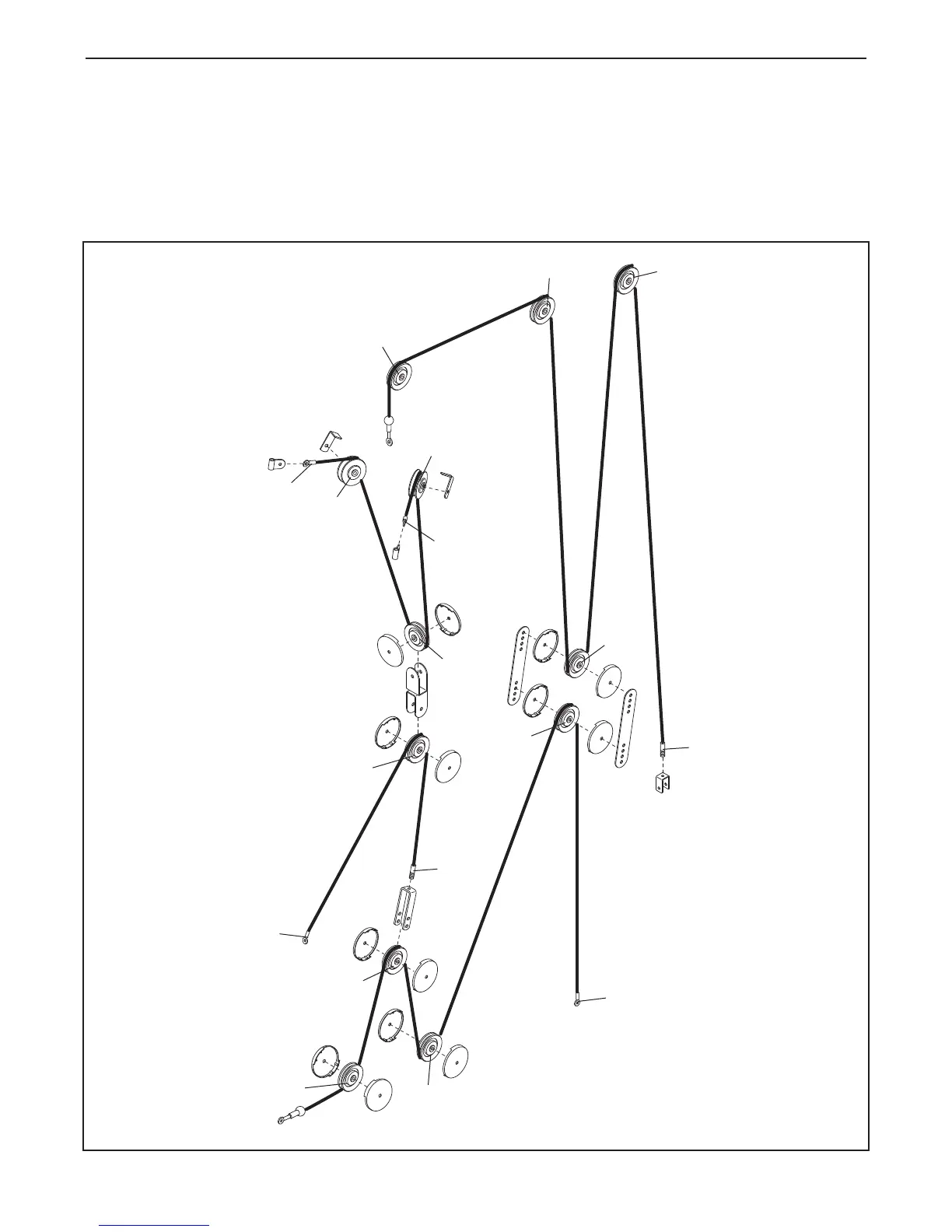

CABLE DIAGRAM
The cable diagram below shows the proper routing of the Butterfly Cable (55), the Low Cable (56), the High
Cable (57), and the Short Cable (94). Use the diagrams to make sure that the cables and the cable traps have
b
een assembled correctly. If the cables have not been correctly routed, the weight system will not function prop-
erly and damage may occur. The numbers show the correct route for each cable.
Make sure that the cable
traps do not touch or bind the cables.
1
1
2
3
1
1
2
2
3
3
4
5
2
4
3
5
4
5
High Cable (57)
Length: 3.68m
Butterfly Cable (55)
Length: 1.34m
Short Cable (94)
Length: 1.44m
Low Cable (56)
Length: 2.07m
