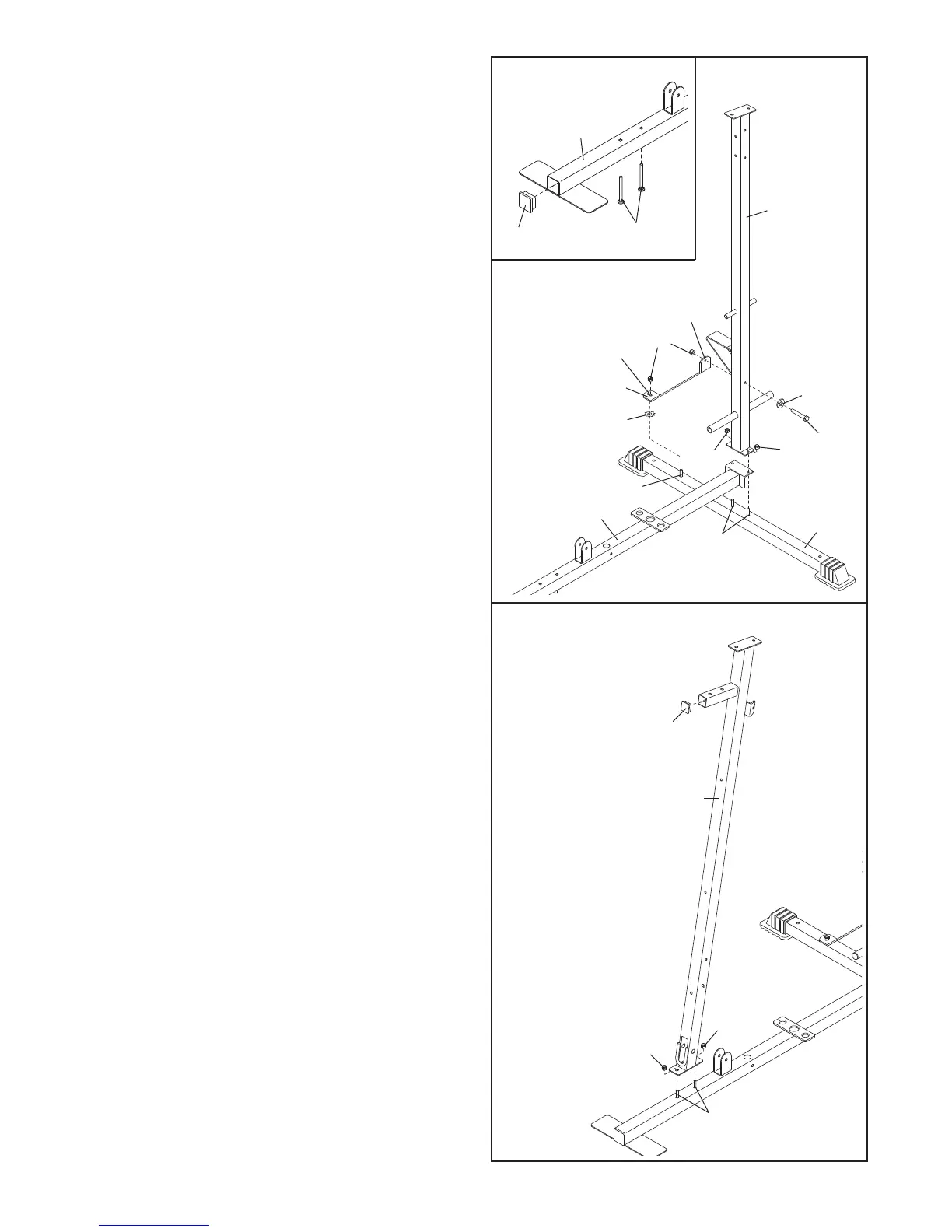

2. See the inset drawing. Press a 50mm Square
Inner Cap (31) into the Base (1). Insert two M10 x
6
5mm Carriage Bolts (81) up through the Base. I
t
may be helpful to place a piece of tape over
t
he bolt head to hold it in place.
Attach the Base (1) and the Rear Upright (3) to
the Stabiliser with the indicated M8 x 67mm
Carriage Bolts (82) and two M8 Nylon Locknuts
(73). Do not tighten the Locknuts yet.
Attach the Support Bracket (33) to the M10 x
67mm Carriage Bolt (107) with an M10 Star
Washer (92) and an M10 Nylon Locknut (72).
Do
not tighten the Locknuts yet.
Orient the Support Bracket (33) as shown. Attach
the Support Bracket to the Rear Upright (3) with
an M10 x 72mm Bolt (89), an M10 Washer (71),
and an M10 Nylon Locknut (72).
Do not tighten
the Locknuts yet.
2
3
3
81
71
89
73
73
72
33
92
1
31
1
2
82
107
29
72
81
72
4
6
3. Press a 38mm Square Inner Cap (29) into the
Front Upright (4).
Attach the Front Upright (4) to the Base (1) with
the indicated M10 x 65mm Carriage Bolts (81)
and two M10 Nylon Locknuts (72).
Do not tight-
en the Locknuts yet.
Hole
Slot
