Weider CJXT3 - Cable Diagram

7
14

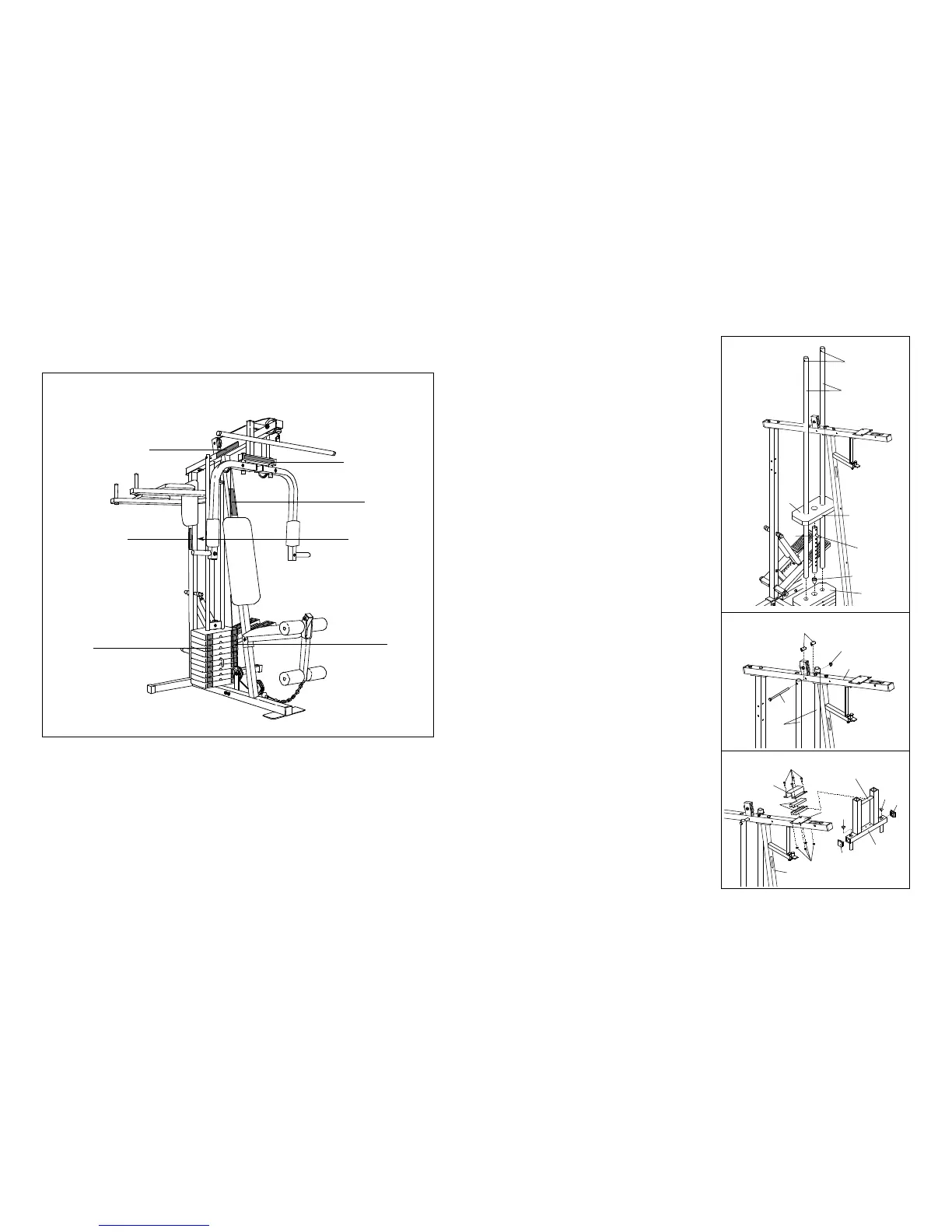

33. Remove the decals from the decal sheet (not shown) and apply them to the Master Trainer as shown in the
diagram below.
9
10
11
79
Pin Groove
Welded Pin
80
72
Upper Ends of
Weight Guides
have Holes
25
25
72
67
74
73
3
44
68
67
49
49
42
69
7
18
44
Lubricate
52
9. Press the Weight Tube Endcap (79) into the indi-
cated end of the Weight Tube (80).
Insert the Weight Tube (80) into the stack of
Weights (25). Slide the tenth Weight (25) onto the
upper end of the Weight Tube. The Weight Tube
must be turned so the welded pin is in the pin
groove in the Weight.
Locate the lower ends of the Weight Guides (72)
(there are holes near the upper ends). Insert the
lower ends of the Weight Guides into the ten
Weights (25).
10. Attach the upper ends of the Weight Guides (72)
to the Top Frame (67) with the 5/16” x 6” Bolt
(74), the two 1/2” x 3/4” Bushings (73), and a
5/16” Nylon Locknut (3).
11. Press two 1 3/4” Inner Caps (44) and two 1”
Round Inner Caps (49) into the Arm Frame (52).
Lubricate the upper axle on the Arm Frame (52).
Hold the axle between the two Arm Frame
Bushings (68). Set the Arm Frame Bushings and
the Arm Frame on the welded plate on the Top
Frame (67). Place the Arm Frame Bracket (69)
over the Arm Frame Bushings. Attach the Arm
Frame Bracket to the Top Frame with four 1/4” x
3/4” Screws (18) and 1/4” Nylon Locknuts (7).
34. Make sure that all parts are properly tightened. The use of all remaining parts will be explained in ADJUST-
MENT, beginning on page 15 of this manual. Before using the weight system, pull each cable a few times to
make sure that the cables move smoothly over the pulleys. If one of the cables does not move smoothly,
locate and correct the problem before using the weight system. IMPORTANT: If the cables are not proper-
ly routed, they may be damaged when heavy weight is used. See the CABLE DIAGRAM on page 19
of this manual.
CJXT3 Master Trainer
STATION 2
Vertical AB/Flex
Power 200 LBS
Max Bench Press
STATION 1
Multi-Gym
STATION 3
Aerobic Stepper
33
12.5
25
37.5
50
62.5
75
87.5
100
112.5
125
20
40
60
80
100
120
140
160
180
200
