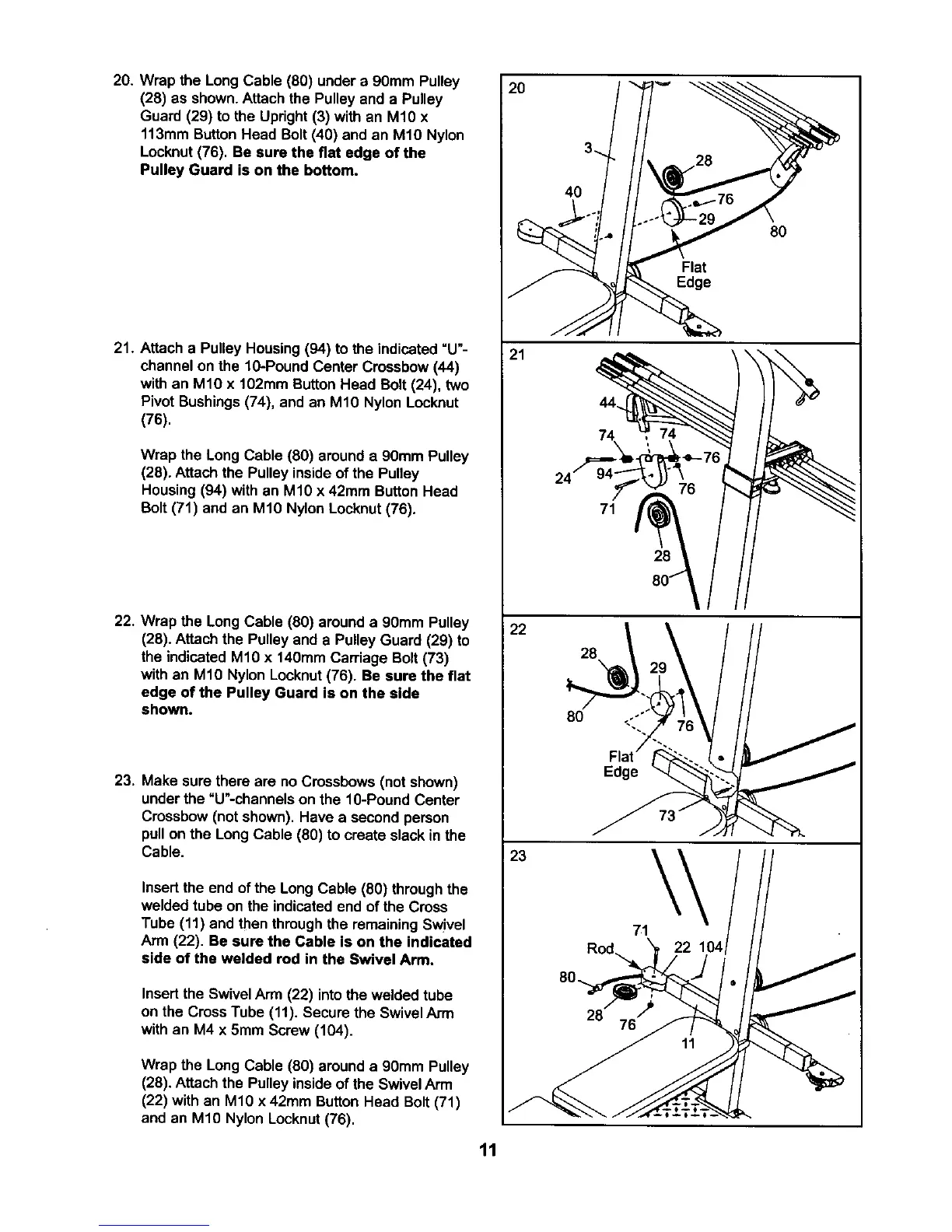

20. Wrap the Long Cable (80) under a 90mm Pulley
(28) as shown. Attach the Pulley and a Pulley
Guard (29) to the Upright(3) with an M10 x
113mm ButtonHead Bolt (40) and an M10 Nylon
Locknut(76). Be sure the fiat edge of the
Pulley Guard is on the bottom.
21. Attach a Pulley Housing (94) to the indicated "U'-
channel on the lO-Pound Center Crossbow (44)
with an M10 x 102mm ButtonHead Bolt (24), two
Pivot Bushings(74), and an M10 Nylon Locknut
(76).
Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley insideof the Pulley
Housing(94) withan M10 x 42mm Button Head
Bolt (71) and an M10 Nylon Locknut(76).
22. Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley and a PulleyGuard (29) to
the indicatedM10 x 140mm Carriage Bolt (73)
with an M10 Nylon Locknut(76). Be sure the fiat
edge of the Pulley Guard is on the side
shown.
23. Make sure there are no Crossbows (not shown)
underthe "U"-channels on the 10-Pound Center
Crossbow(not shown). Have a second person
pullon the Long Cable (80) to create slack inthe
Cable.
Insertthe end of the Long Cable (80) throughthe
welded tube on the indicatedend of the Cross
Tube (11) and then throughthe remainingSwivel
Arm (22). Be sure the Cable is on the indicated
side of the welded rod in the Swivel Arm.
Insertthe Swivel Arm (22) into the welded tube
on the CrossTube (11). Secure the Swivel Arm
with an M4 x 5mm Screw (104).
Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley insideof the Swivel Arm
(22) with an M10 x 42mm ButtonHead Bolt (71)
and an M10 Nylon Locknut(76).
2O
21
22
23
11
71
28
80
Edge
71
80..
28
76
28
Flat
Edge
22
80
