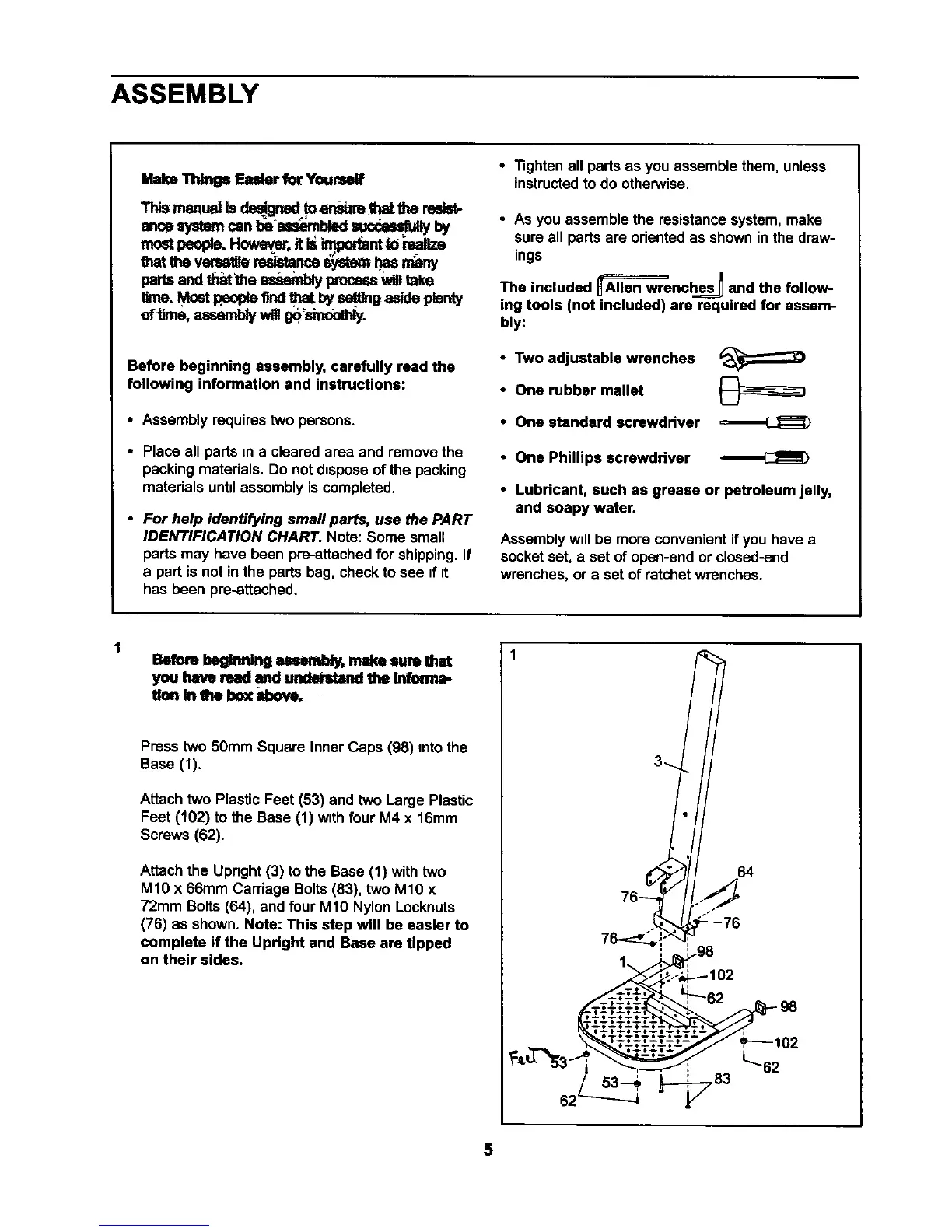

ASSEMBLY
• Tightenall parts as you assemble them. unless
Make Thk'tg= F.al_r for Youmeif instructedtodo otherwise.
TNsm_ual _s€_ned.to_ thatmerest-
ante_ canhe'assembleds_ by
mostpeople, However,it I_,i_= ntt0 reallz8
thatthe versatilere,stance system has r_ny
partsandtt_t'theas_ pro=='_ll take
Ume.M_t _op_ _ _at Ws6_ngask_pk_ty
of_. assemUy_ g0_=_t_y.
Before beginning assembly, carefully read the
following information and instructions:
• Assembly requires two persons.
• Place all parts m a cleared area and remove the
packingmaterials. Do notd_sposeofthe packing
materialsuntilassembly is completed.
• For help identifying small parts, use the PART
IDENTIFICATION CHART. Note: Some small
parts may have been pre-attached for shipping.If
a part is not in the parts bag. check to see if it
has been pre-attached.
• As you assemble the resistance system, make
sure all parts are odented as shown in the draw-
ings
The included IAIlen wrenche.e.e.e.e.e.e.e.e_and the follow-
ing tools (not included) are required for assam-
bly:
• Two adjustable wrenches
• One rubber mallet
• One standard screwddver
• One Phillips screwdriver
• Lubricant, such as grease or petroleum jelly,
and soapy water.
Assemblywillbe more convenient if you have a
socketset, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Befo_ l=_=Nng a=._bly, make=amthat
youhayedraad =nd nmda_,_tand_ _
lion In lIND_
Press two 50mm Square Inner Caps (98) into the
Base (1).
Attach two Plastic Feet (53) and two Large Plastic
Feet (102) to the Base (1) w=thfour M4 x 16mm
Screws (62).
Attach the Upnght (3) to the Base (1) withtwo
M10 x 66ram Carriage Bolts(83), two M1O x
72mm Bolts (64). and four M10 Nylon Locknuts
(76) as shown. Note: This step will be easier to
complete if the Updght and Base are tipped
on their sides.
1
3
64
76
o_,_," 76
_o_--- 102
J 63 L62
5
