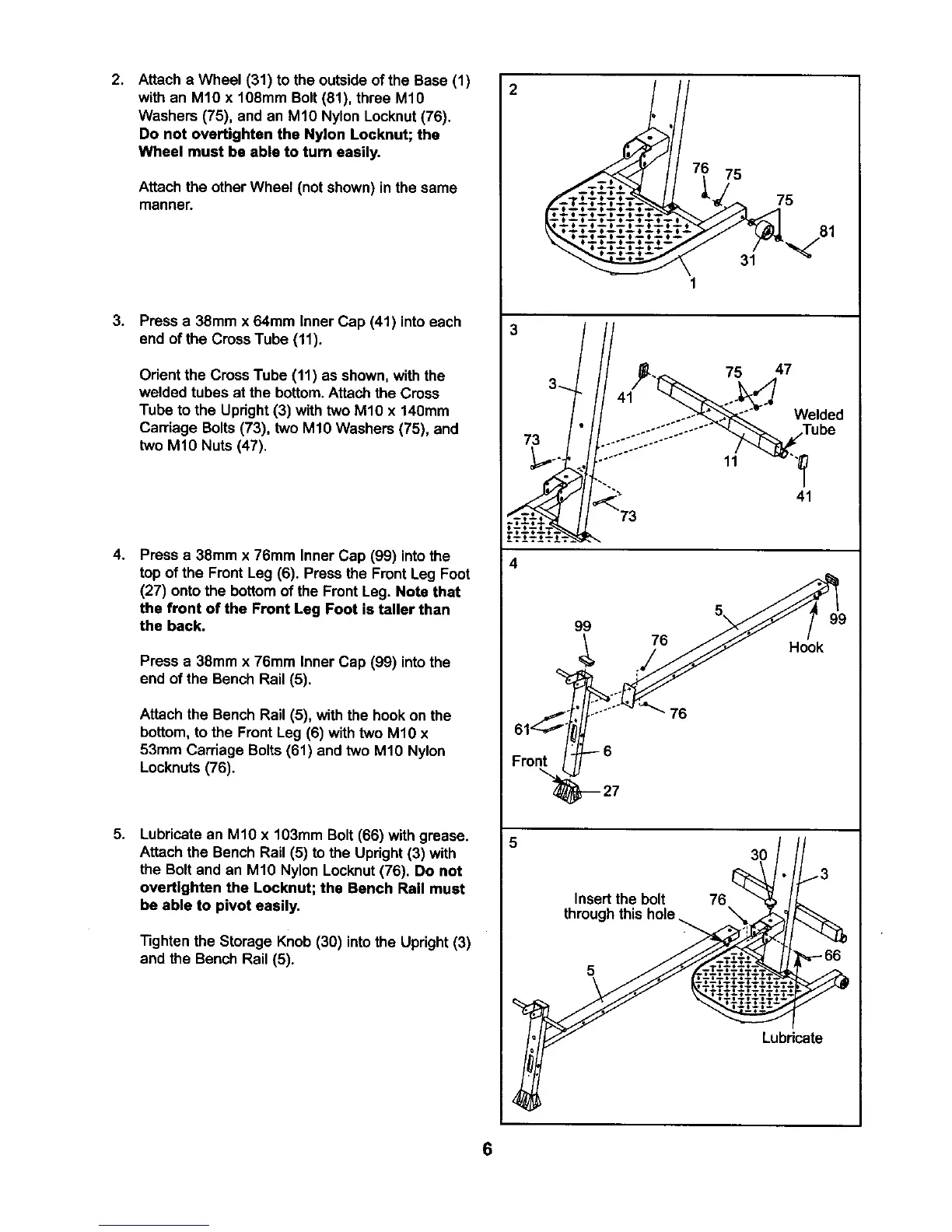

2.
Attach a Wheel (31) to the outside of the Base (1)
with an M10 x 108mm Bolt (81), three M10
Washers (75), and an M1O Nylon Locknut(76).
Do not overtighten the Nylon Locknut; the
Wheel must be able to turn easily.
Attach the other Wheel (not shown) in the same
manner.
3.
Pressa 38mm x 64mm inner Cap (41) into each
end of the Cross Tube (11).
Orient the Cross Tube (11) as shown, withthe
welded tubes at the bottom.Attach the Cross
Tube to the Upright(3) with two M10 x 140mm
Carriage Bolts(73), two M10 Washers (75), and
two M10 Nuts (47).
4. Press a 38mm x 76mm Inner Cap (99) into the
top ofthe Front Leg (6). Press the Front Leg Foot
(27) ontothe bottom of the Front Leg. Note that
the front of the Front Leg Foot is taller than
the back.
Press a 38mm x 76mm Inner Cap (99) intothe
end of the Bench Rail (5).
Attach the Bench Rail (5), withthe hook on the
bottom,to the Front Leg (6) with two M10 x
53mm Carriage Bolts(61) and two M10 Nylon
Locknuts(76).
5. Lubricatean M10 x 103mm Bolt (66) with grease.
Attach the Bench Rail (5) to the Upright(3) with
the Boltand an M10 Nylon Looknut(76). Do not
overtlghten the Locknut; the Bench Rail must
be able to pivot easily.
Tightenthe Storage Knob (30) into the Upright(3)
and the Bench Rail (5).
73
Fron_
-TZ.'-]
75 47
Welded
11
41
99 5_ 9
--6
--27
3O
Insertthe bolt 76
throughthis hole
Lubricate
6
