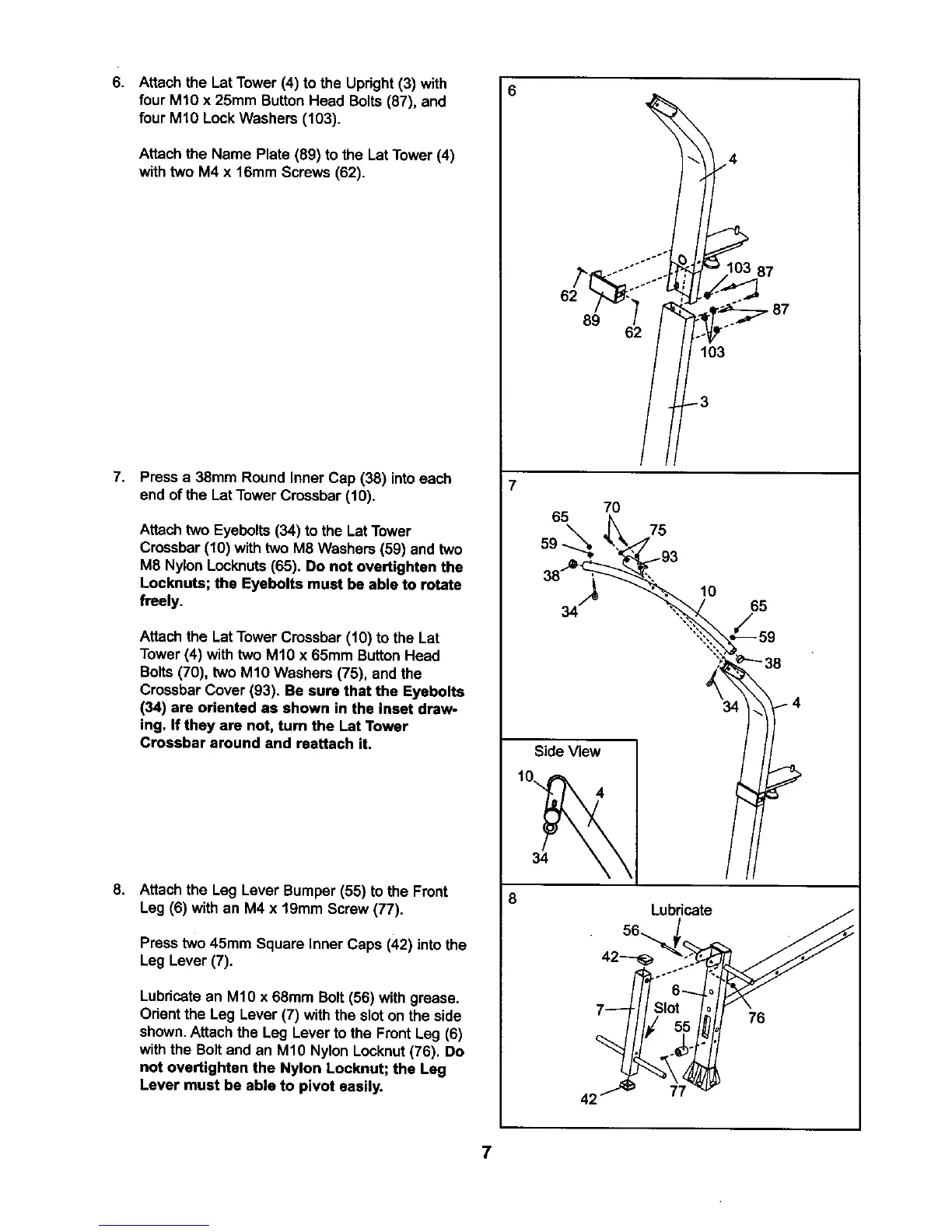

6. Attachthe Lat Tower (4) to the Upright (3) with
four M10 x 25mm ButtonHead Bolts (87), and
four M19 Lock Washers (103).
Attach the Name Plate (89) to the Lat Tower (4)
with t_o M4 x 16mm Screws (62).
7. Press a 38mm Round Inner Cap (38) into each
end of the Lat Tower Crossbar (10).
Attach twoEyebolts (34) to the Lat Tower
Crossbar(10) with two M8 Washers (59) and two
M8 NylonLocknuts(65). Do not overtighten the
Loeknuts; the Eyebolts must be able to rotate
freely.
Attachthe Lat Tower Crossbar (10) to the Lat
Tower (4) with two M10 x 65mm ButtonHead
Bolts(70), two M10 Washers (75), and the
Crossbar Cover (93). Be sure that the Eyebolts
(34) are oriented as shown in the inset drew-
ing. If they are not, turn the Lat Tower
Crossbar around and reattach it.
8. Attach the Leg Lever Bumper (55) to the Front
Leg (6) with an M4 x 19mm Screw (77).
Press two 45mm Square Inner Caps (42) into the
Leg Lever (7).
Lubricate an M10 x 68mm Bolt (56) with grease.
Orient the Leg Lever (7) with the slot on the side
shown.Attach the Leg Lever to the Front Leg (6)
with the Bolt and an M10 Nylon Locknut (76). Do
not overtighten the Nylon Locknut; the Leg
Lever must be able to pivot easily.
_. °° :
62
103
-3
70
65
75
59
10
65
Side View
8
Lubricate
76
42
7
To Next Page
