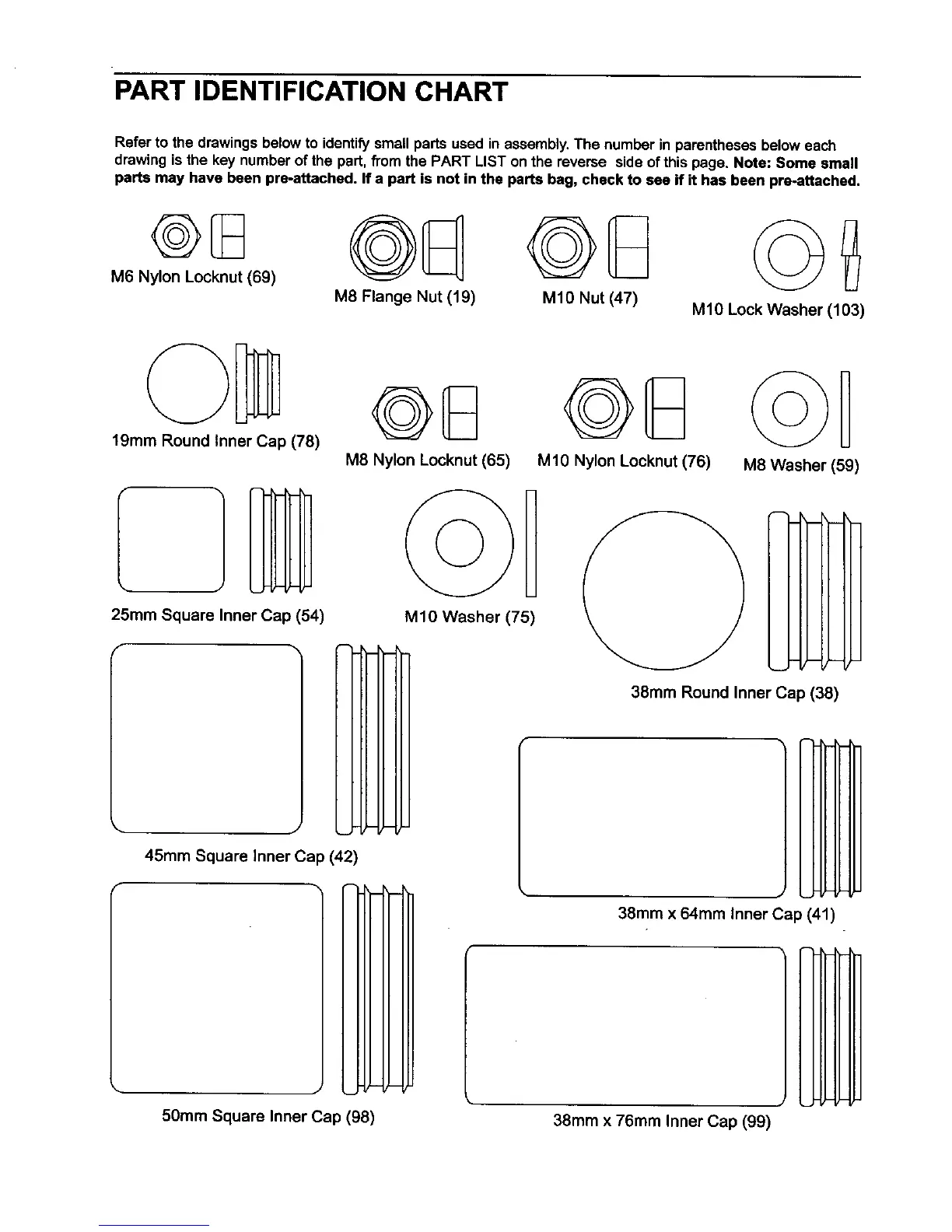

PART IDENTIFICATION CHART
Refer to the drawingsbelow to identifysmall parts used in assembly.The number in parentheses beloweach
drawingisthe key number of the part, from the PART LIST onthe reverse side of this page. Note: Some small
parts may have been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached.
@@
M6 Nylon Locknut (69)
M8 Flange Nut (19)
MI0 Nut (47)
M10 Lock Washer (103)
19ram Round Inner Cap (78)
M8 Nylon Locknut (65)
©8
M10 Nylon Locknut (76)
M8 Washer (59)
25mm Square Inner Cap (54)
45mm Square Inner Cap (42)
50mm Square Inner Cap (98)
M10 Washer (75)
38mm Round Inner Cap (38)
38mm x 64ram Inner Cap (41)
38mm x 76turn Inner Cap (99)
