Weider CROSS BOW User Manual

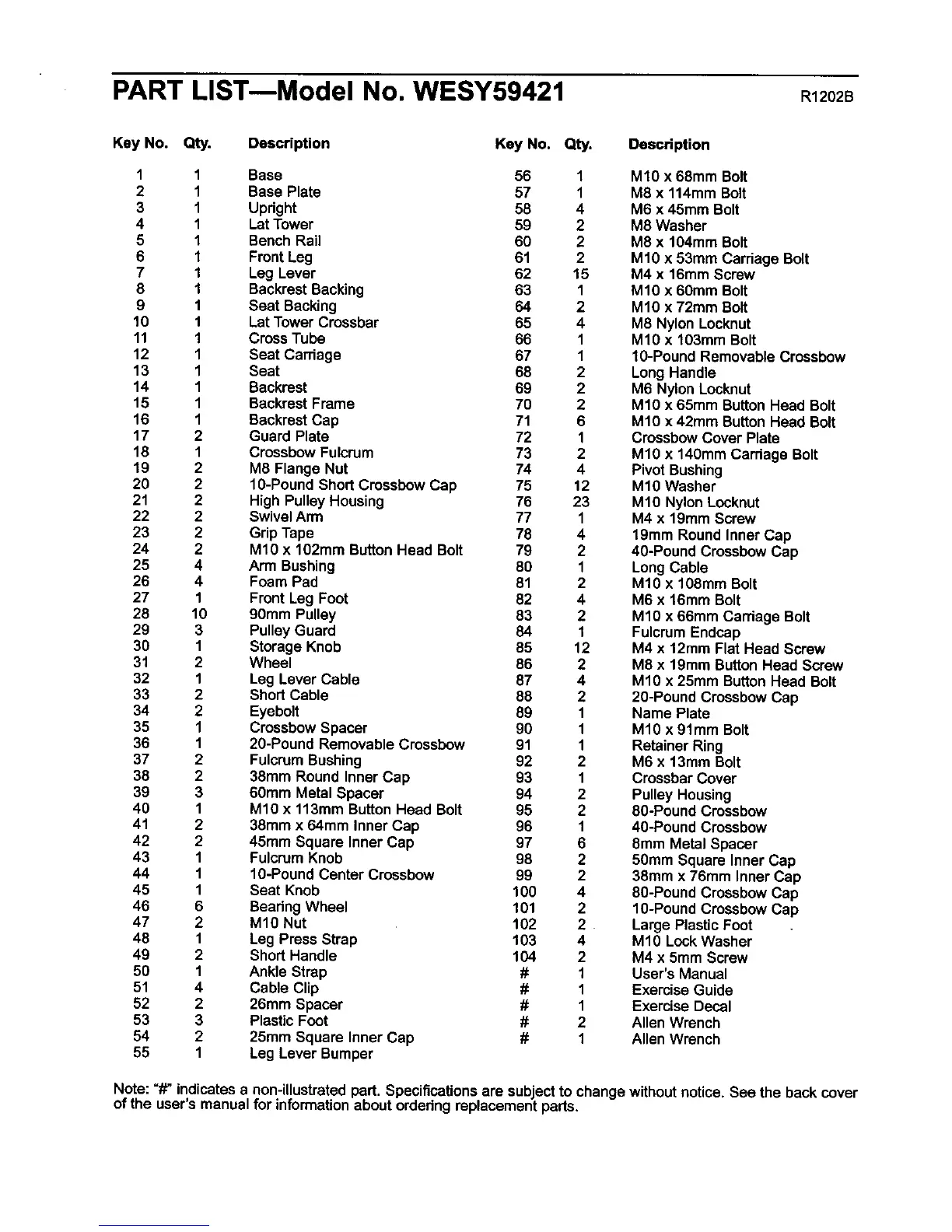

PART LISTmModel No. WESY59421 R1202B
Key No. Qty. Description Key No. Qty. Description
1 1 Base 56 1 M10 x 68mm Bolt
2 1 Base Plate 57 1 M8 x 114mm Bolt
3 1 Upright 58 4 M6 x 45mm Bolt
4 1 LatTower 59 2 M8 Washer
5 1 Bench Rail 60 2 M8 x 104mm Bolt
6 1 Front Leg 61 2 M10 x 53mm Carriage Bolt
7 1 Leg Lever 62 15 M4 x 16mm Screw
8 1 Backrest Backing 63 1 M10 x 60mm Bolt
9 1 Seat Backing 64 2 M10 x 72mm Bolt
10 1 Lat TowerCrossbar 65 4 M8 Nylon Locknut
11 1 CrossTube 66 1 M10 x 103mm Bolt
12 1 Seat Carriage 67 1 10-Pound Removable Crossbow
13 1 Seat 68 2 LongHandle
14 1 Backrest 69 2 M6 Nylon Locknut
15 1 Backrest Frame 70 2 M10 x 65mm ButtonHead Bolt
16 1 Backrest Cap 71 6 M10 x 42mm ButtonHead Bolt
17 2 Guard Plate 72 1 CrossbowCover Plate
18 1 CrossbowFulcrum 73 2 M10 x 140mm Carriage Bolt
19 2 M8 Flange Nut 74 4 Pivot Bushing
20 2 10-Pound Short CrossbowCap 75 12 M10 Washer
21 2 High PulleyHousing 76 23 M10 Nylon Locknut
22 2 Swivel Arm 77 1 M4 x 19mm Screw
23 2 Grip Tape 78 4 19mm Round Inner Cap
24 2 M10 x 102mm ButtonHead Bolt 79 2 40-Pound CrossbowCap
25 4 Arm Bushing 80 1 Long Cable
26 4 Foam Pad 81 2 M10 x 108mm Bolt
27 1 Front Leg Foot 82 4 M6 x 16mm Bolt
28 10 90mm Pulley 83 2 M10 x 66mm Carriage Bolt
29 3 PulleyGuard 84 1 FulcrumEndcap
30 1 Storage Knob 85 12 M4 x 12mm Flat Head Screw
31 2 Wheel 86 2 M8 x 19mm Button Head Screw
32 1 Leg Lever Cable 87 4 M10 x 25mm ButtonHead Bolt
33 2 Short Cable 88 2 20-Pound CrossbowCap
34 2 Eyebolt 89 1 Name Plate
35 1 CrossbowSpacer 90 1 M10 x 91mm Bolt
36 1 20-Pound Removable Crossbow 91 1 Retainer Ring
37 2 FulcrumBushing 92 2 M6 x 13mm Bolt
38 2 38mm Round Inner Cap 93 1 CrossbarCover
39 3 60ram Metal Spacer 94 2 Pulley Housing
40 1 M10 x 113mm ButtonHead Bolt 95 2 80-Pound Crossbow
41 2 38mm x 64mm Inner Cap 96 1 40-Pound Crossbow
42 2 45mm Square Inner Cap 97 6 8mm Metal Spacer
43 1 FulcrumKnob 98 2 50mm Square Inner Cap
44 1 10-Pound Center Crossbow 99 2 38mm x 76mm Inner Cap
45 1 Seat Knob 100 4 80-Pound CrossbowCap
46 6 BearingWheel 101 2 10-Pound CrossbowCap
47 2 M10 Nut 102 2 Large Plastic Foot
48 1 Leg Press Strap 103 4 M10 LockWasher
49 2 ShortHandle 104 2 M4 x 5mm Screw
50 1 Ankle Strap # 1 User's Manual
51 4 Cable Clip # 1 Exemise Guide
52 2 26mm Spacer # 1 Exercise Decal
53 3 Plastic Foot # 2 Allen Wrench
54 2 25mm Square Inner Cap # 1 Allen Wrench
55 1 Leg Lever Bumper
Note: "/f' indicatesa non-illustratedpart. Specificationsare subjectto change withoutnotice.See the back cover
of the user's manual for informationabout orderingreplacement pads.
