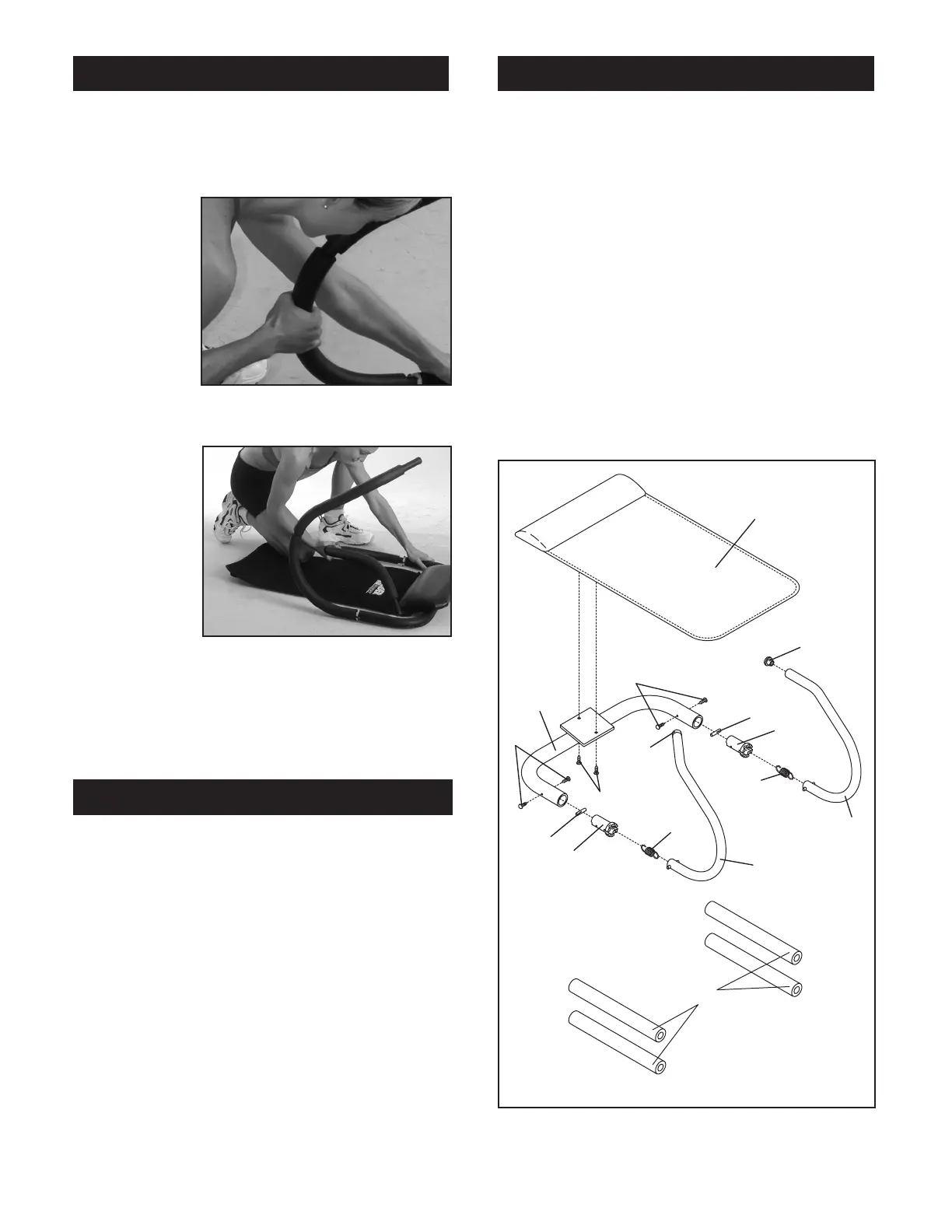

Part List/Exploded Drawing
Key No. Qty. Description
1 1 Right Handle
2 2 M6 x 16mm Screw
3 4 M4 x 12mm Button Head Screw
4 1 Left Handle
5 2 Spring
6 2 1” Round Cap
7 2 Sleeve
8 2 M6 x 34mm Pin
9 1 Frame
10 1 Exercise Mat w/Headrest
11 4 Foam Grip
# 1 User’s Manual
# 1 Training Program
Note: “#” indicates a non-illustrated part. Specifications
are subject to change without notice.
4
5
8
7
3
9
3
8
5
7
1
10
2
11
6
6
WEMC1026.6 R0711A
Storage and Maintenance
When you are not using the CRUNCH TRAINER, it can
be folded and stored. Follow the instructions below to
fold the CRUNCH TRAINER to the storage position.
1. Grip one of
the handles at
the bend with
one hand; with
the other hand,
grip the frame
just above the
joint. Firmly
pull back the
handle, so that
the locking pin
is free of the pin
groove.
2. While holding
the locking pin
free, rotate the
handle down as
shown. Rotate
the other han-
dle down in the
same way.
The CRUNCH TRAINER can be wiped clean with a
damp cloth and mild, non-abrasive detergent. Do not use
solvents.
2
1
To order replacement parts, please see page 3. To help
us assist you, be prepared to provide the following infor-
mation when contacting us:
• the model number and the serial number of the prod-
uct (see see page 3)
• the name of the product (see see page 3)
• the key number and description of the replacement
part(s) (see the PART LIST and the EXPLODED
DRAWING at the right)
Ordering Replacement Parts
8
