10

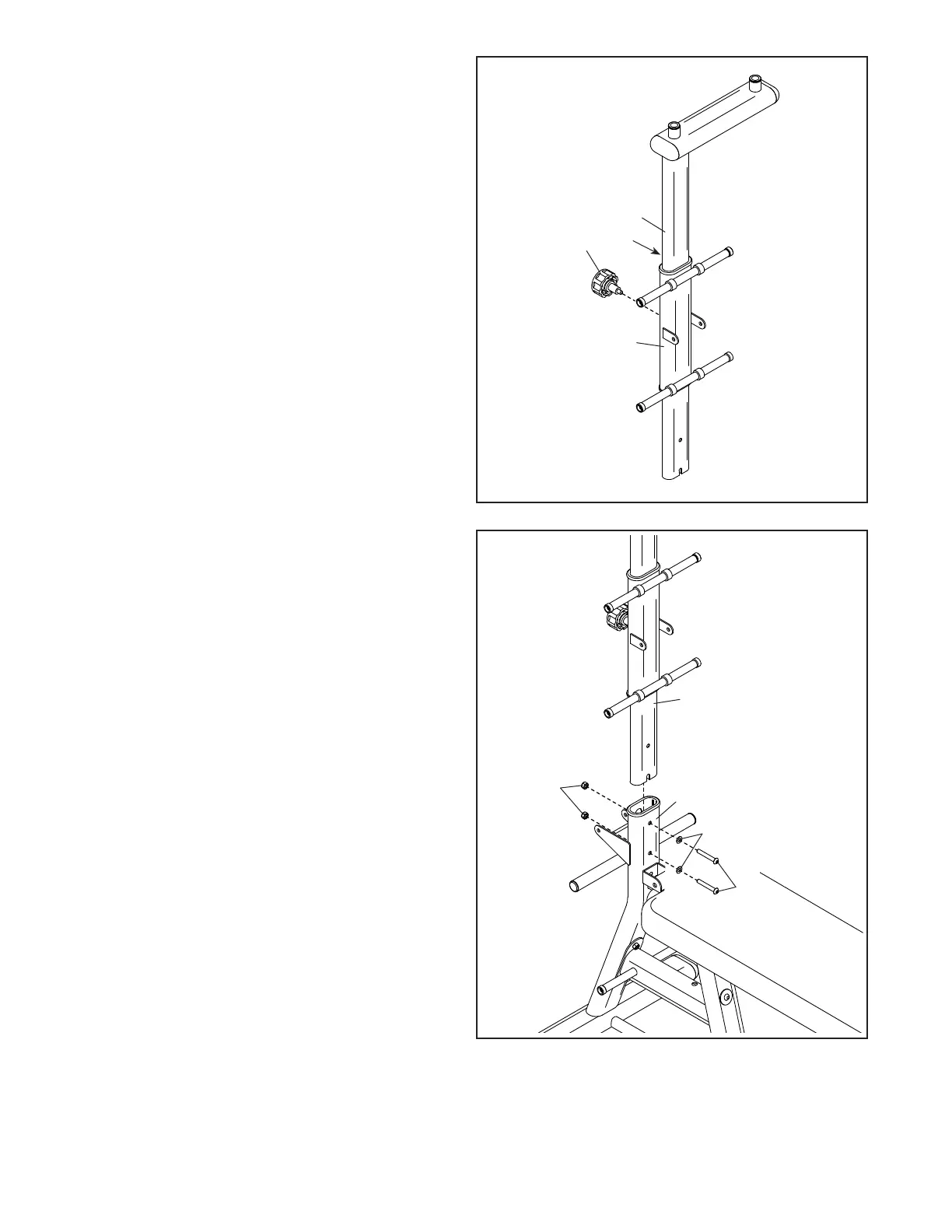

8. Hand tighten the Carriage Knob (14) into the Arm
Carriage (10); do not fully tighten the Carriage
Knob yet.
Next, slide the Arm Carriage (10) upward or
downward until the Carriage Knob (14) snaps
into the one of the adjustment holes (B) in the
Upright (8). Then, firmly tighten the Carriage
Knob.
8
14
10
8
B
9. Orient the Upright (8) as shown, and insert it into
the Upright Base (1). Attach the Upright with two
M8 x 55mm Bolts (45), two M8 Washers (41),
and two M8 Locknuts (42).
9
45
42
41
1
8
To Next Page
