11

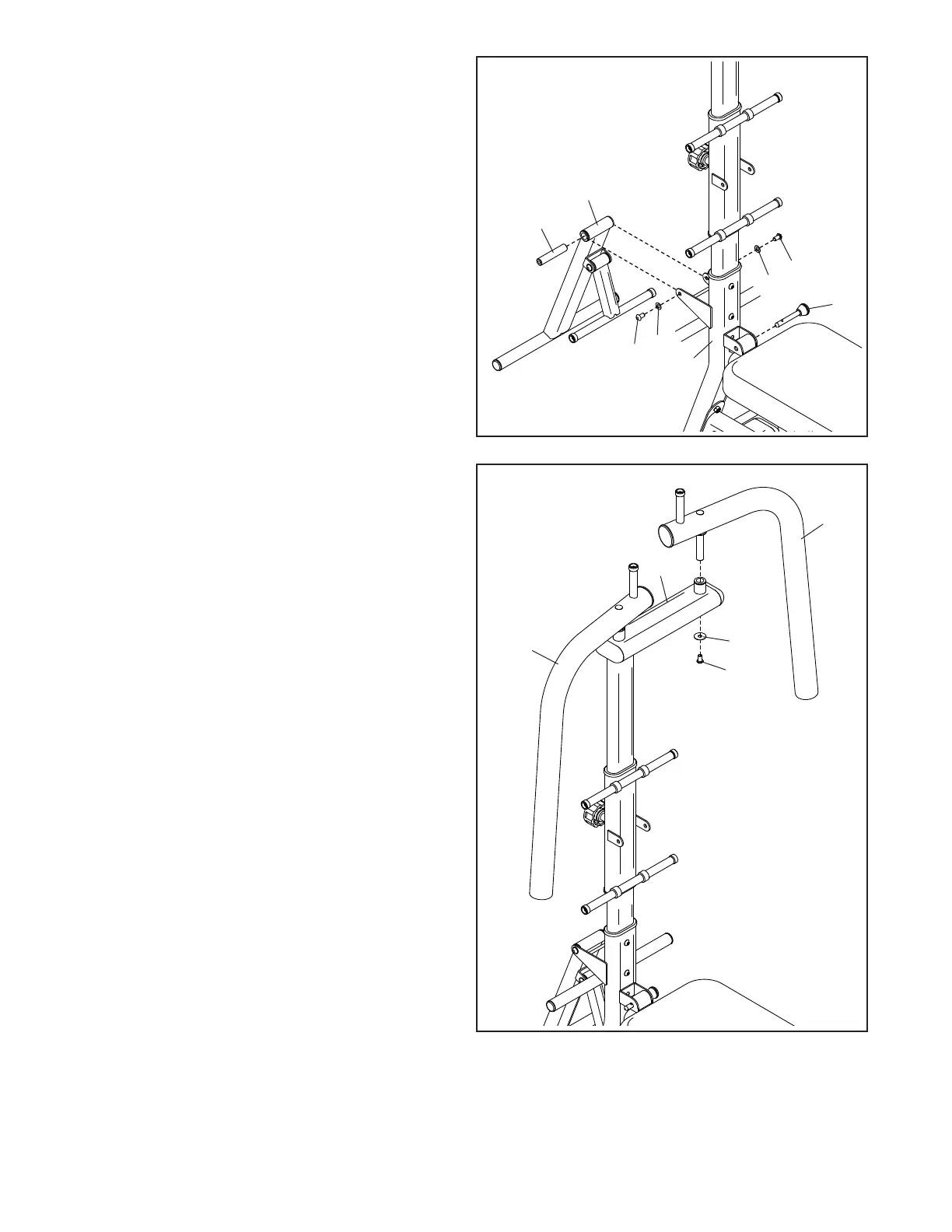

10. Insert a Long Axle (36) into the Leg Lever (6).
Next, orient the Leg Lever as shown.
Attach the Leg Lever (6) to the Upright Base
(1) with two M8 x 15mm Screws (48) and two
M8 Washers (41). Tighten both Screws at the
same time.
Then, insert the Bench Pin (33) into the Upright
Base (1) and into the Bench Frame (not shown).
10
11. Insert the axle on one of the Butterfly Arms (9)
into the Upright (8). Attach the Butterfly Arm with
an M8 x 15mm Screw (48) and an M8 x 25mm
Washer (40).
Attach the other Butterfly Arm (9) in the same
way.
11
6
36
1
33
48
40
8
9
9
48
48
41
41
