12

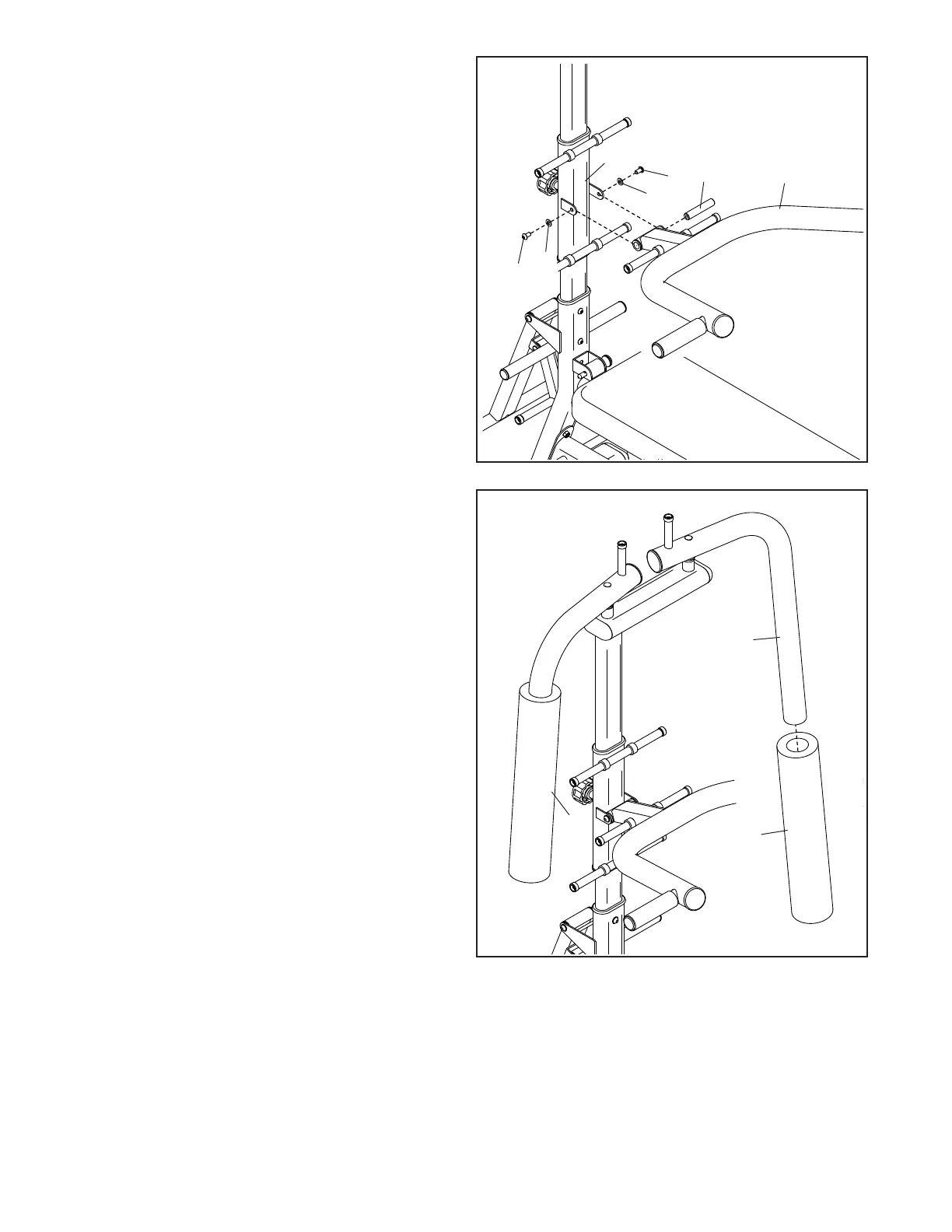

12. Insert a Long Axle (36) into the Press Arm (11).
Attach the Press Arm (11) to the Arm Carriage
(10) with two M8 x 15mm Screws (48) and two
M8 Washers (41). Tighten both Screws at the
same time.
12
13. Wet one of the Butterfly Arms (9) with a small
amount of soapy water. Then, slide a Butterfly
Pad (15) onto the Butterfly Arm.
Attach the other Butterfly Pad (15) in the
same way.
13
36
10
11
15
15
9
48
41
48
41
