8

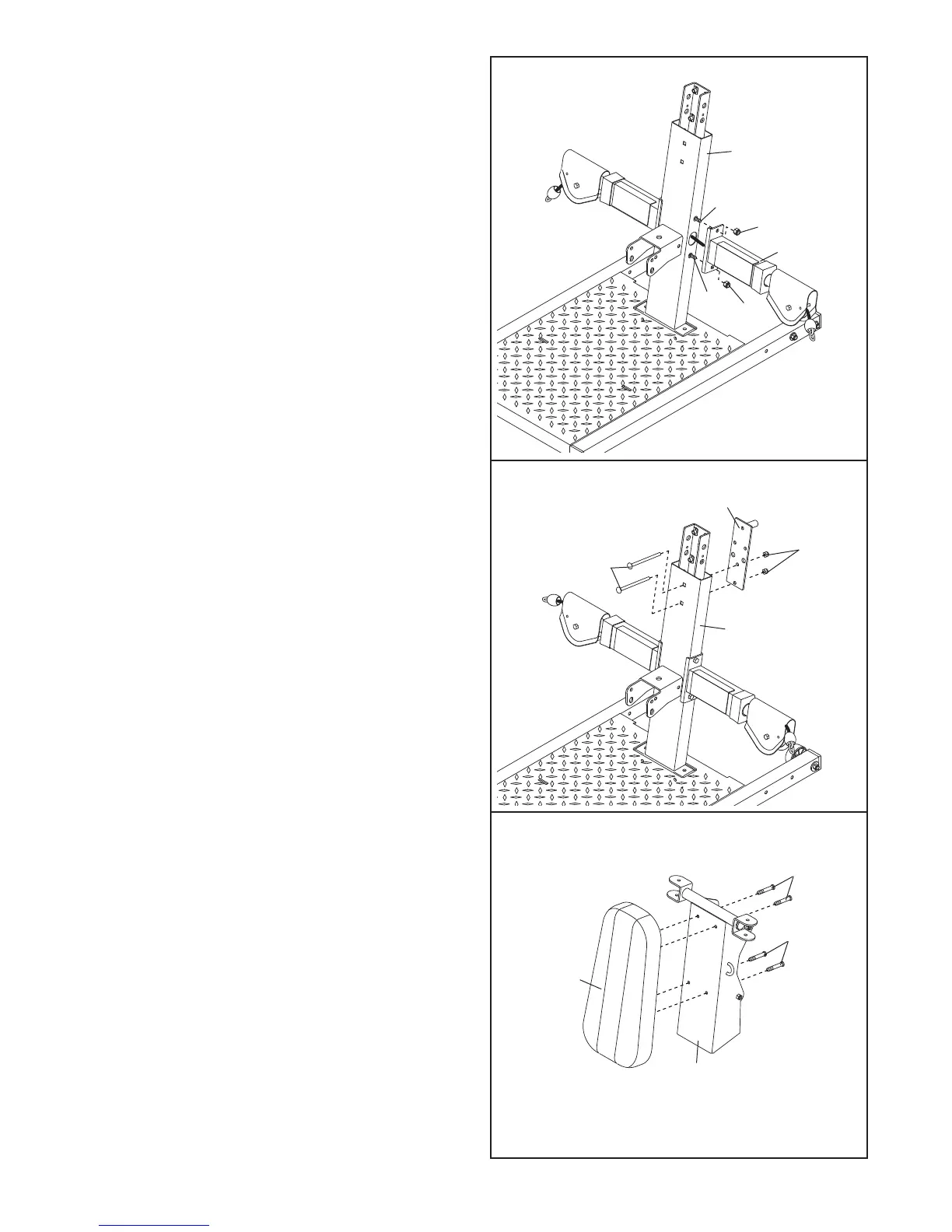

6. Attach the Backing Plate (59) to the Upright Base
(2) with two M10 x 65mm Carriage Bolts (103)
and two M10 Nylon Locknuts (112). Do not tight-
en the Locknuts yet.
5
103
112
2
5. Remove the two M14 Nylon Locknuts (127).
Attach the Left Arm Frame (8) to the Upright Base
(
2) with the two M14 x 155mm Bolts (107) used in
step 2 and the two M14 Nylon Locknuts.
127
127
1
07
8
107
2
59
7.
Attach the Squat Backrest (28) to the Squat
Carriage (10) with four M6 x 16mm Screws (108).
6
10
28
108
108
7
To Next Page
