Weider Pro 120 Bench User Manual

7

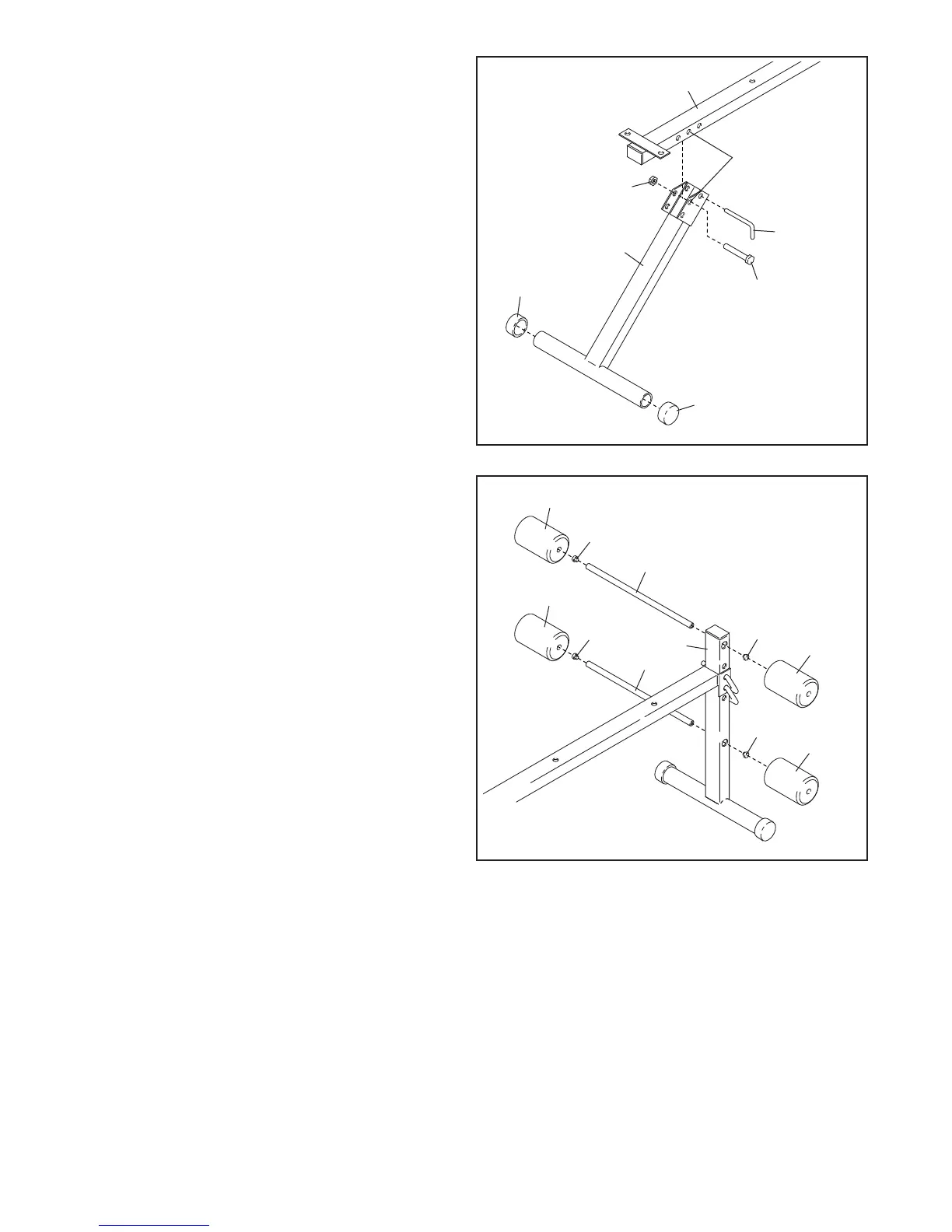

2. Press two 50mm Round Outer Caps (9) onto
the Pivot Leg (2).
A
lign the indicated hole in the Pivot Leg (2) with
the middle adjustment hole in the Frame (1).
Attach the Pivot Leg (2) to the Frame (1) with
the M10 x 70mm Bolt (14) and the M10 Locknut
(13).
Secure the Pivot Leg (2) by inserting the L-pin
(15) through the indicated hole in the Pivot Leg
and the corresponding hole in the Frame (1).
3. Press the 3/4" Round Inner Caps (7) into the
ends of the Pad Tubes (10).
Insert the Pad Tubes (10) into the Adjustment
Leg (3).
Slide the Foam Pads (6) onto the Pad Tubes
(10).
2
3
1
1
3
2
9
9
14
Align these
holes
6
10
6
3
7
7
6
10
6
7
7
15
