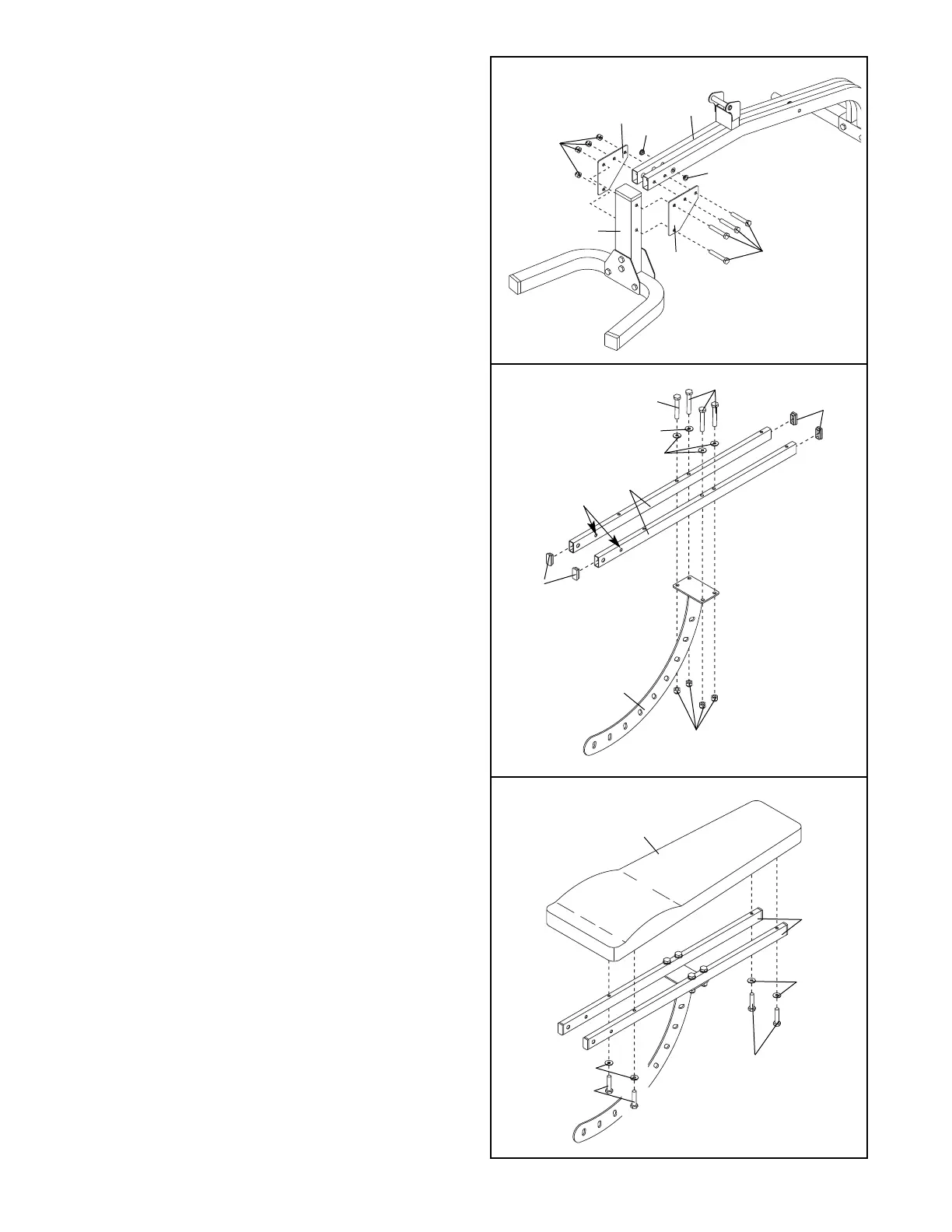

5. Attach the Backrest (10) to the Backrest Frames
(6) with four M6 x 53mm Screws (29) and four M6
Washers (37). Note: If the four Bolts will not
insert into the Backrest properly, go back to
step 4 and readjust the Backrest Frames.
4. Press four 20mm x 40mm Inner Caps (20) into
the ends of the two Backrest Frames (6).
Attach the Backrest Frames (6) to the Backrest
Bracket (9) with four M10 x 58mm Bolts (73), four
M10 Washers (74), and four M10 Nylon Locknuts
(32). Make sure the Backrest Frames are ori-
ented as shown. The Backrests Frames must
be parallel, with the indicated holes aligned.
3
4
5
39
34
34
39
2
4
32
18
74
74
73
73
32
37
29
37
29
6
10
20
20
6
Holes
9
3. Press two Bushings (34) into the Bench Frame
(2).
Attach the Bench Frame (2) to the Front Leg (4)
with four M10 x 94mm Bolts (18), two Joint Plates
(39), and four M10 Nylon Locknuts (32). Do not
tighten the Locknuts yet.
