21

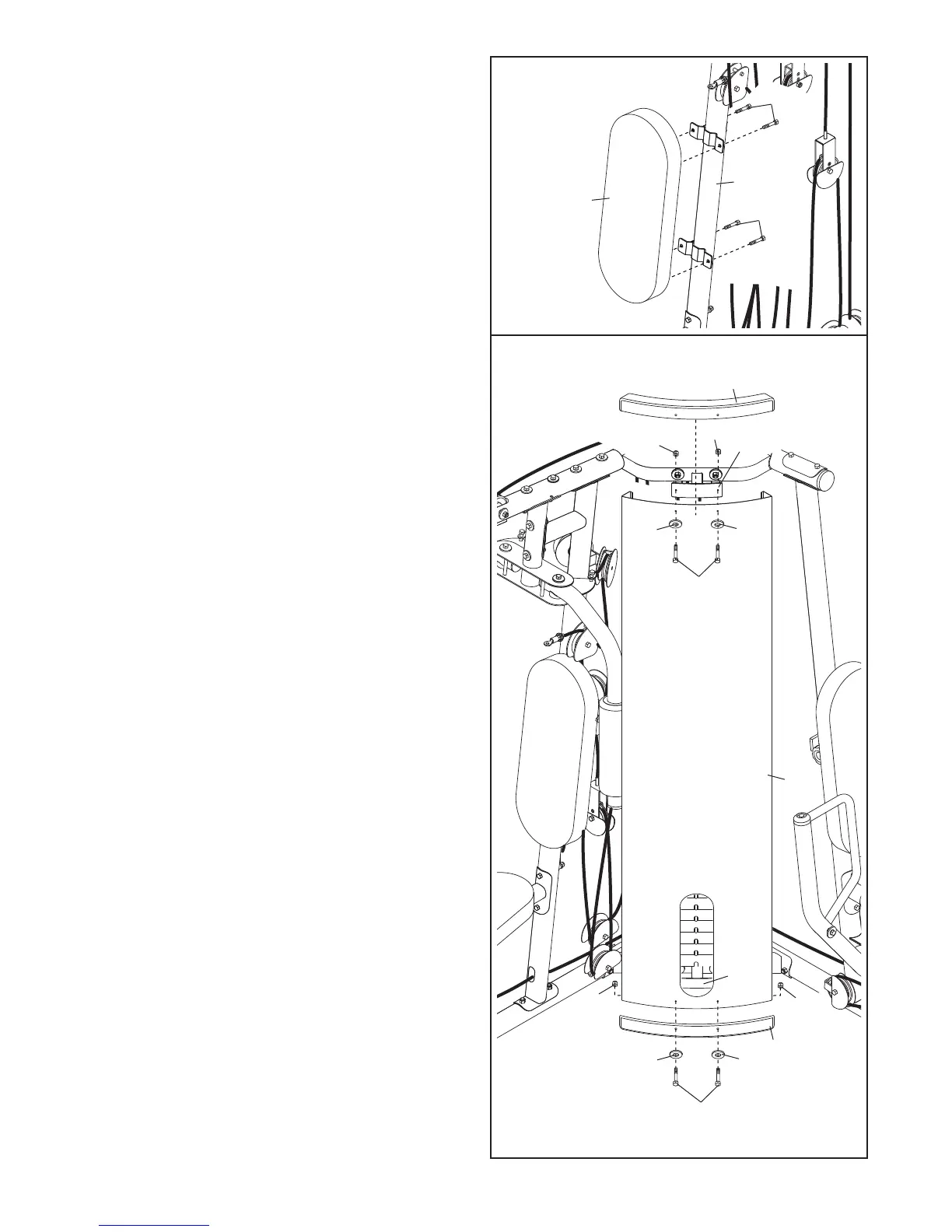

59. Attach the Butterfly Backrest (9) to the Right
Upright (2) with four M6 x 16mm Screws (88).
60. Press the two Shroud Covers (11) onto the
Shroud (10). Attach the Shroud to the Right Top
Frame (5) and the Center Base (52) with four M6
x 22mm Bolts (87), four M6 Washers (97), and
four M6 Nylon Locknuts (92).
Be careful not to
scratch yourself when reaching through the
hole in the Shroud.
59
60
2
9
88
88
87
97
97
92
92
11
10
5
87
97
97
92
92
11
52
