Weider Pro 455 - Part Identification Chart

5

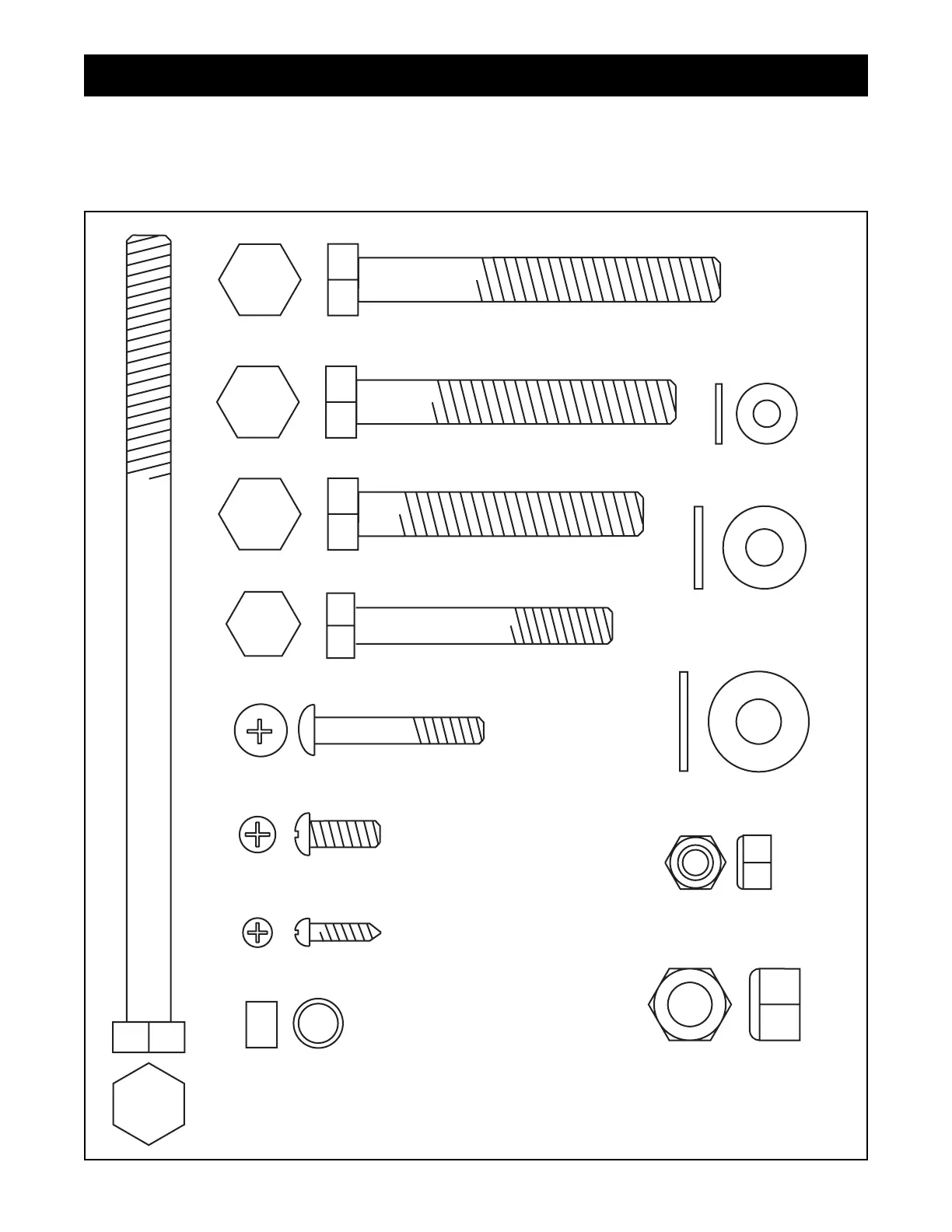

This chart is provided to help you identify the small parts used in assembly. The number in parentheses below
each part refers to the key number of the part. The second number refers to the quantity needed for assembly.
Important: Some parts may have been pre-assembled for shipping purposes. If you cannot find a part in
the parts bags, check to see if it has been pre-assembled.
M10 x 81mm Bolt (35)Ñ10
M8 x 58mm Bolt (39)Ñ1
Spacer (37)Ð1
M6 x 16mm Screw (15)Ñ6
M6 x 38mm Screw (16)Ñ4
M10 x 178mm Bolt (17)Ñ1
M10 x 65mm Bolt (18)Ñ2
M4 x 16mm Screw (34)Ñ4
M8 Nylon Locknut (13)Ñ1
M8 Washer (38)Ñ2
M10 Nylon Locknut (19)Ñ14
M6 Washer (25)Ñ4
M10 Washer (24)Ñ4
M10 x 72mm Bolt (40)Ñ1
Part Identification Chart
